Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Diagrams (By Ground Number) >> G146

G146

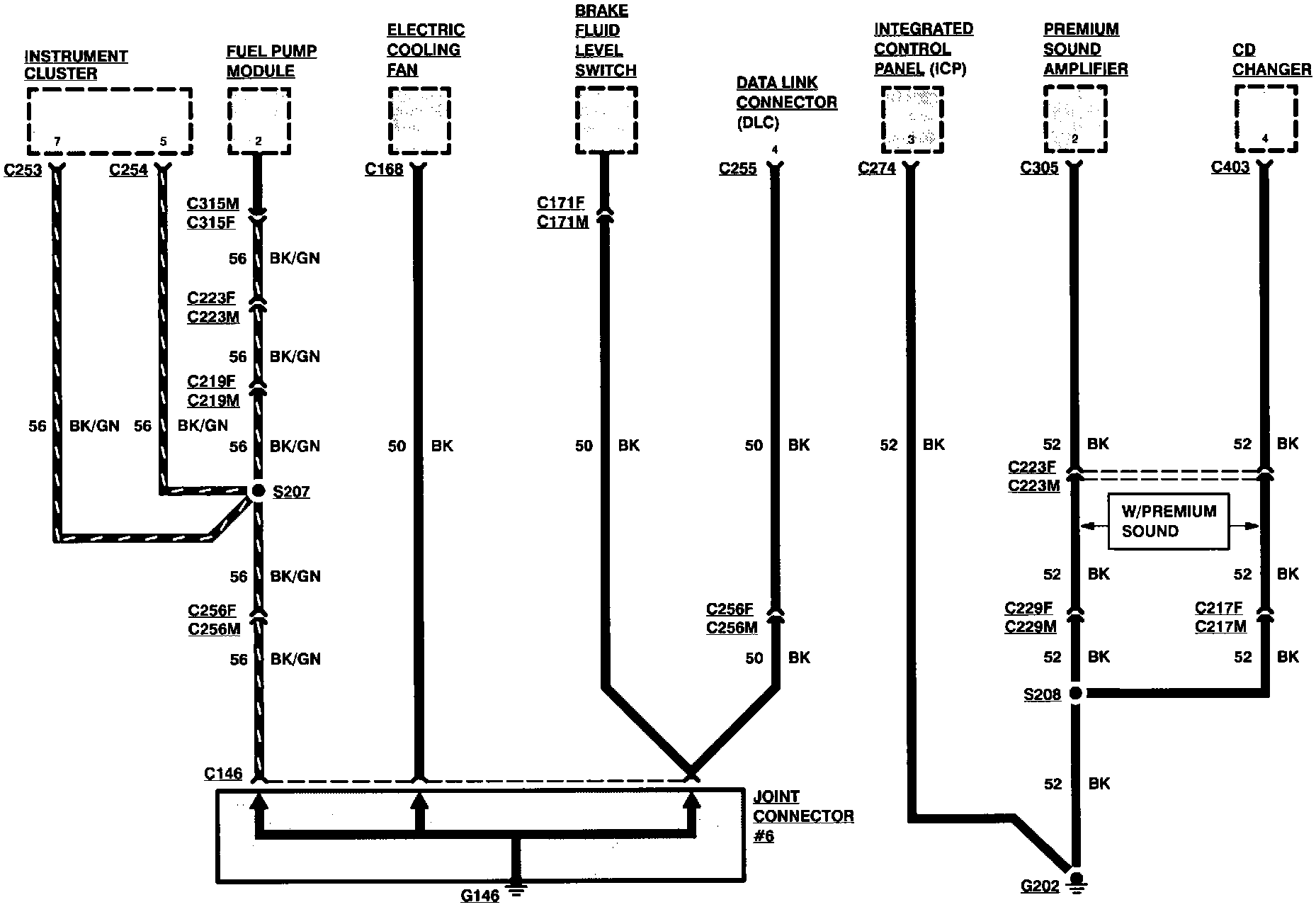

Grounds (G146 & G202):
