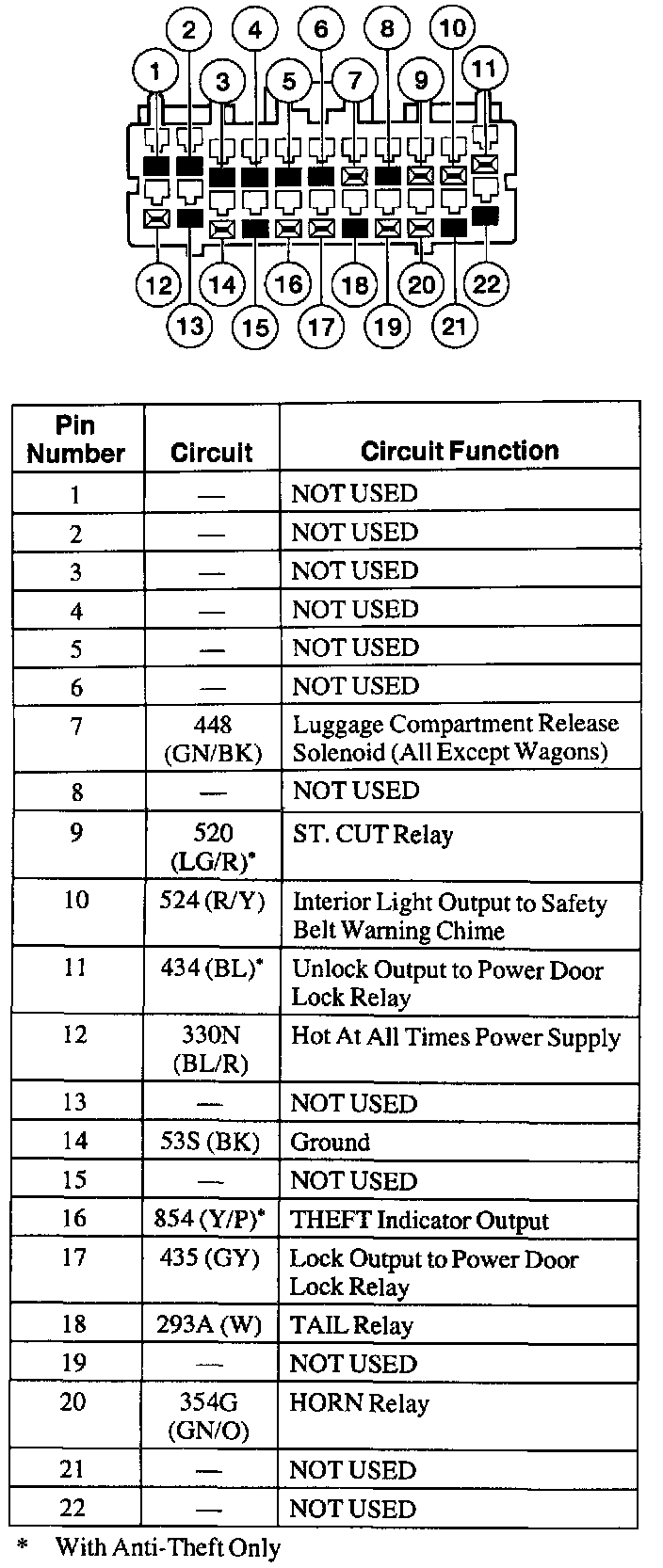

Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> System Diagram >> Driver Door Only System >> Remote Anti-Theft Personality (RAP) Module Connector >> C2

C2
