Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Standard

Standard

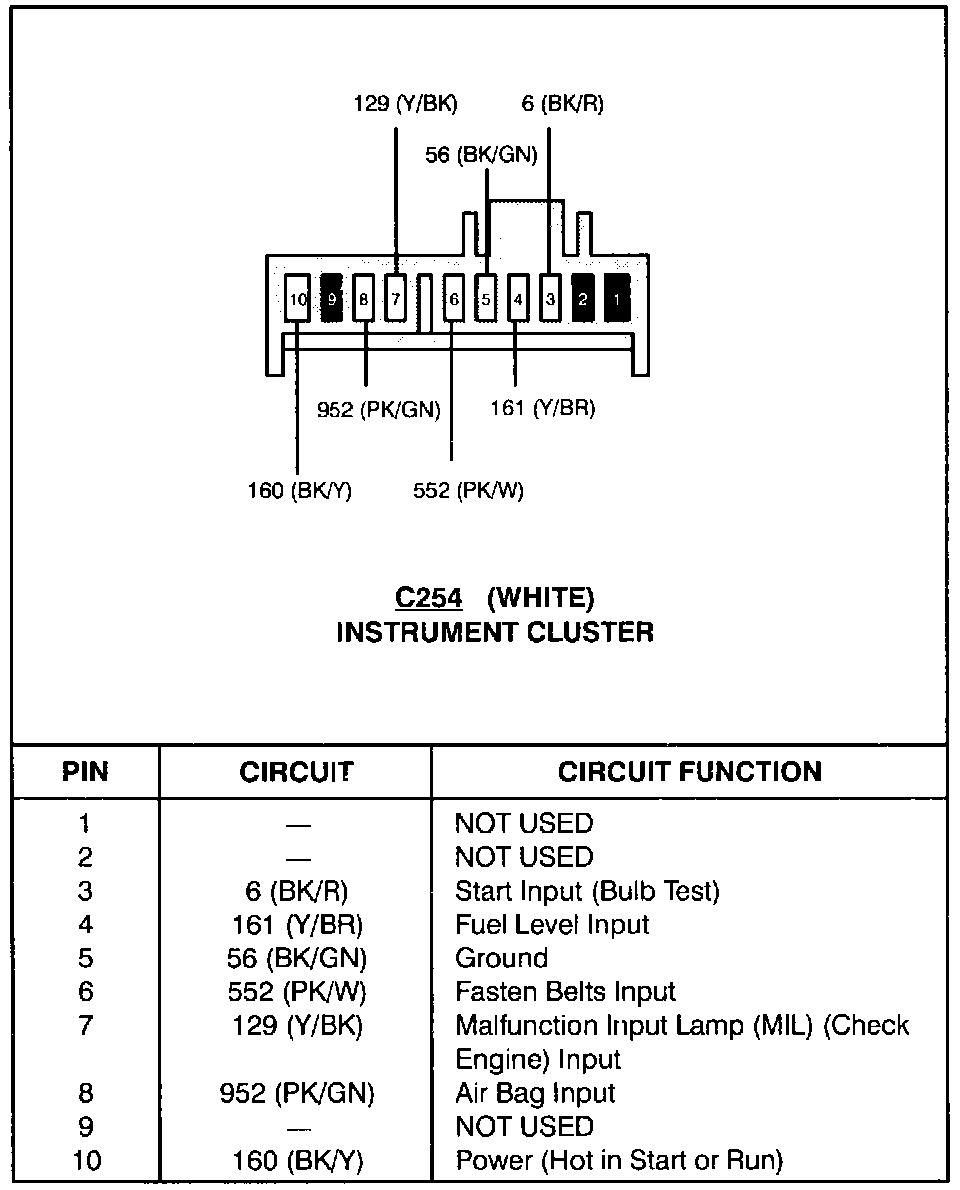

Instrument Cluster (C254):

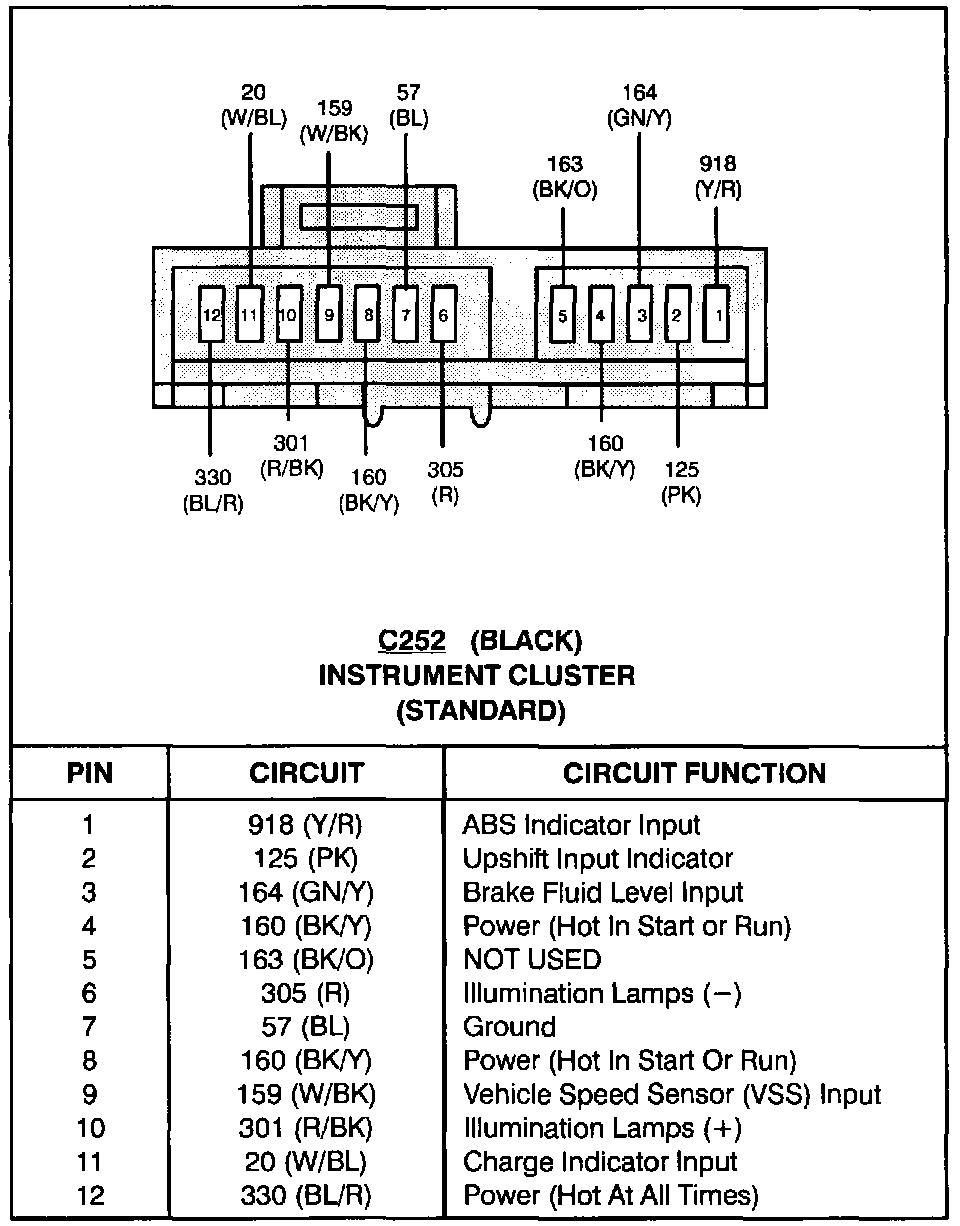

Instrument Cluster (Standard) (C253):

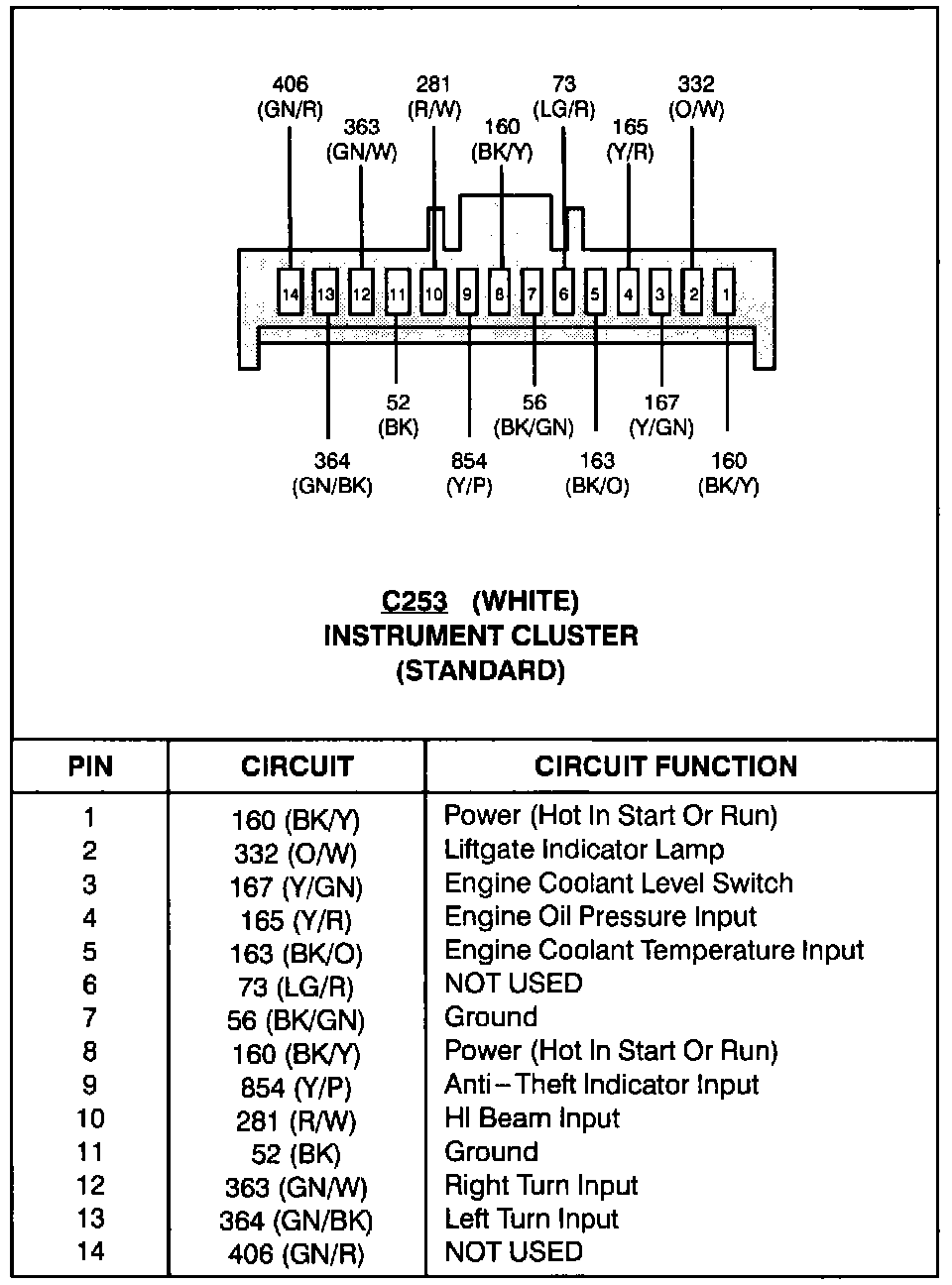

Instrument Cluster (Standard) (C252):

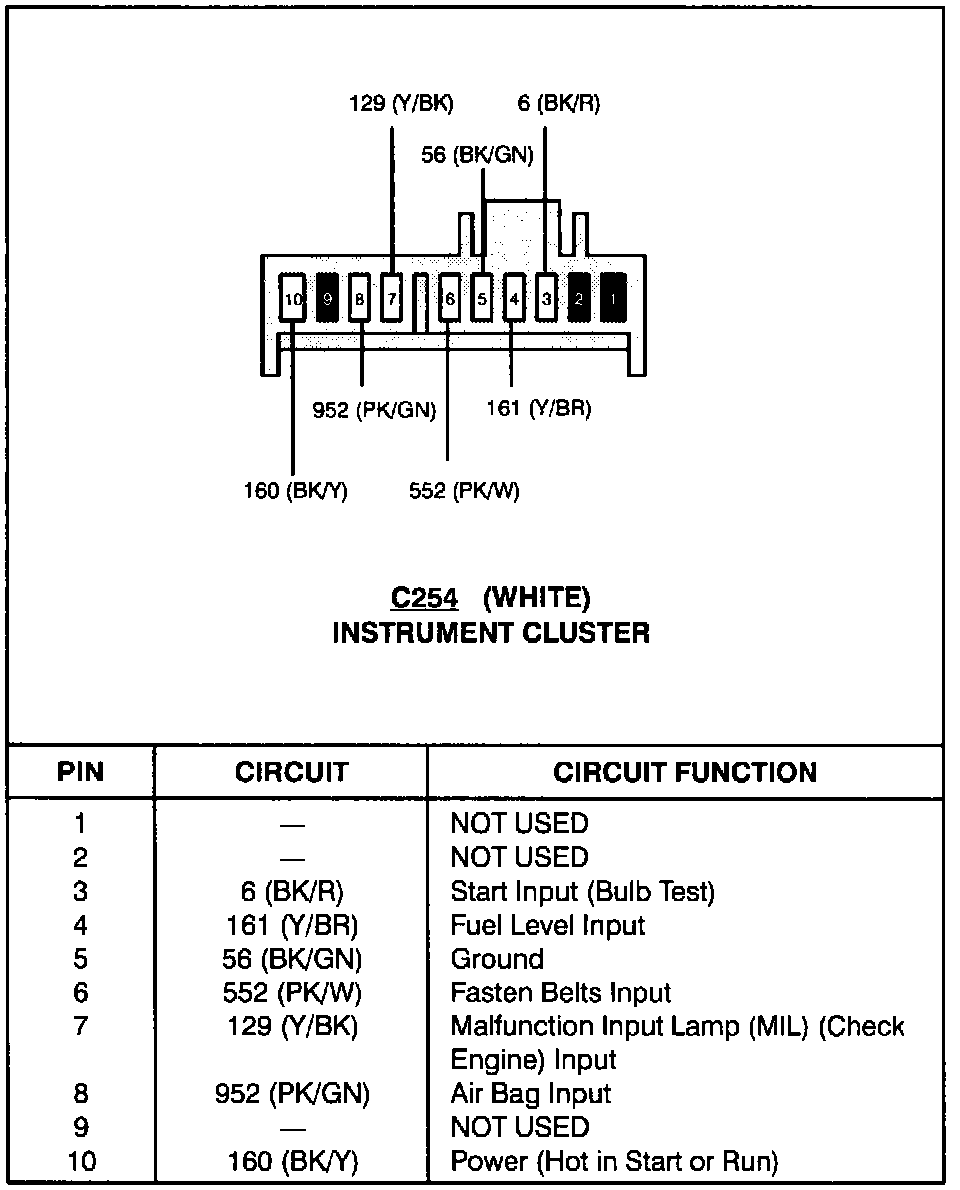

Instrument Cluster (C254):
