Cruise Control Servo Cable: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.







2. Disconnect the (A) speed control cable from the (B) throttle control lever and remove the (C) bolt from the (D) bracket.







3. Remove the cable retaining clip.







4. Compress the (A) cable housing retainer and rotate the (B) cable housing.

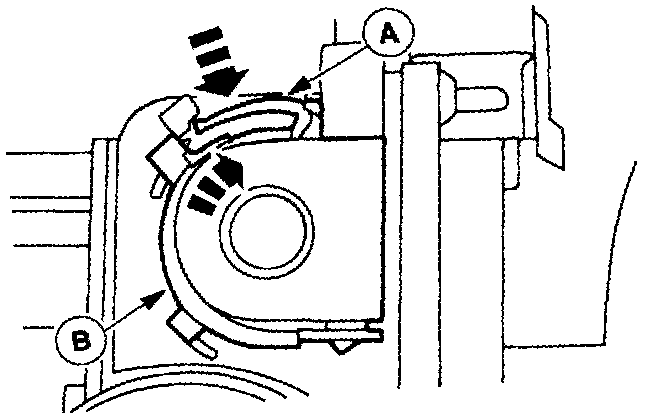

5. Slide the (A) cable end from the (B) servo cable actuator groove.

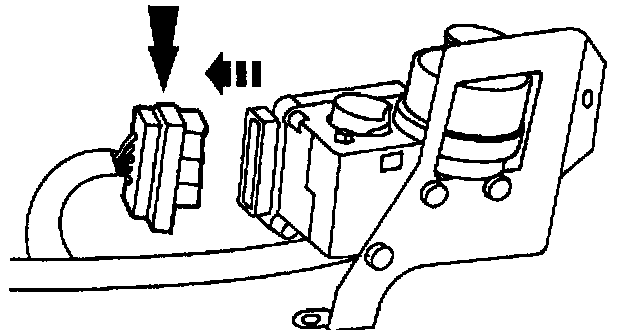

6. Disconnect the speed control servo electrical connector.

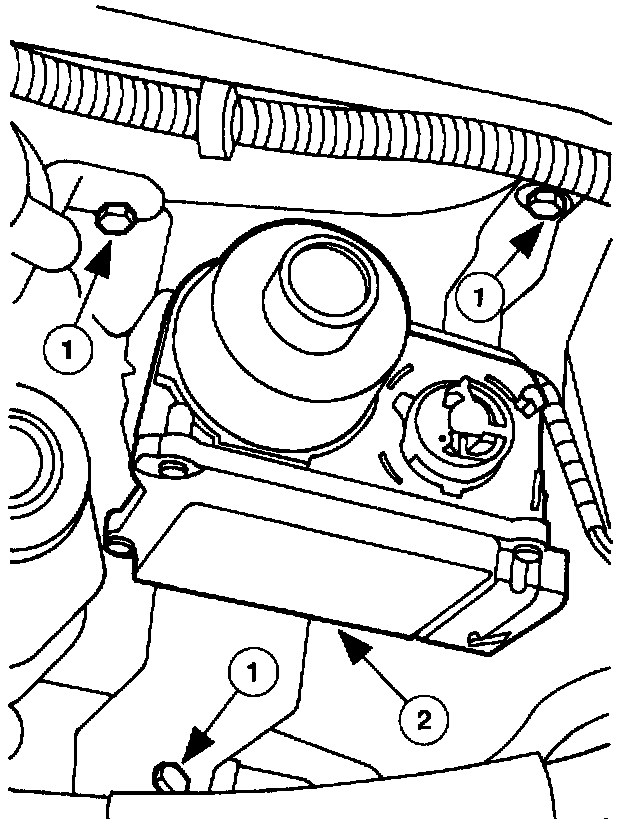

7. Remove the speed control servo assembly.

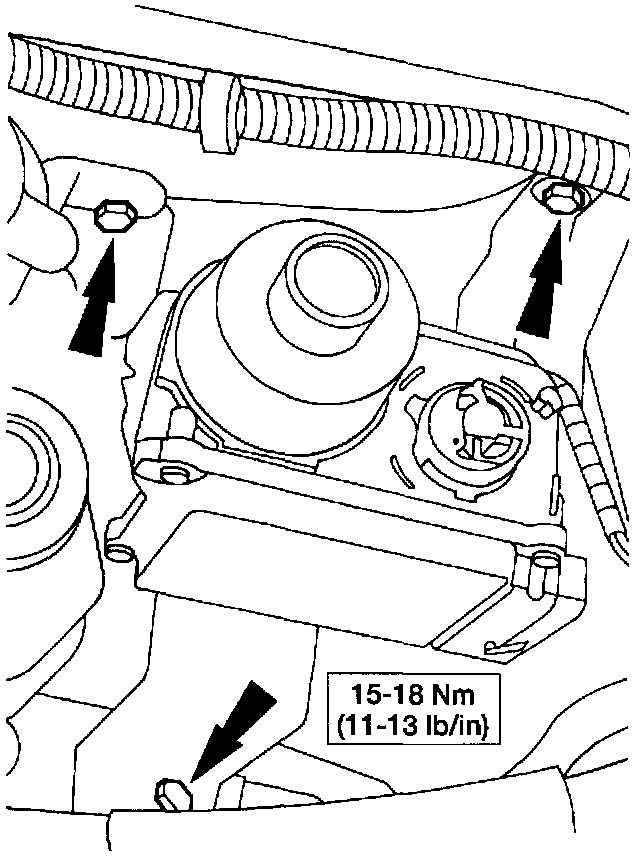

1. Remove the three bolts.
2. Remove the speed control servo.

INSTALLATION

















1. To install, reverse the removal procedure.
