Rear

REMOVAL
1. Disconnect the battery ground cable.
2. Disconnect the rear brake anti-lock sensor electrical connector.
3. Remove the rear brake anti-lock sensor grommet.





4. Disconnect the rear brake anti-lock sensor wire from the upper harness clip.
5. Disconnect the rear brake anti-lock sensor wire from the lower harness clip.

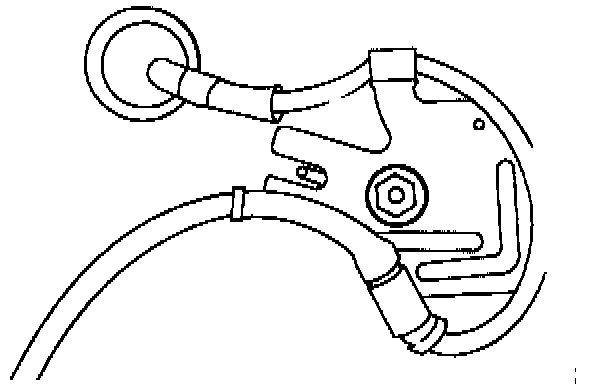

6. Remove the rear brake anti-lock sensor bolt.
7. Remove the rear brake anti-lock sensor.

INSTALLATION
NOTE: Tighten sensor bolt to 19-25 Nm (14-18 ft. lbs.)
^ To install, reverse the removal procedure.
^ Bleed the brake system.
