Brake Fluid Reservoir

REMOVAL
WARNING: BRAKE FLUID CONTAINS POLYGLYCOL ETHERS AND POLYGLYCOLS. AVOID CONTACT WITH EYES. WASH HANDS THOROUGHLY AFTER HANDLING. IF BRAKE FLUID CONTACTS EYES, FLUSH EYES WITH RUNNING WATER FOR 15 MINUTES. GET MEDICAL ATTENTION IF IRRITATION PERSISTS. IF TAKEN INTERNALLY, DRINK WATER AND INDUCE VOMITING. GET MEDICAL ATTENTION IMMEDIATELY.

1. Raise and support the hood.
2. Disconnect the battery ground cable.
3. Disconnect the brake fluid level warning switch electrical connector.
4. Remove the brake master cylinder reservoir cap.
5. On M/T vehicles, disconnect the hydraulic clutch tube from the brake master cylinder reservoir.
6. Use a suitable suction device to drain the brake master cylinder reservoir. Discard fluid.

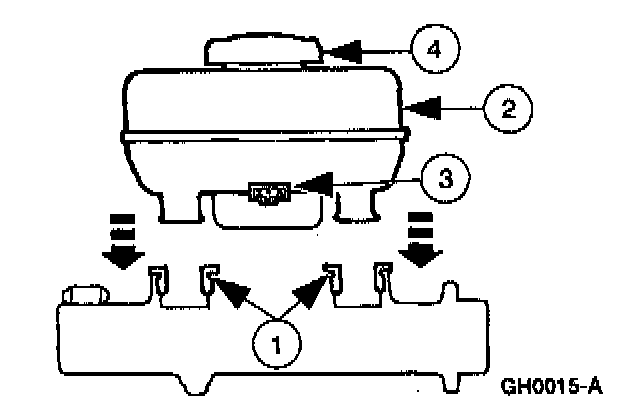

7. Carefully pry up on the brake master cylinder reservoir to remove.

INSTALLATION
NOTE: Whenever replacing the brake master cylinder reservoir, replace the grommets.

1. Lubricate the two new grommets with High Performance DOT 3 Brake fluid and insert the grommets into the brake master cylinder.
2. Press the brake master cylinder reservoir into the grommets until it snaps in securely.
3. Connect the brake master cylinder fluid level warning switch electrical connector.
4. Reconnect the battery.
5. Fill the brake master cylinder with High Performance DOT 3 Brake Fluid.
