Removal and Installation

REMOVAL
1. Raise and support the vehicle.
2. Remove the lug nuts and the wheel and tire assembly.
3. Remove the parking brake bracket bolt and place the bracket and cable aside.





4. Remove the adjuster screw plug.





5. Turn the brake adjuster screw counterclockwise to pull the piston fully inward.
6. Remove the banjo bolt and the brake hose and discard the two copper washers.
7. Remove the lower brake caliper bolt.

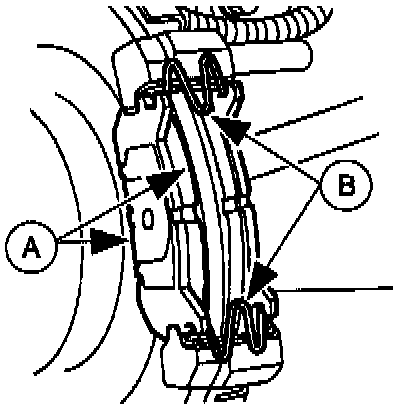

Calliper, Rear. M-Springs:

8. Remove the (A) brake pads and the two (B) M-springs.
9. Slide the rear disc brake caliper off the rear disc support bracket.

INSTALLATION
NOTE: Tighten the lug nuts in the specified sequence.
NOTE: Tighten the lug nuts to 89-117 Nm (66-86.7 ft.lbs.)
NOTE: Tighten lower brake caliper bolt to 45-59 Nm (33-43 ft.lbs).
NOTE: Tighten adjuster screw plug to 12-16 Nm (9-12 ft.lbs).

To install, reverse the removal procedure.
