Removal and Installation

REMOVAL
1. Raise and support the vehicle.
2. Remove the lug nuts and the wheel and tire assembly.
3. Remove the two screws and the brake drum.

NOTE: If new rear brake shoes and linings are being installed, resurface the brake drums to remove glazing and to ensure an equal friction surface from side-to-side. Resurfacing will also correct out-of-round and bell conditions.

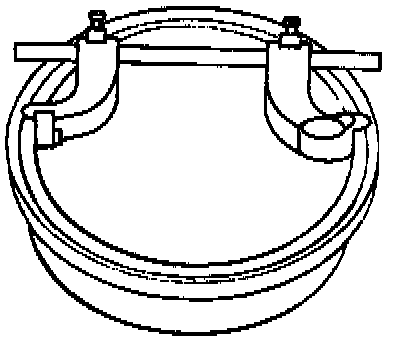

Using Brake Drum Micrometer:

1. Use a brake drum micrometer to measure the braking surface diameter. If it has worn more than the maximum diameter, shown on the outside of the brake drum, replace the brake drum.

INSTALLATION
NOTE: Tighten the lug nuts in the specified sequence

To install, reverse the removal procedure.
