Rear Side Seat

REMOVAL
1. Remove the rear seat cushion assembly.

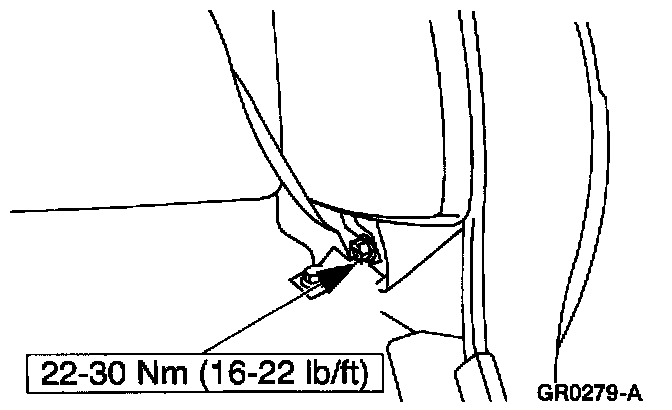

2. Remove the rear side seat nut.
3. Lower the rear seat back assembly.
4. Lift the rear side seat to disengage the upper mounting tang and remove from vehicle.







INSTALLATION
1. To install, reverse the removal procedure.
