Back Assembly

DISASSEMBLY

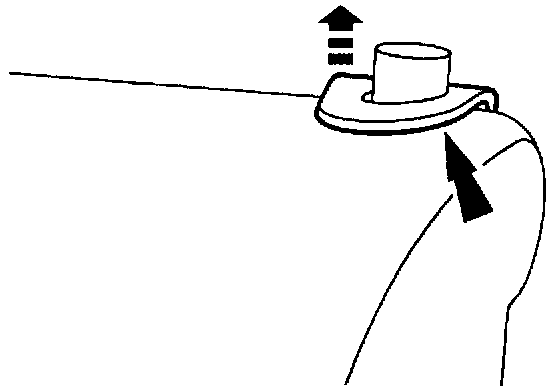

1. Remove the rear seat back release knob bushing.

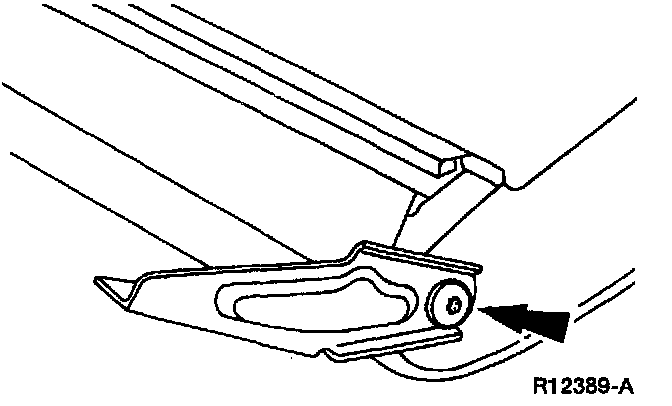

2. Remove the two rear seat back outer pivot bolts and the rear seat back outer pivot from each side of the rear seat back.







3. Unclip the J-retainer and remove the rear seat back cover.
4. Remove the rear seat back pad.







ASSEMBLY
1. To assemble, reverse the disassembly procedure.
