Power Door Lock Relay: Service and Repair

REMOVAL

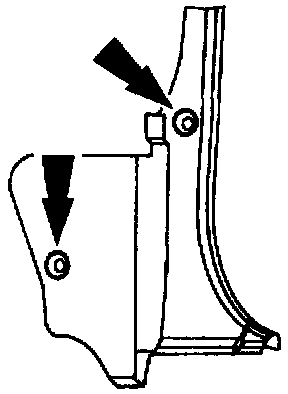

1. Remove the RH cowl side trim panel.

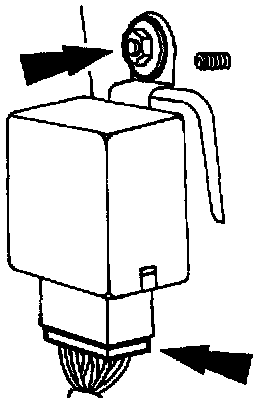

2. Remove the power door lock relay nut and disconnect the electrical connector and remove.







INSTALLATION
1. To install, reverse the removal procedure.
