Front Door

REMOVAL







1. Disconnect the battery ground cable.
2. Remove the front door trim panel.







3. Remove the screw from the door pull bracket.

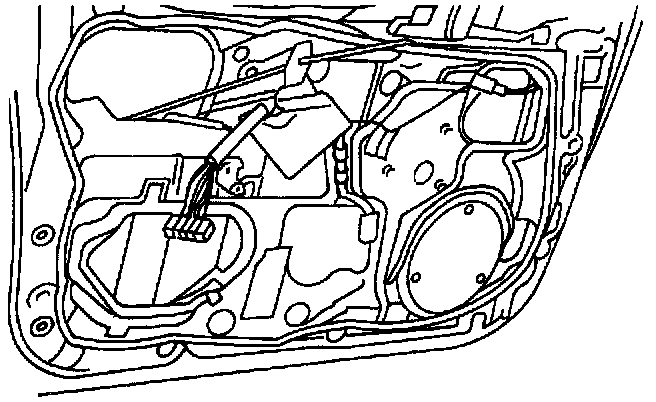

4. Remove the watershield.

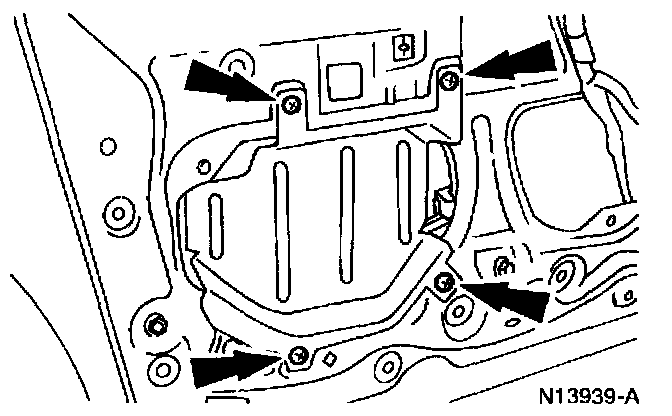

5. Remove the four screws and remove the access cover.







6. Detach the actuator rod retainer.







7. Remove the two actuator nuts and disconnect the electrical connector.












INSTALLATION
1. To install, reverse the removal procedure.
