Integrated Control Panel (ICP)

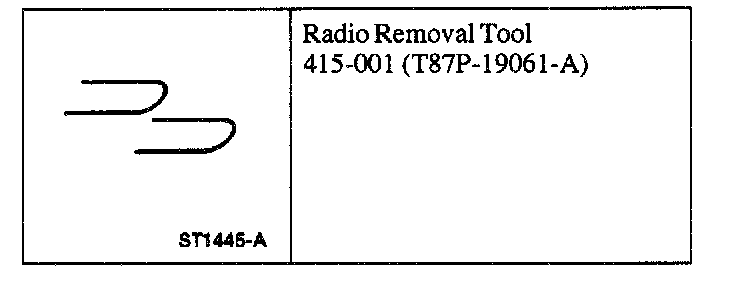

Radio Removal Tool:

Special Tools

REMOVAL






1. Disconnect the battery ground cable.

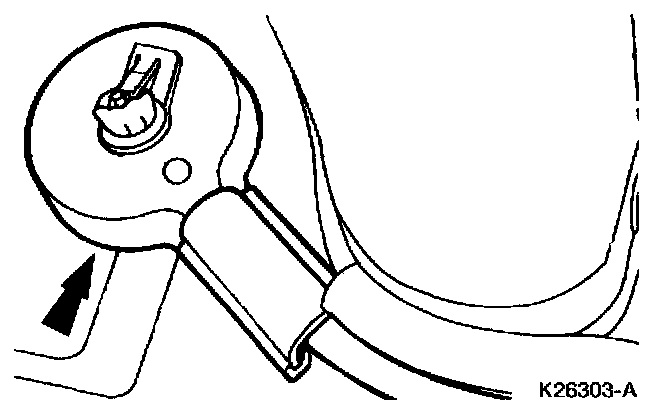

2. Disconnect the heater temperature cable.

NOTE: Rotate the temperature control switch to the cold position.

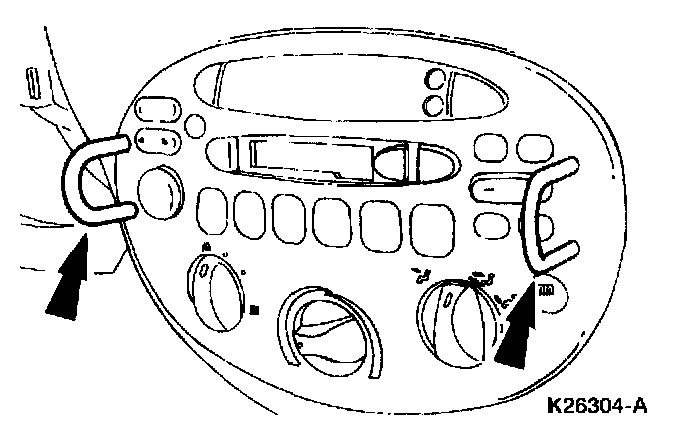

3. Use Radio Removing Tool T87P-19061-A to pull the Integrated Control Panel (ICP) out of the instrument panel.

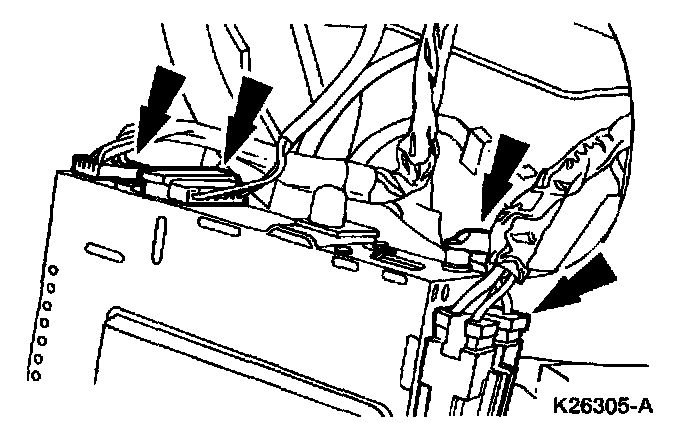

4. Disconnect the radio antenna lead in cable and the electrical connectors and remove the ICP.

INSTALLATION






1. To install, reverse the removal procedure.
