Trunk / Liftgate Solenoid: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

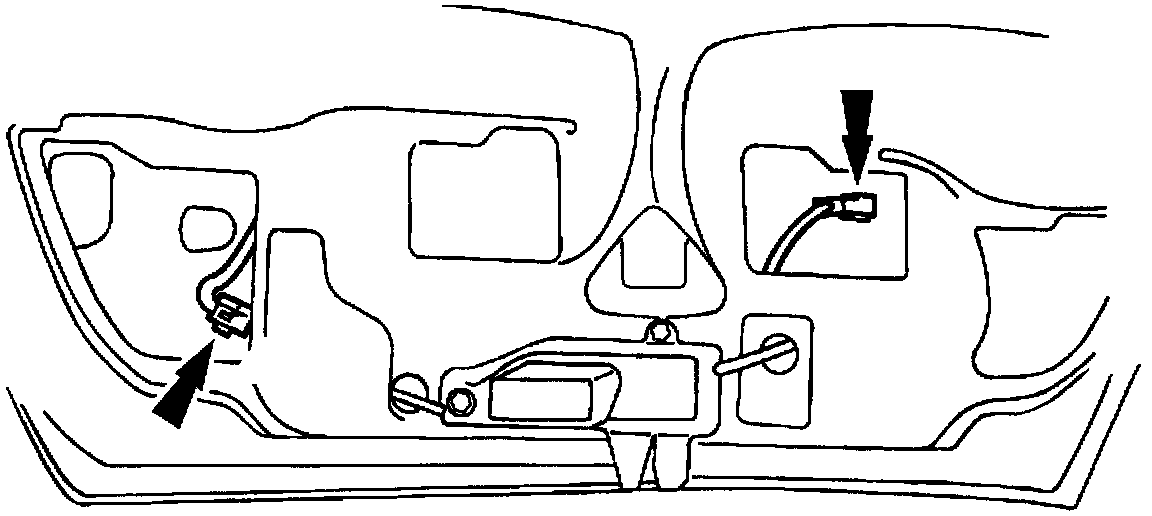

2. Disconnect the electrical connectors.

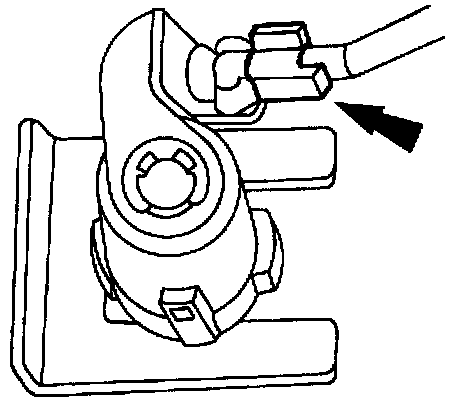

3. Detach the door lock rod.

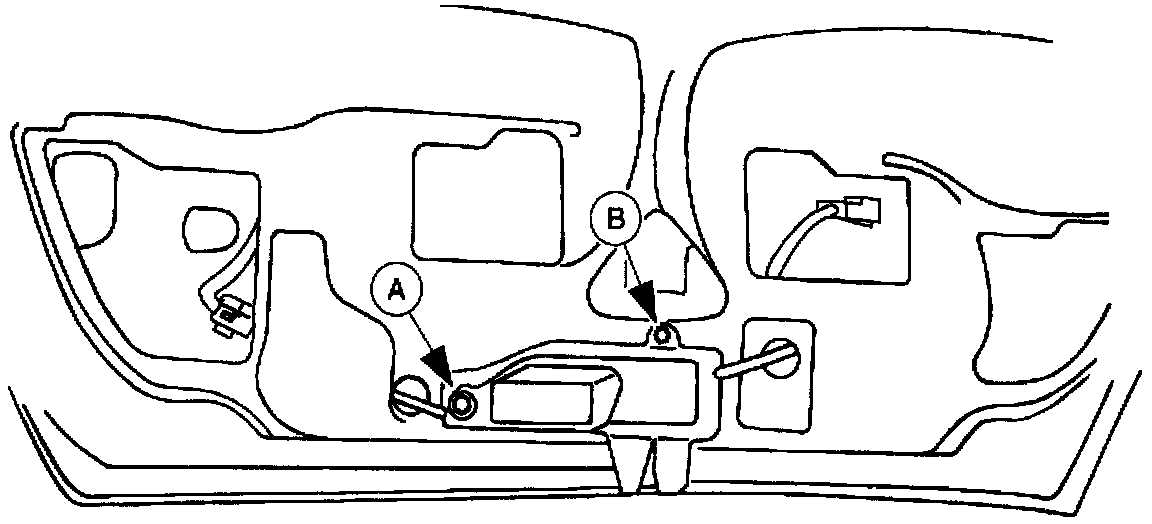

4. Remove the (A) bolt and the (B) push pin and remove the cover.

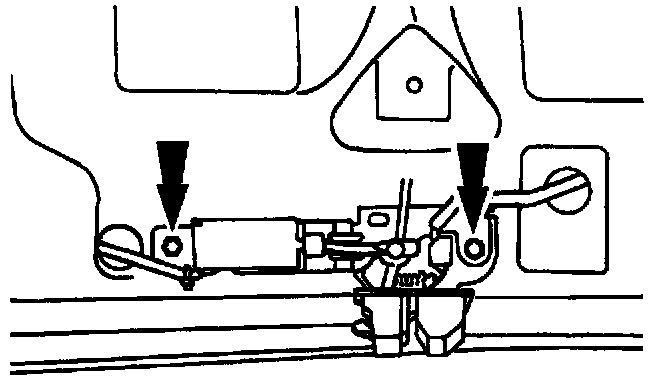

5. Remove the two bolts from the latch and remove.












INSTALLATION
1. To install, reverse the removal procedure.
