Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> C: Noisy Reception

C: Noisy Reception

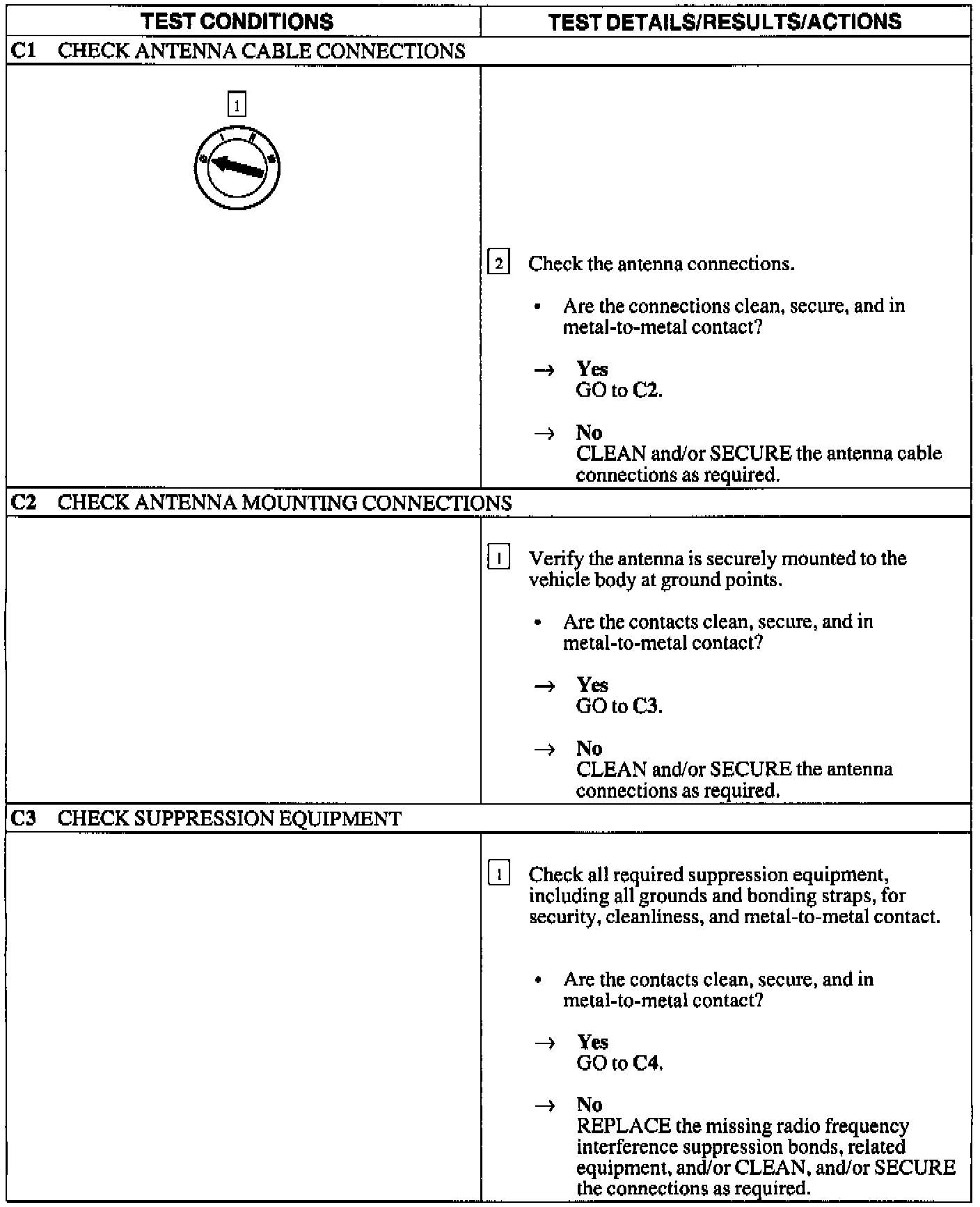

C1-C3:

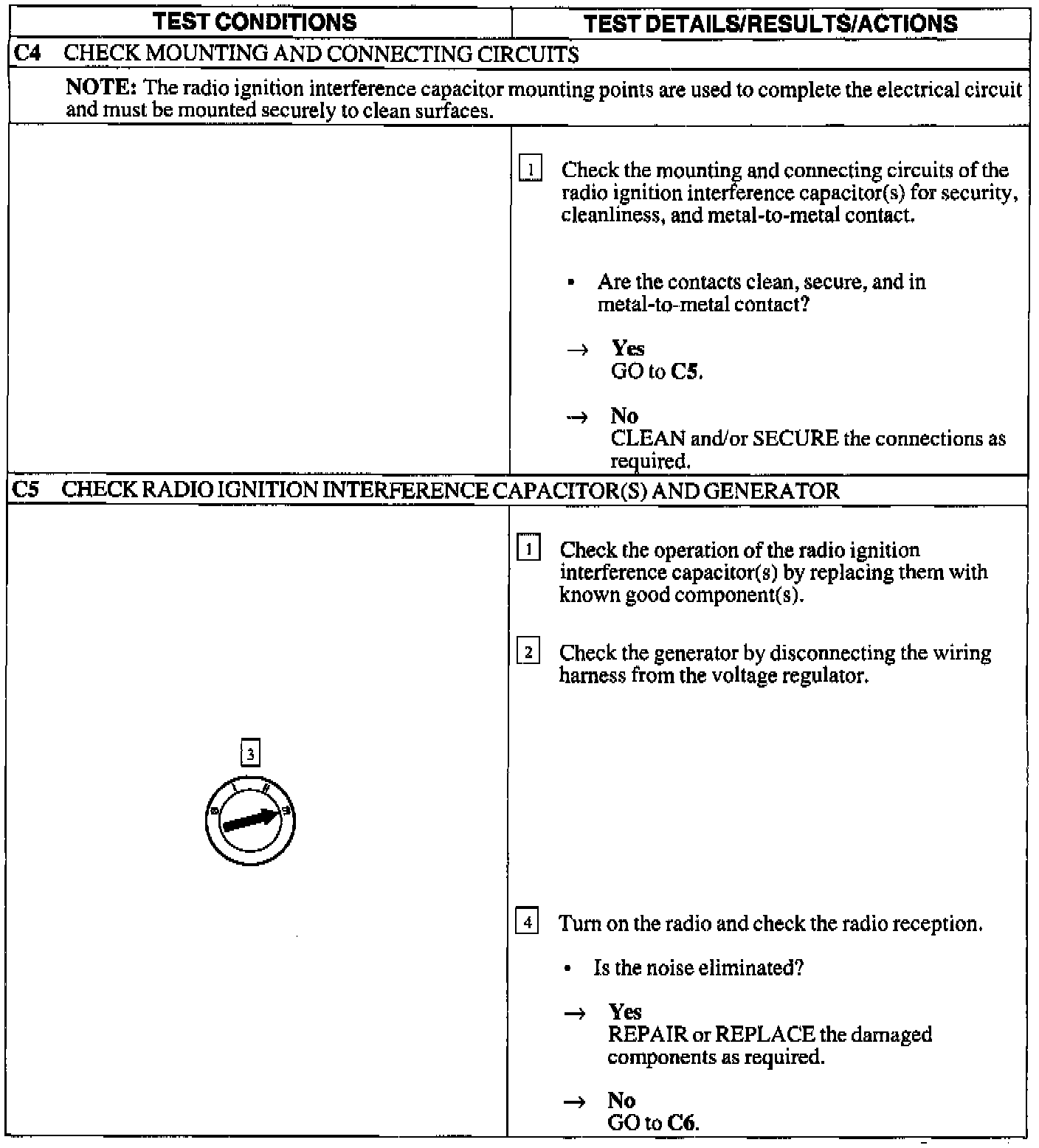

C4-C5:






C6-C8:

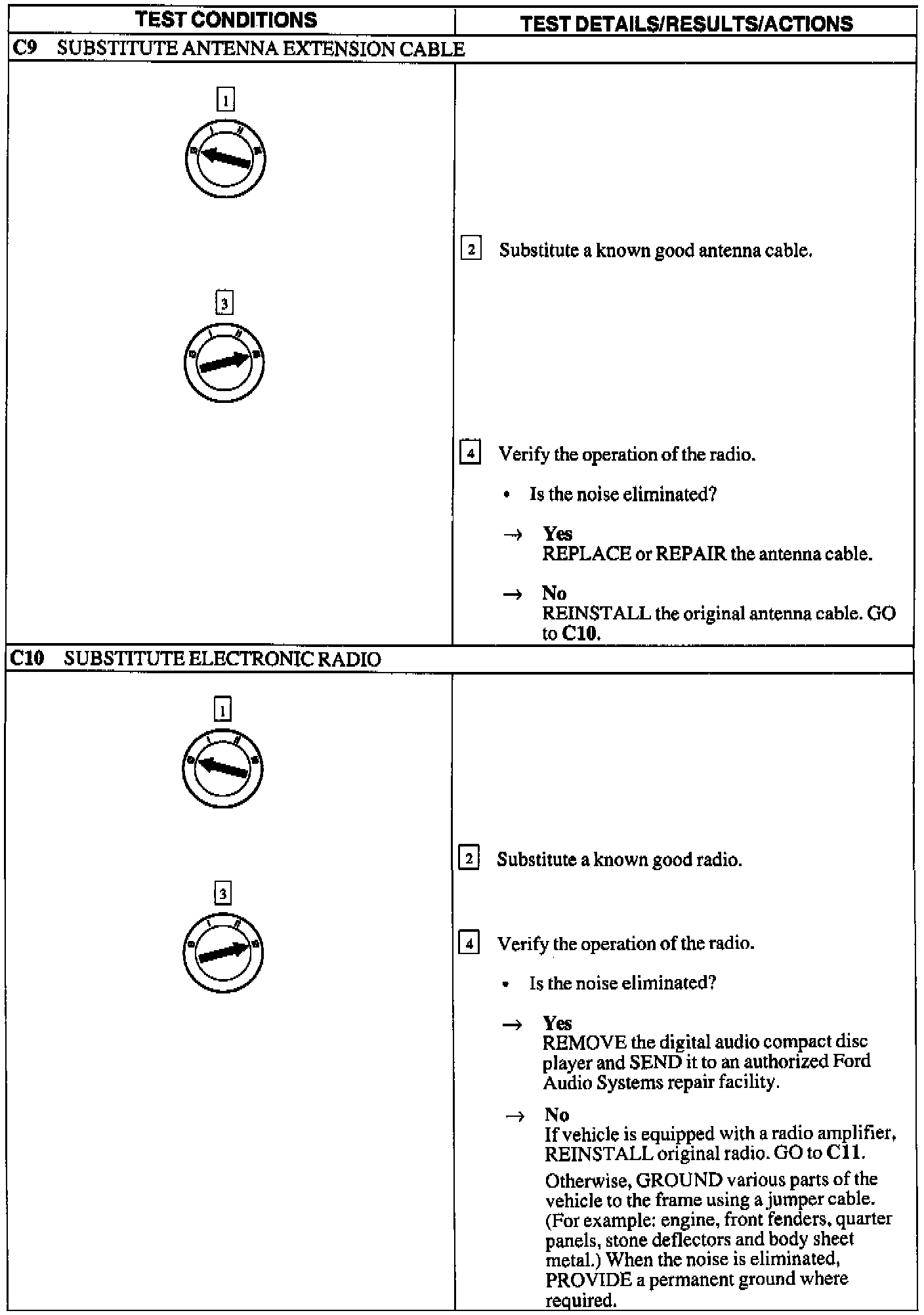

C9-C10:

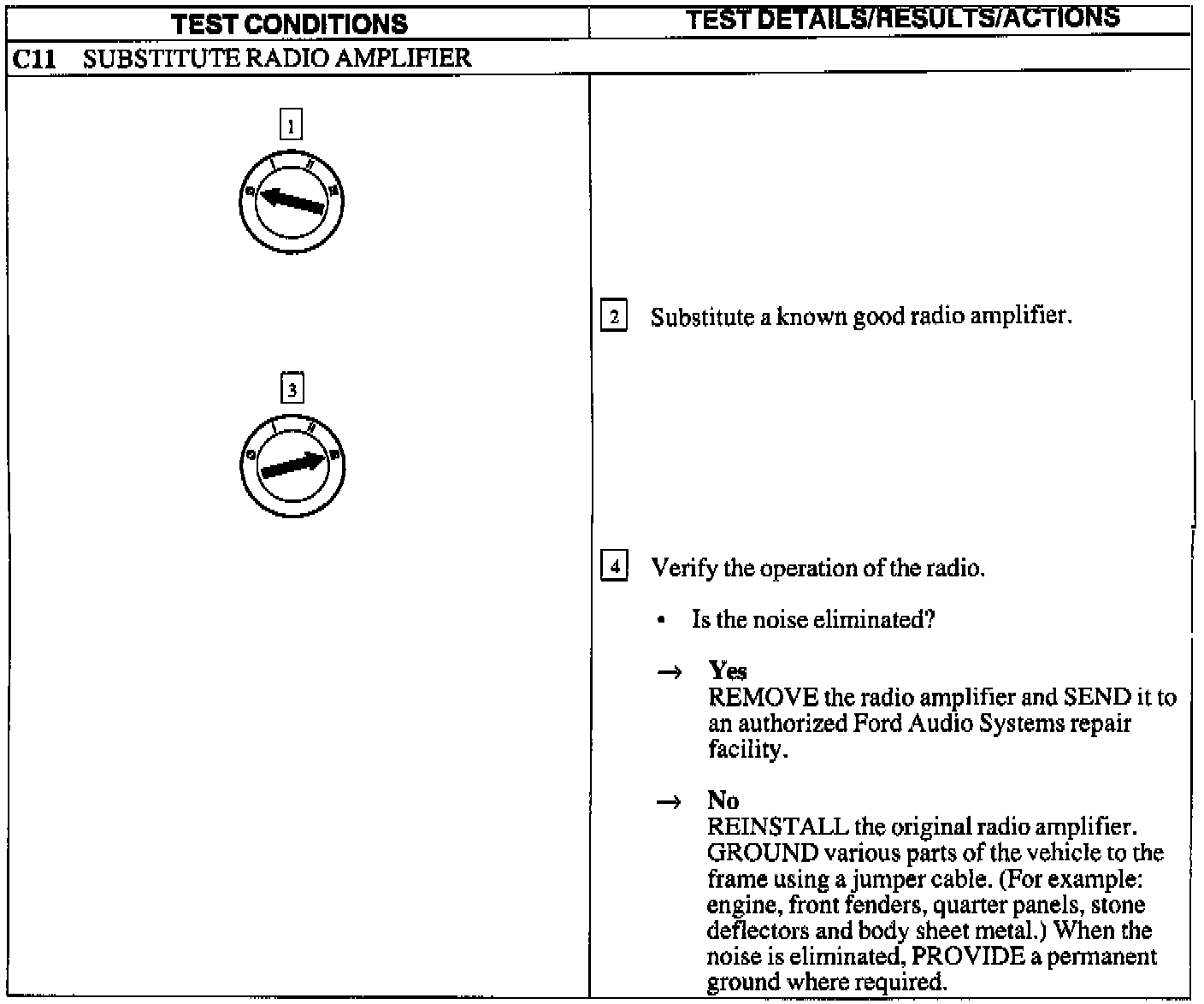

C11:
