Amplifier: Service and Repair

REMOVAL






1. Disconnect the battery ground cable.
2. Remove the driver seat.

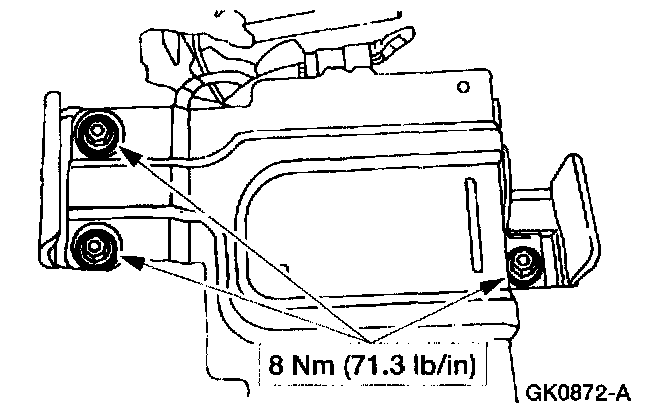

3. Remove the three radio amplifier bracket bolts.

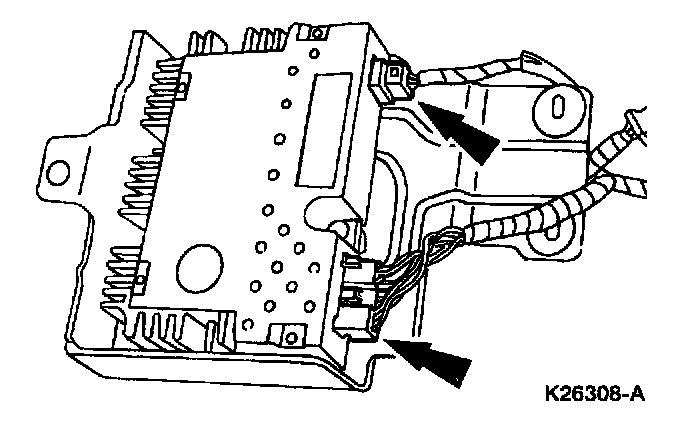

4. Disconnect the two radio amplifier electrical connectors.

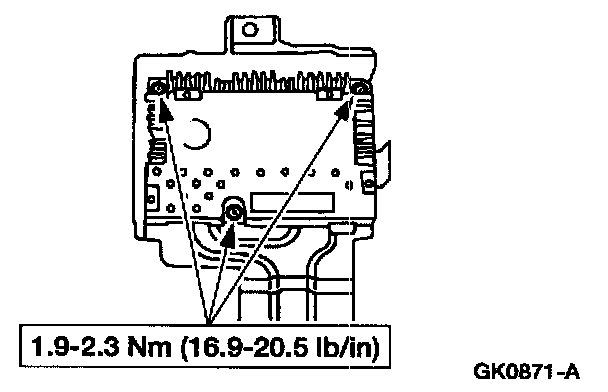

5. Remove the three radio amplifier screws and the radio amplifier.

INSTALLATION
















1. To install, reverse the removal procedure.
