Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Test G: System Activates Falsely

Test G: System Activates Falsely

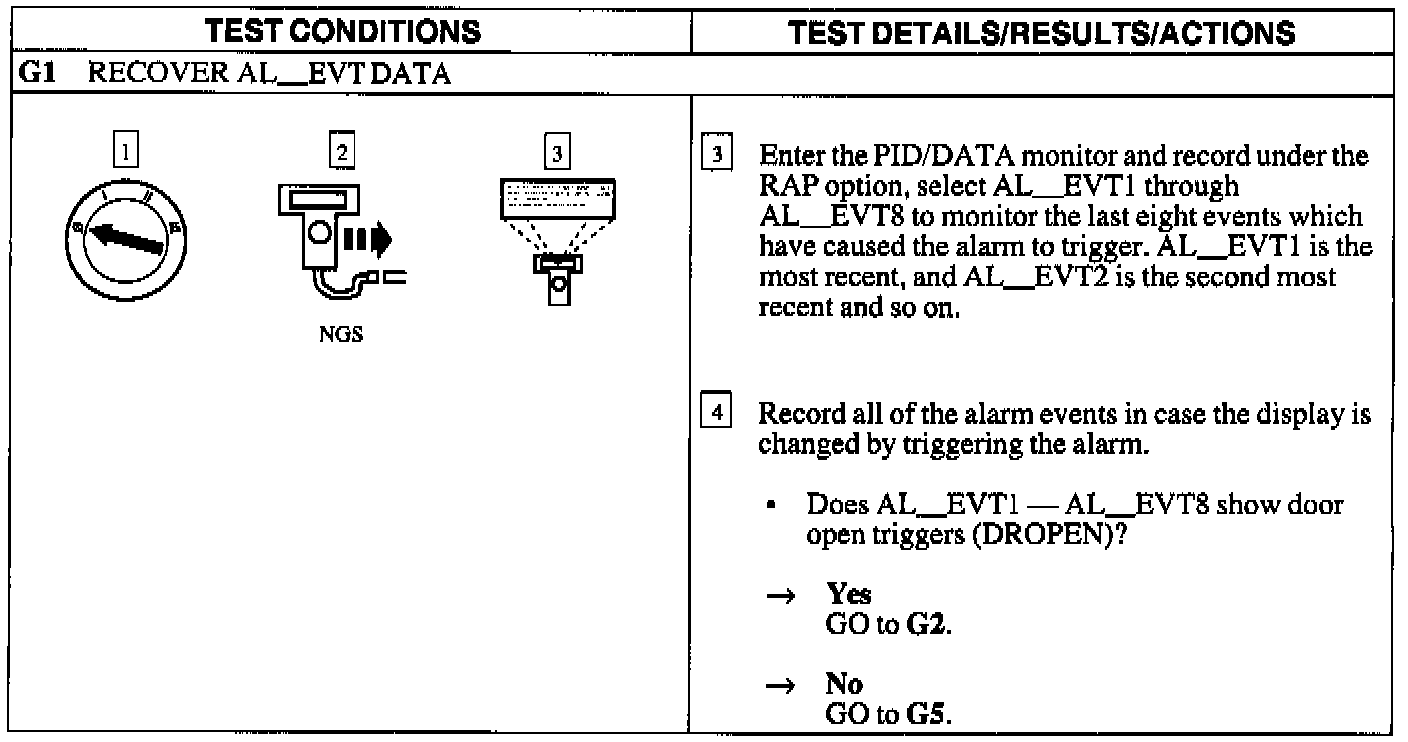

G1:

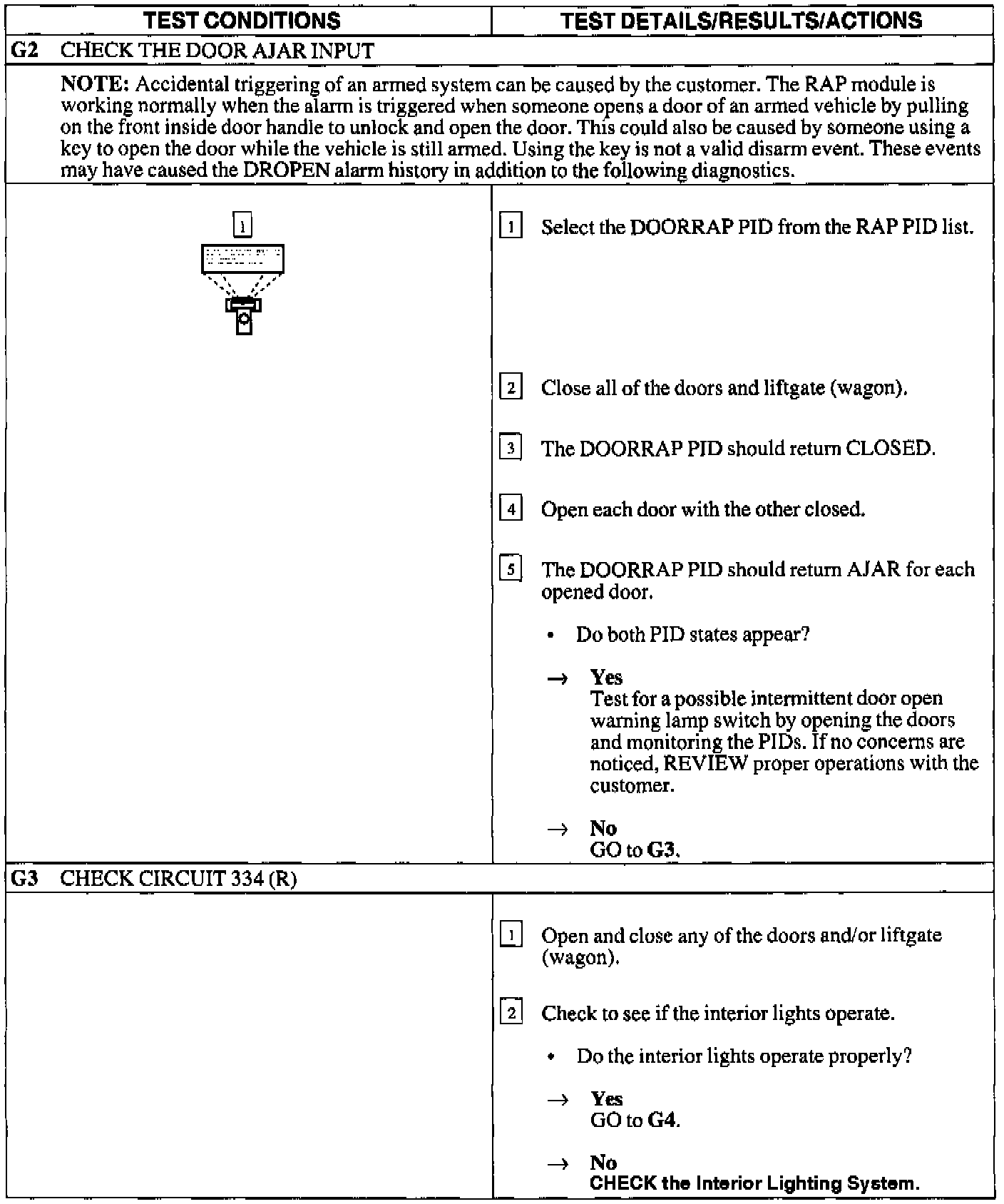

G2-G3:

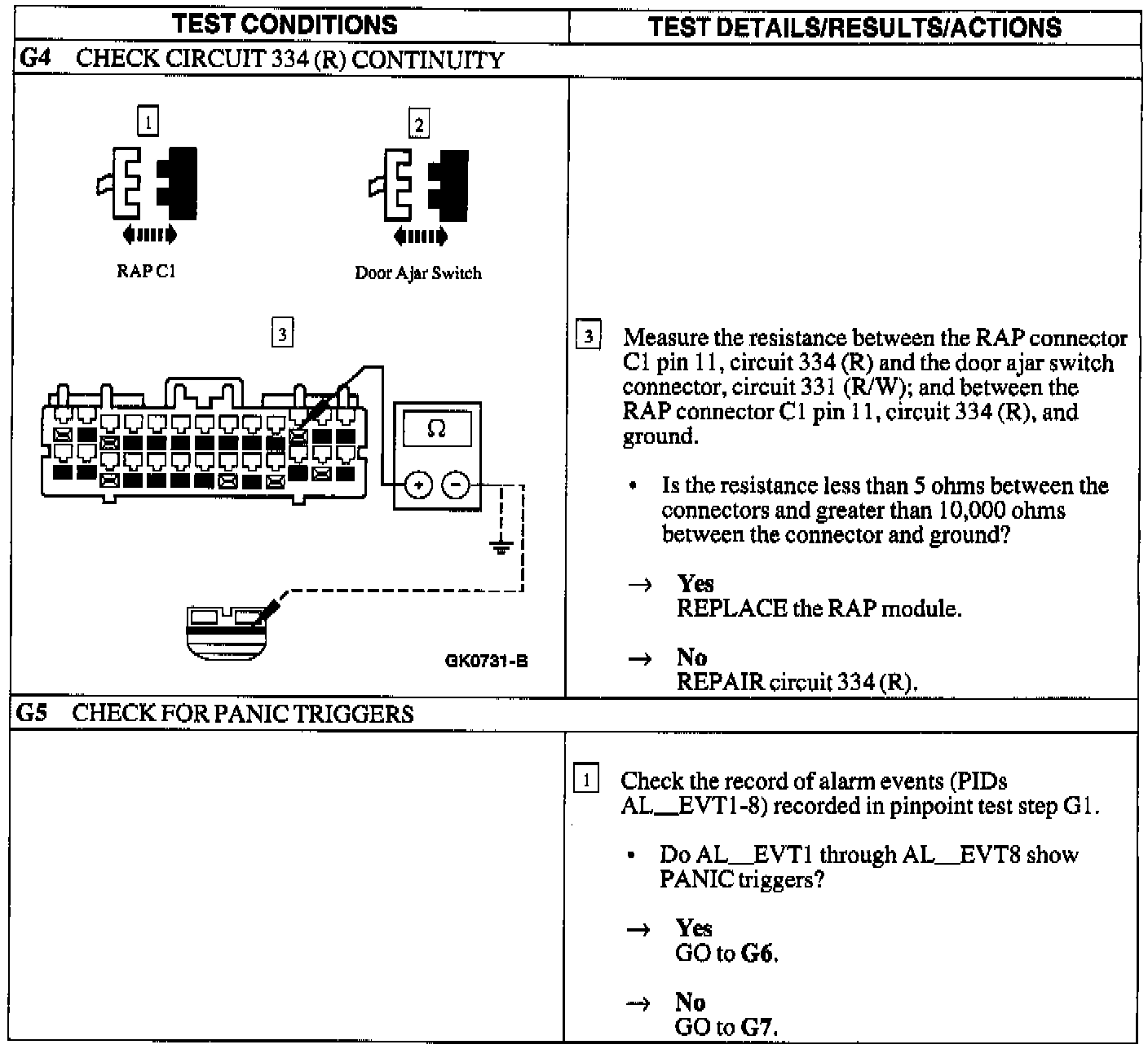

G4-G5:

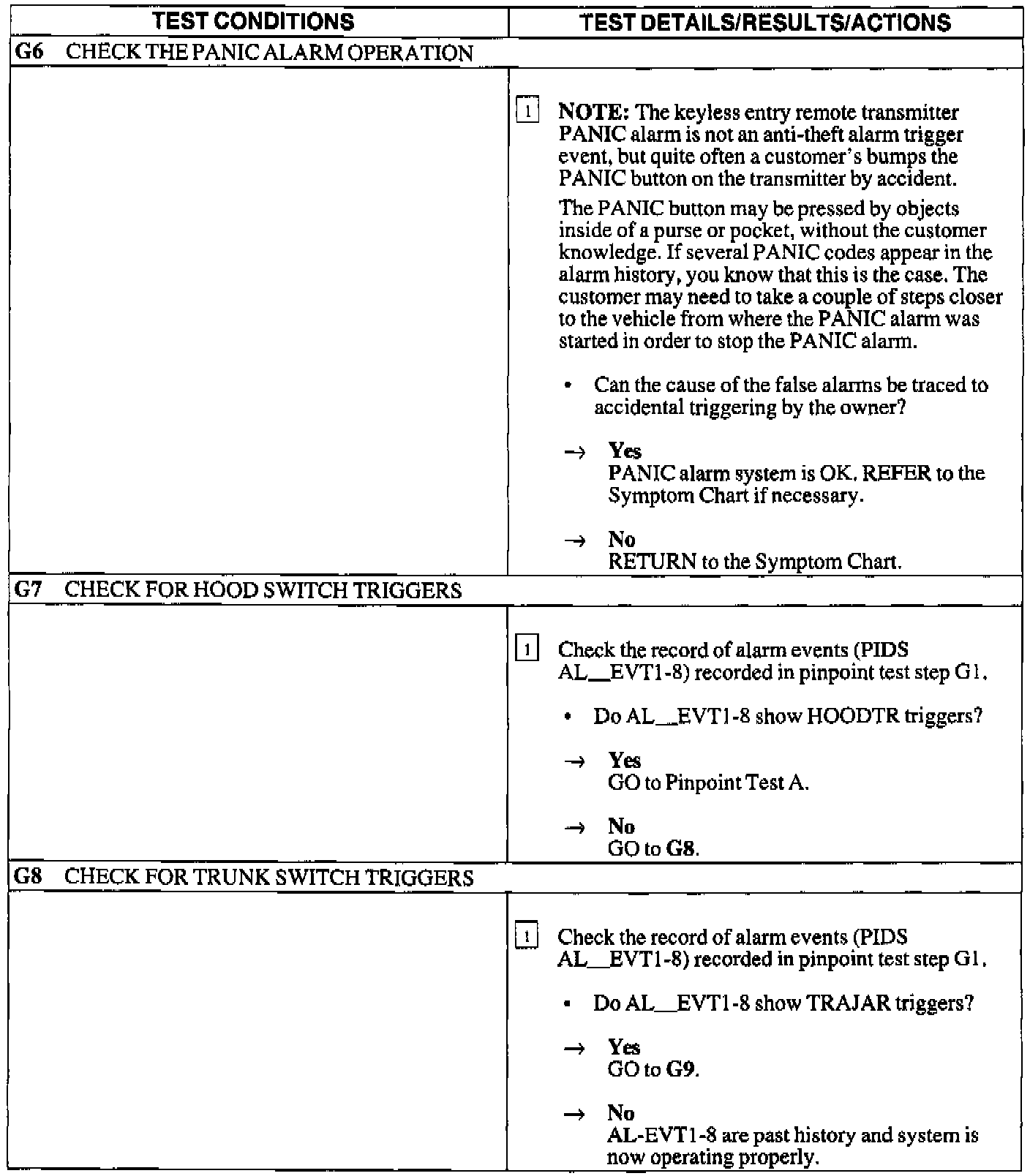

G6-G8:

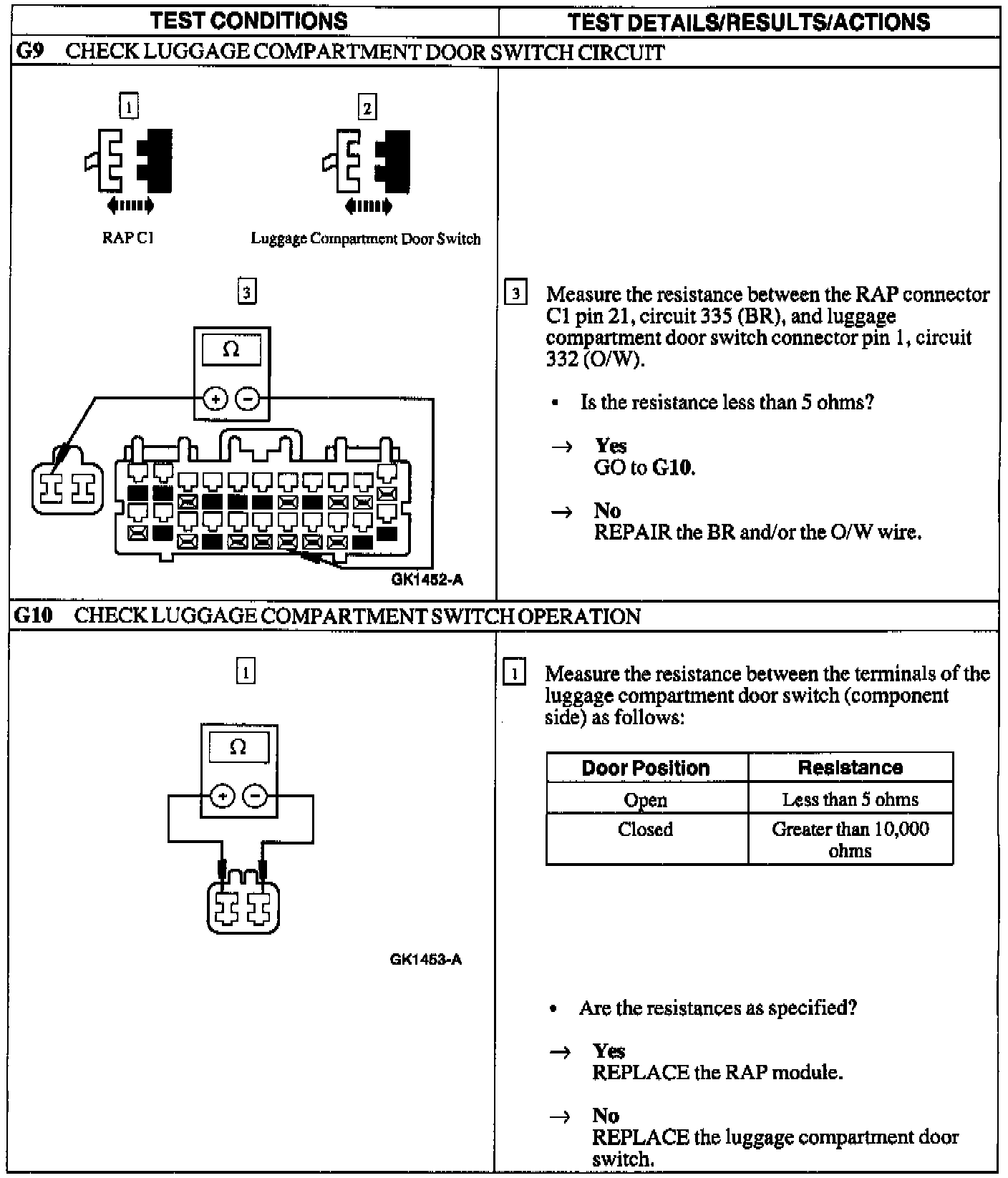

G9-G10:
