Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Test B: No Module Communication With RAP Module

Test B: No Module Communication With RAP Module

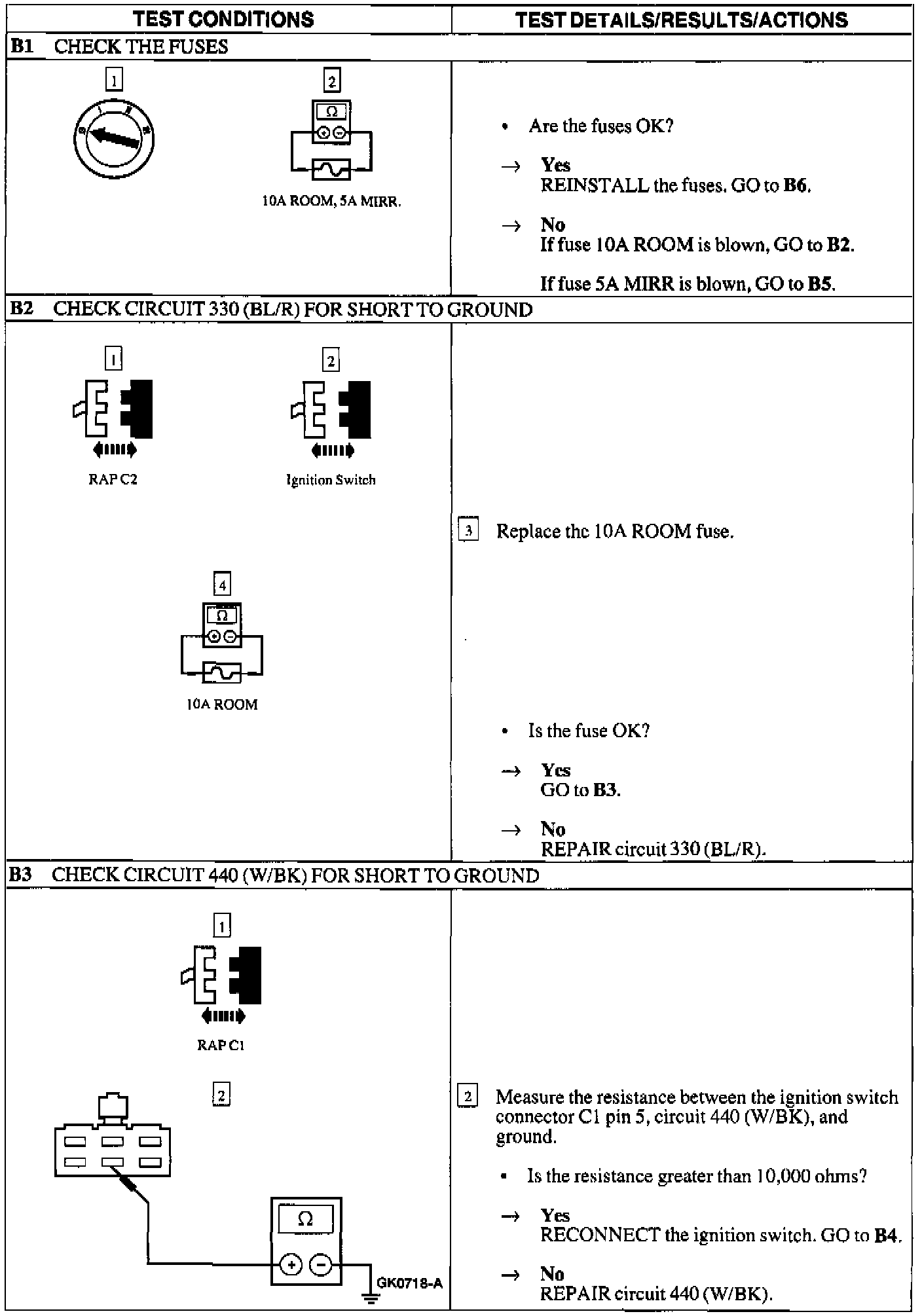

B1-B3:

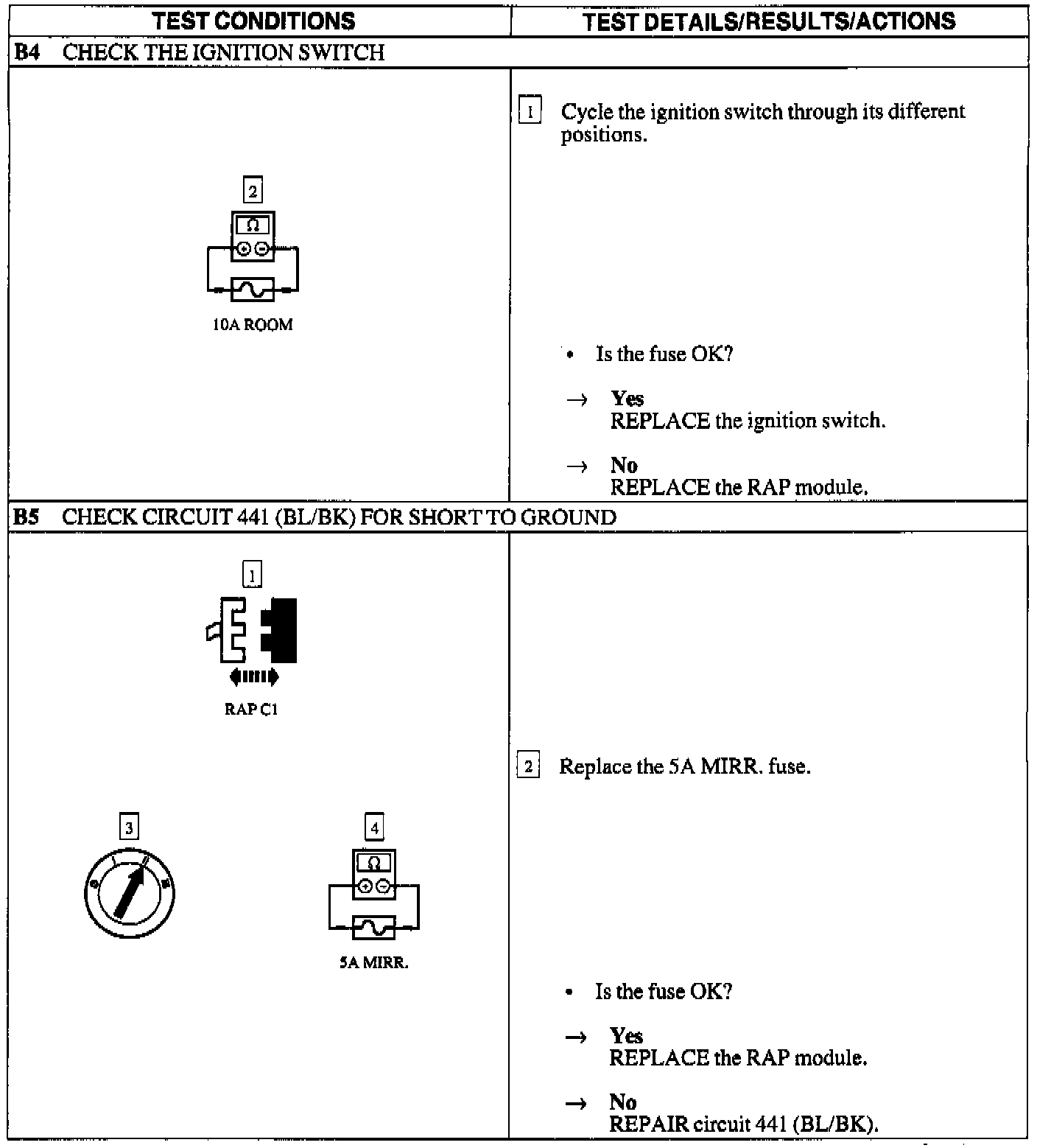

B4-B5:

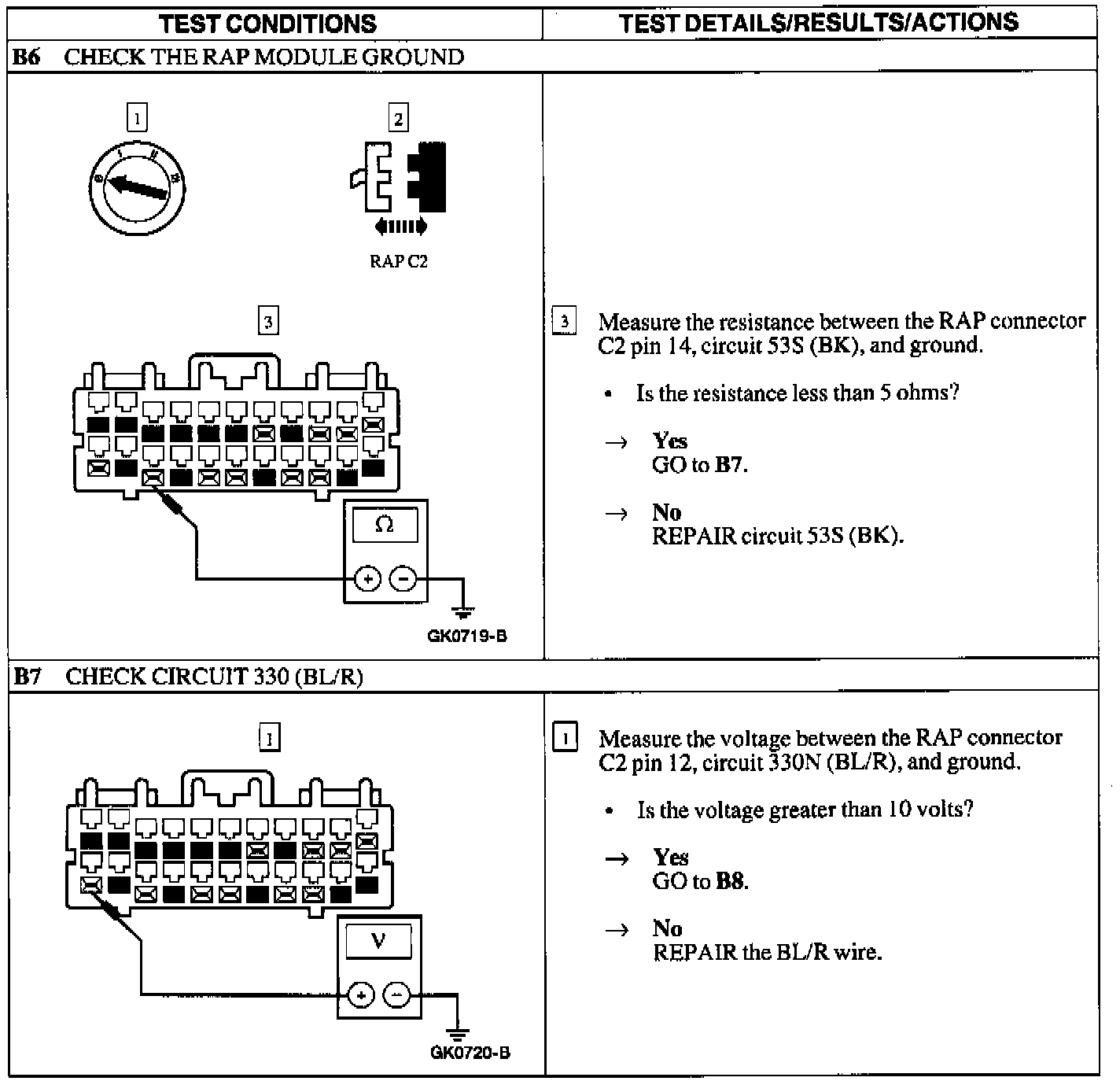

B6-B7:

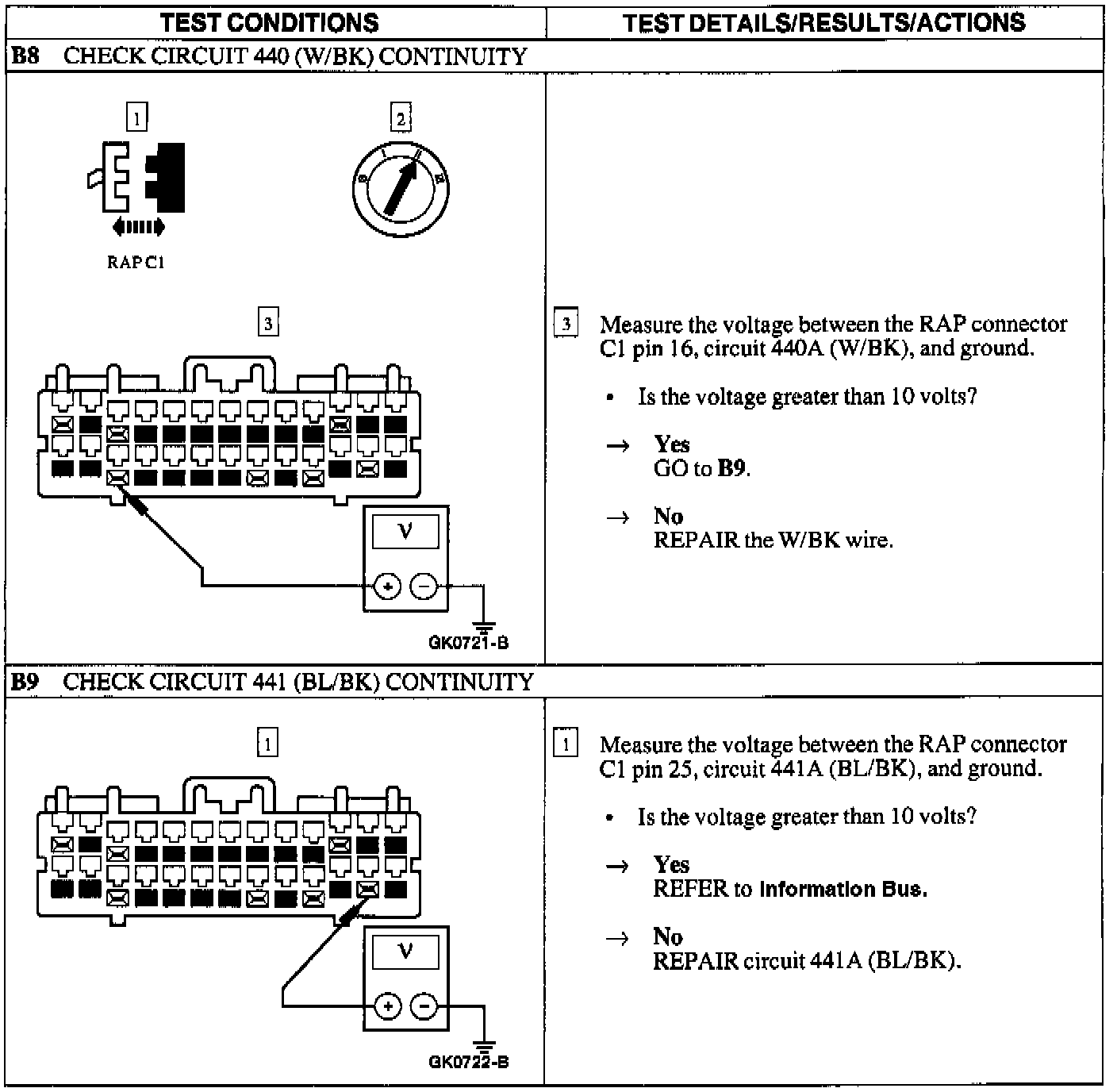

B8-B9:
