Connector Views

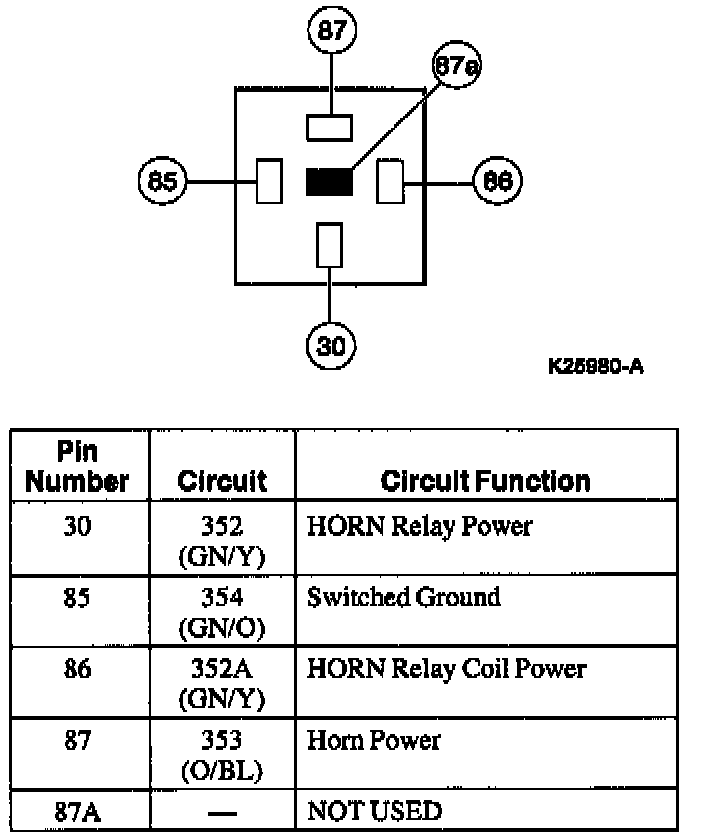

HORN Relay Connector:

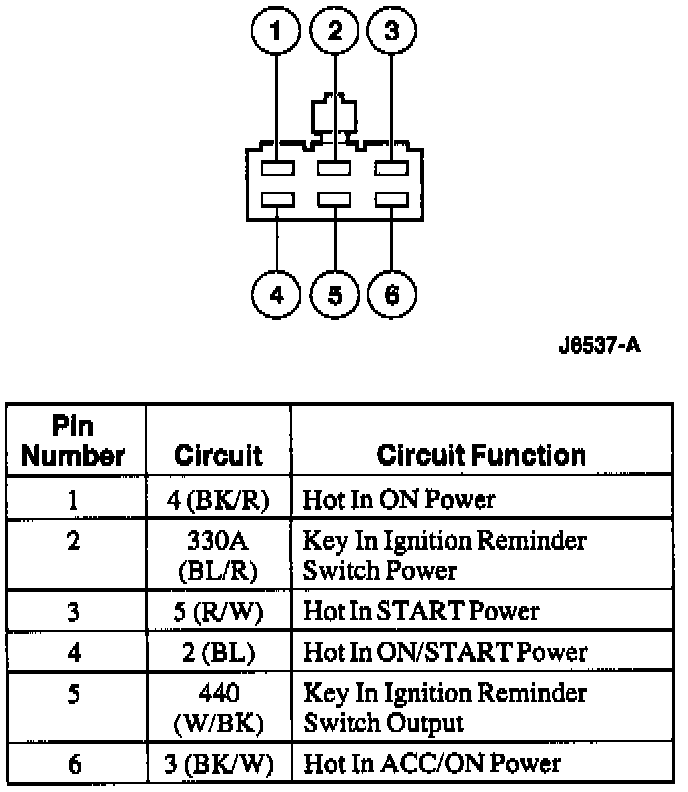

Ignition Switch Connector C1:

Ignition Switch Connector C2:

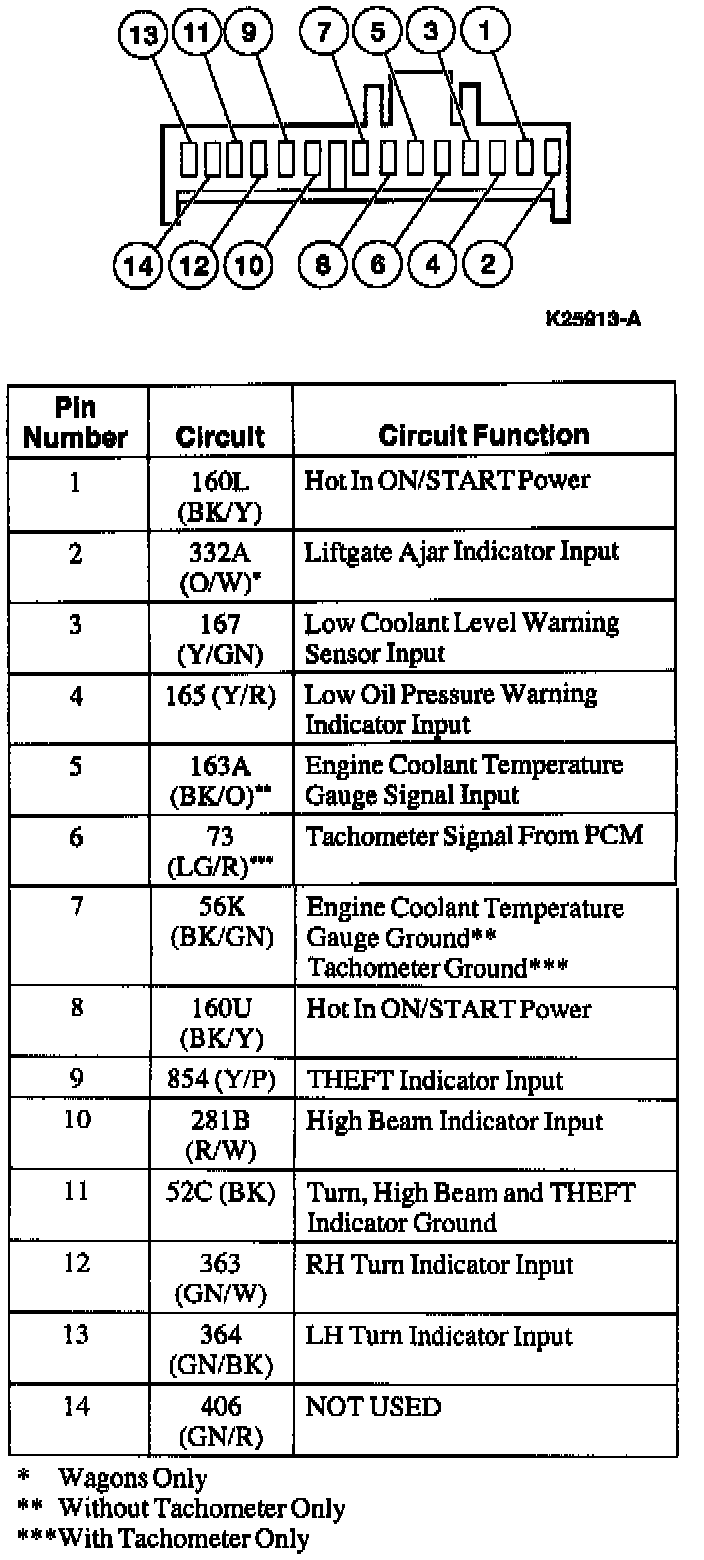

Instrument Cluster Connector C3:

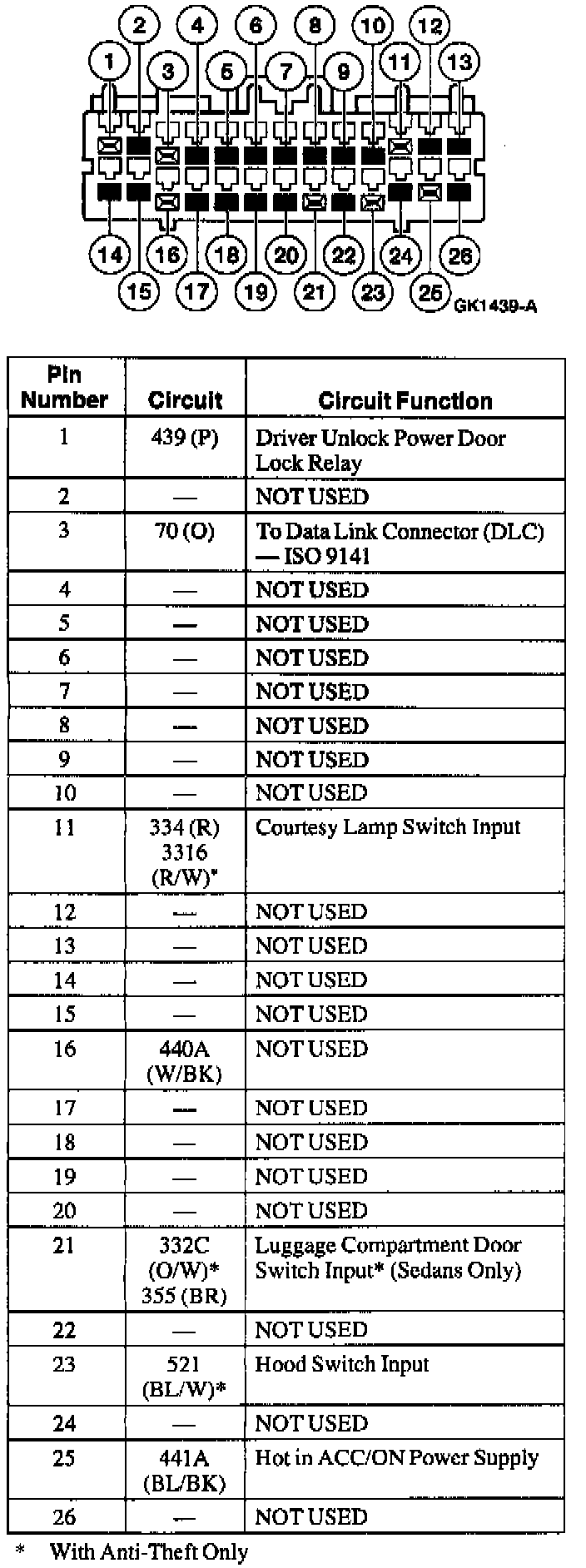

Remote Anti-Theft Personality (RAP) Module Connector C1:

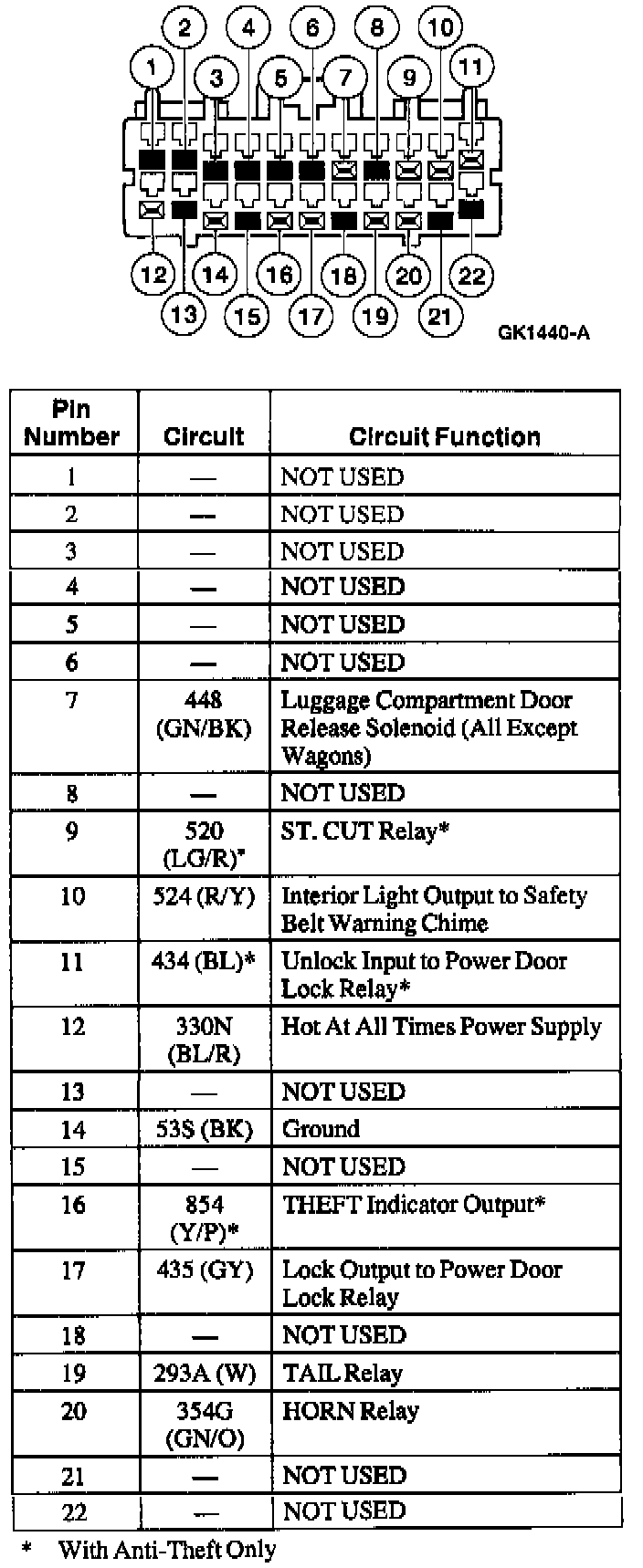

Remote Anti-Theft Personality (RAP) Module Connector C2:

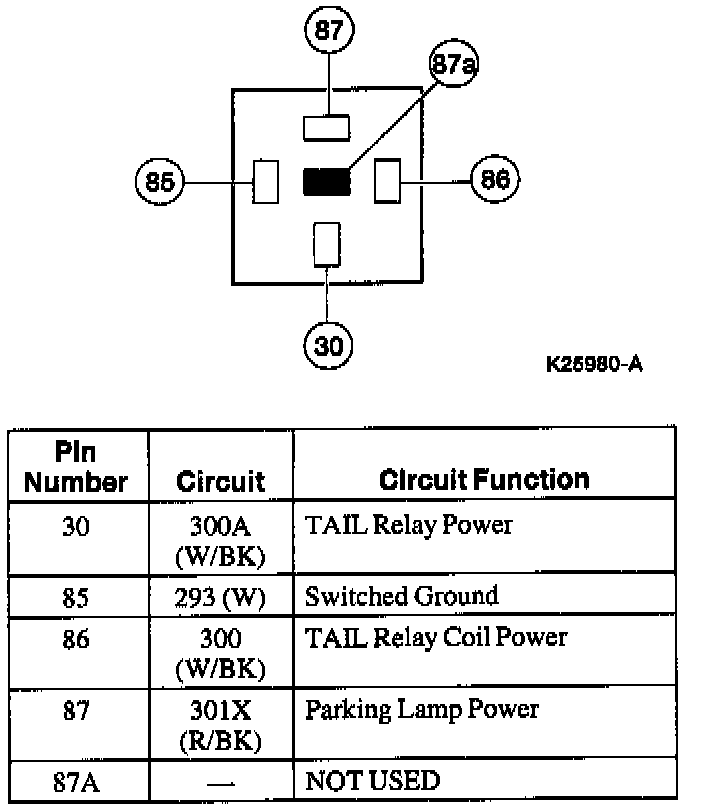

TAIL Relay Connector:
