Home >> Mercury >> 1997 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Locations

Alarm Module: Locations

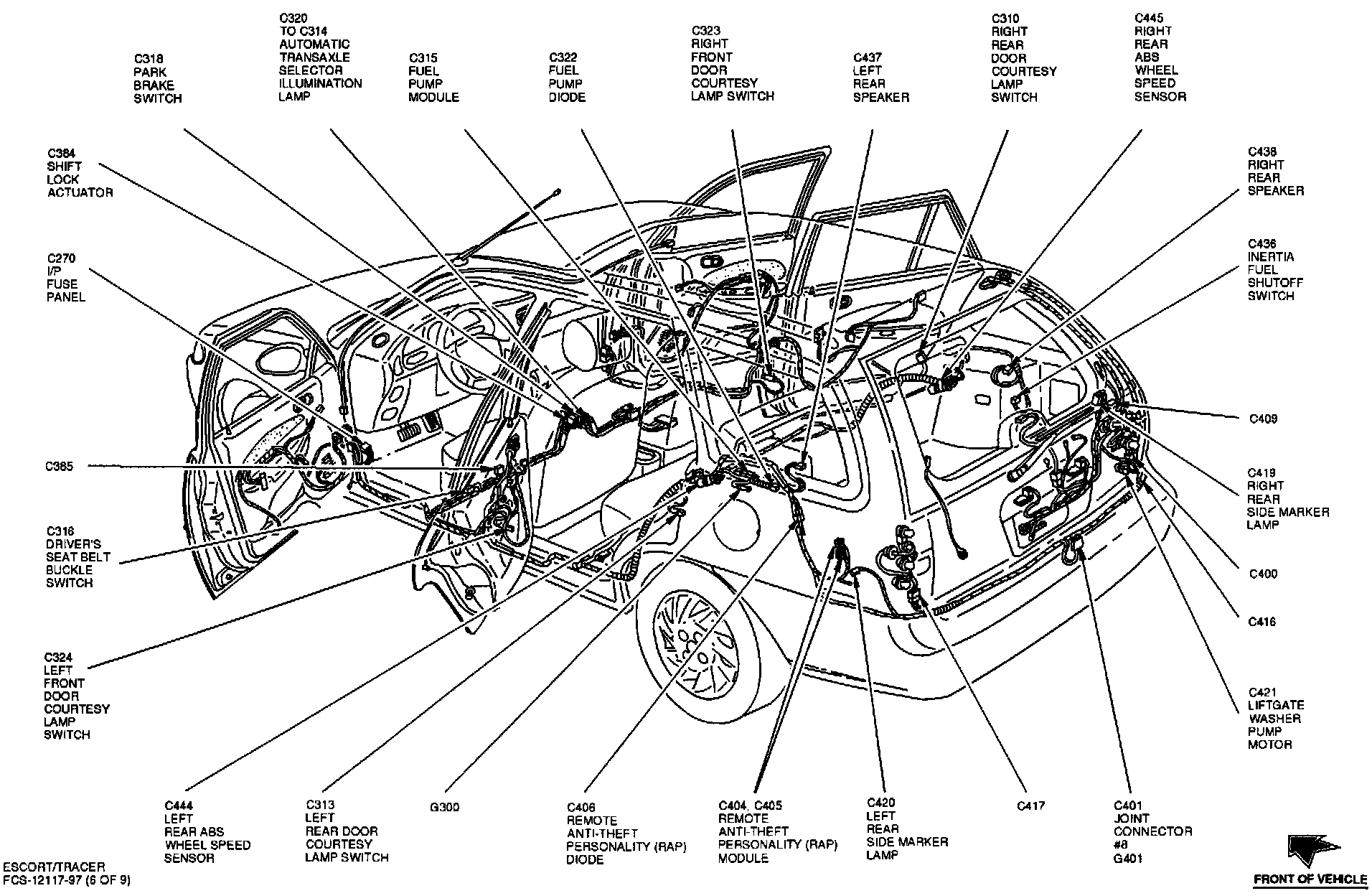

Full Body View (Station Wagon):

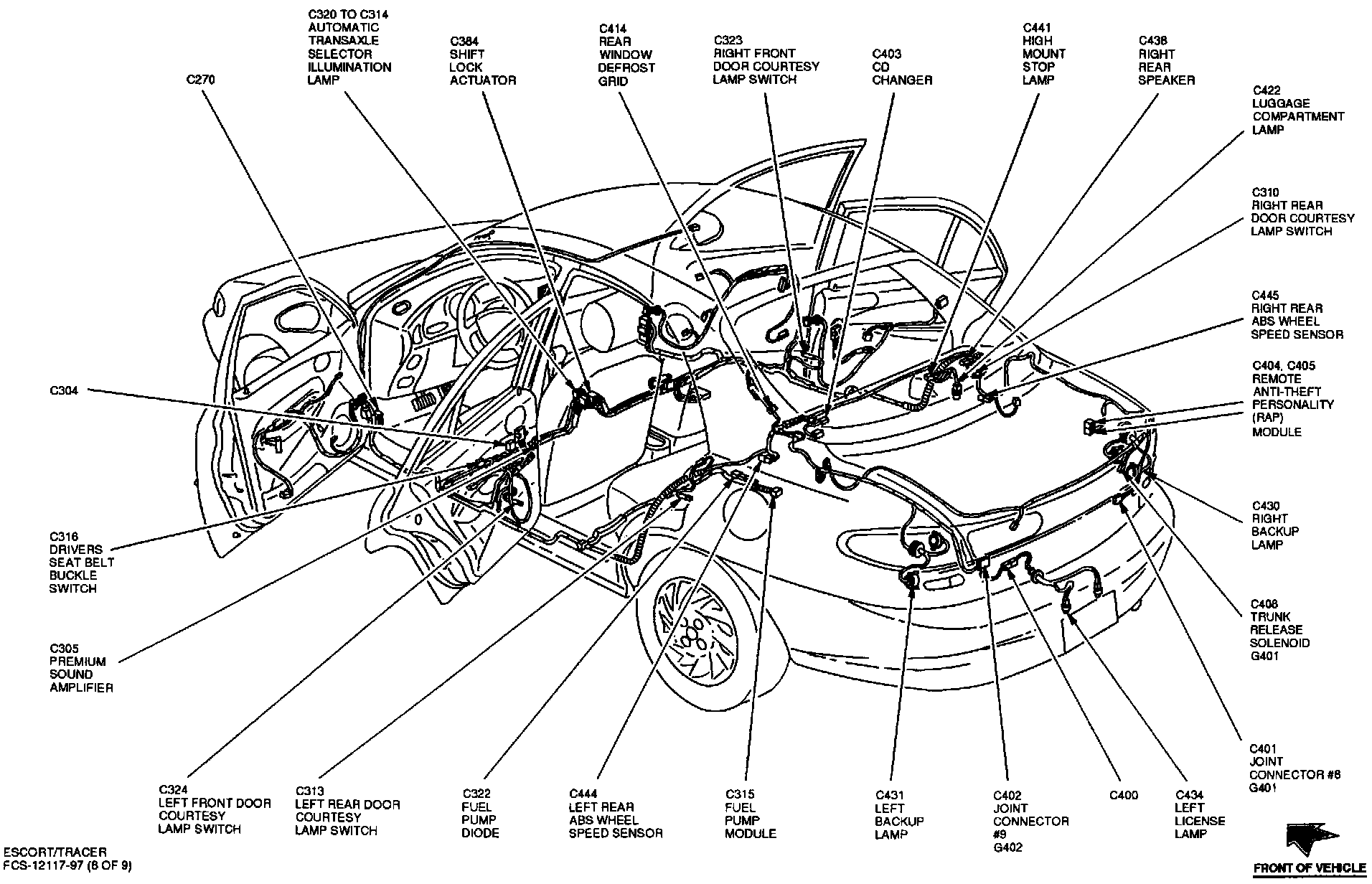

Full Body View (Sedan):





The Remote Anti-Theft Personality Module is located at the LH rear of the vehicle.
