Sedan

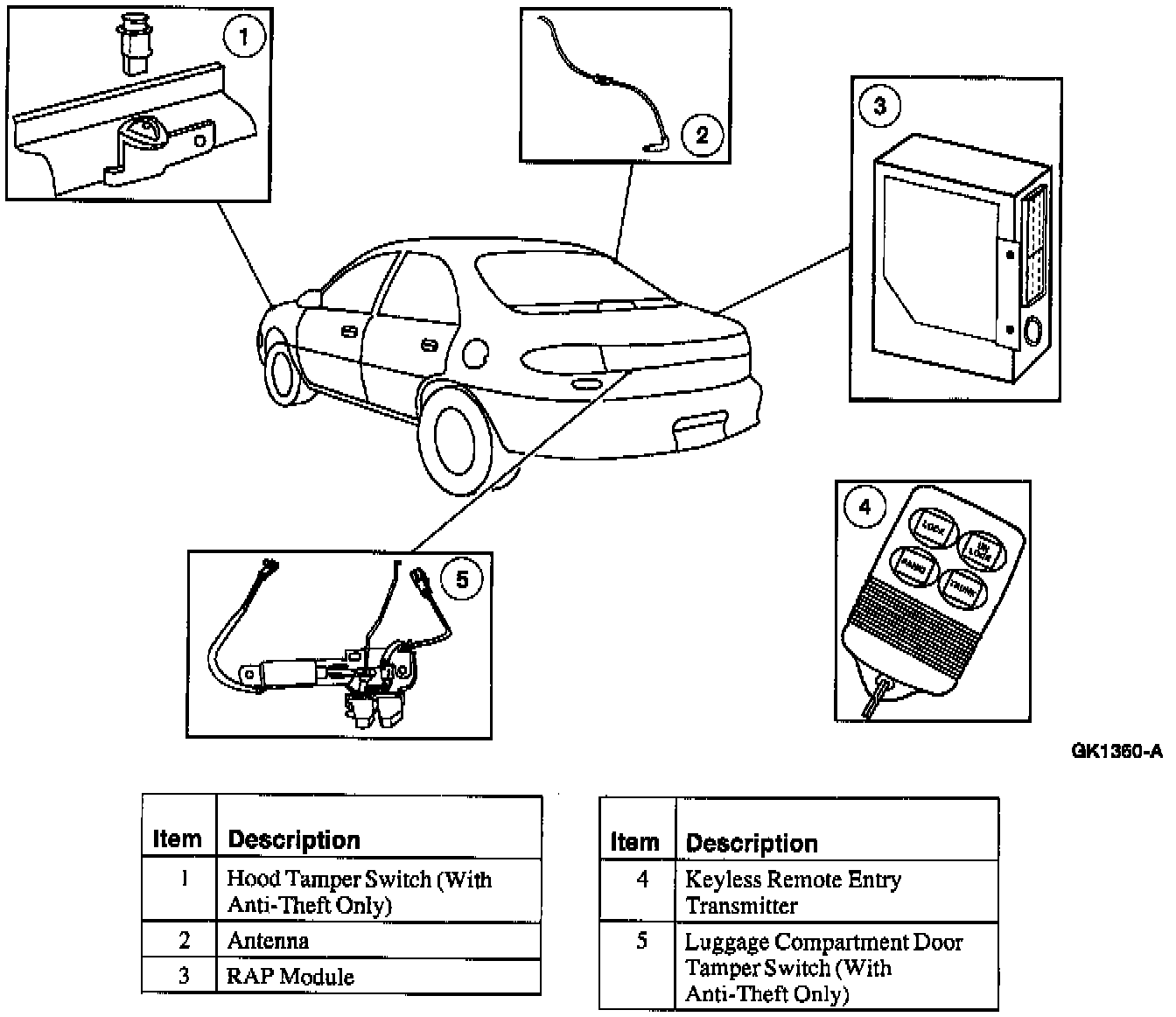

RAP Module Components:

The Remote Anti-Theft Personality (RAP) module uses a keyless remote entry transmitter to LOCK/UNLOCK the door(s) and arm/disarm anti-theft (if equipped). Two levels of the RAP module are available:
^ Single (driver) door remote system with no anti-theft.
^ Four door remote entry with anti-theft.

Both levels of the RAP module use a keyless remote entry transmitter that emits a radio frequency called a Transmitter Identification Code (TIC). TICs can be retrieved using the New Generation STAR (NGS) tester.

Driver Door Only
The driver door only level RAP module uses the keyless remote entry transmitter to:
^ LOCK/UNLOCK
- Driver door.
^ Release the luggage compartment door.
^ Activate/deactivate the panic alarm.
^ Activate/deactivate the courtesy lamp.

Anti-Theft
The anti-theft level RAP module uses the keyless remote entry transmitter to:
^ LOCK/UNLOCK
- Driver door.
- Passenger doors.
- Release the luggage compartment door.
- Activate/deactivate the courtesy lamp.
- Arm/disarm anti-theft.
- Activate/deactivate the panic alarm.
