Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Spray Nozzle >> Service and Repair >> Front Nozzle Jet and Bracket

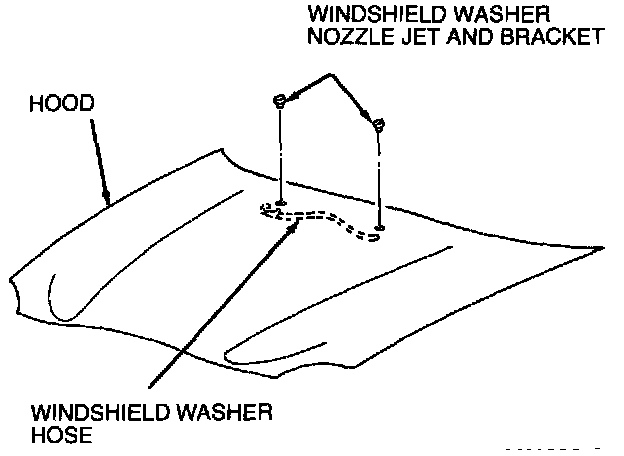

Front Nozzle Jet and Bracket

REMOVAL
1. Raise hood.
2. Disconnect window washer hose and remove windshield washer nozzle jet and bracket from hood by squeezing tangs of windshield washer nozzle jet and bracket and pushing up and out of hood.

INSTALLATION







1. Follow removal procedure in reverse order.
