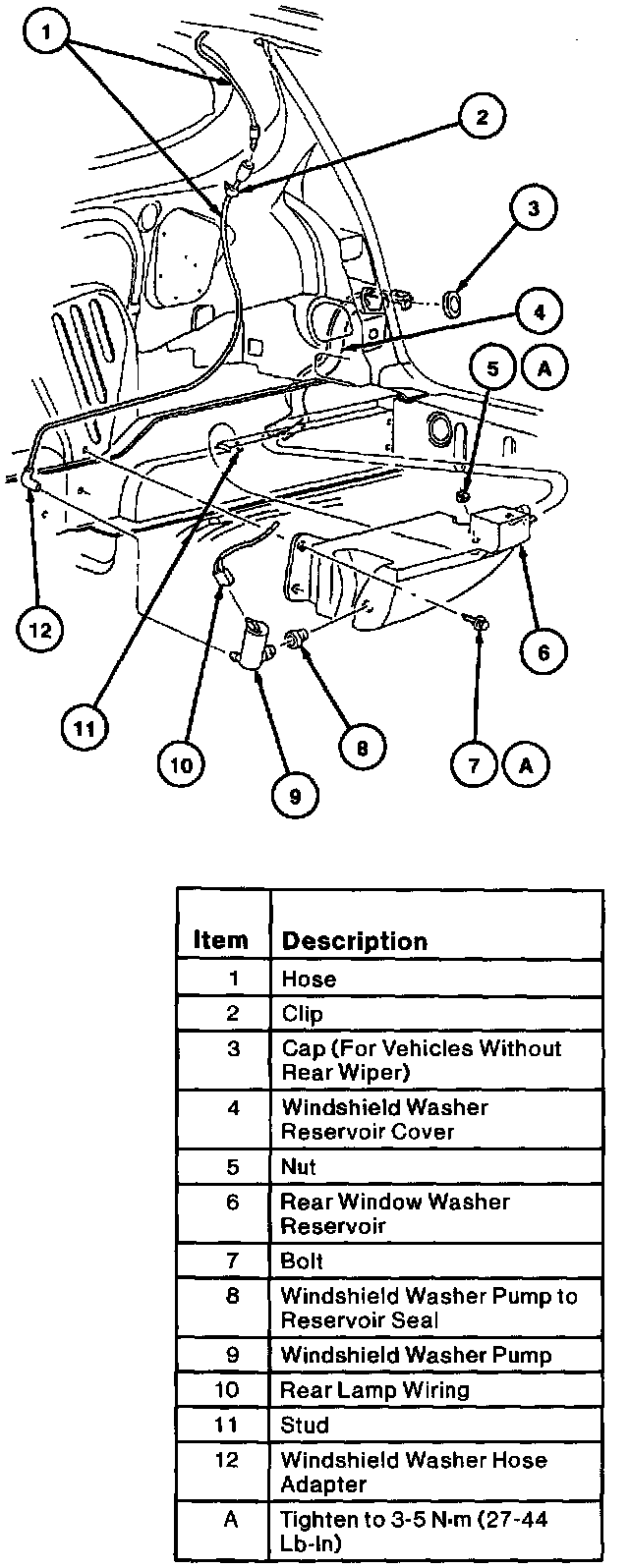

Rear Washer Pump and Reservoir

REMOVAL
1. Remove RH quarter trim panel.
2. Remove windshield washer reservoir cover and vent hose from rear windshield washer reservoir.
3. Remove windshield washer reservoir cover from rear windshield washer reservoir.
4. Remove two screws and one nut retaining rear windshield washer reservoir to luggage compartment.
5. Disconnect electrical connector and remove rear windshield washer reservoir from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten screws and nut to 3-5 Nm (27-44 Lb-In).







3. Fill reservoir and check operation of windshield washers.
