With AX4N Transmission

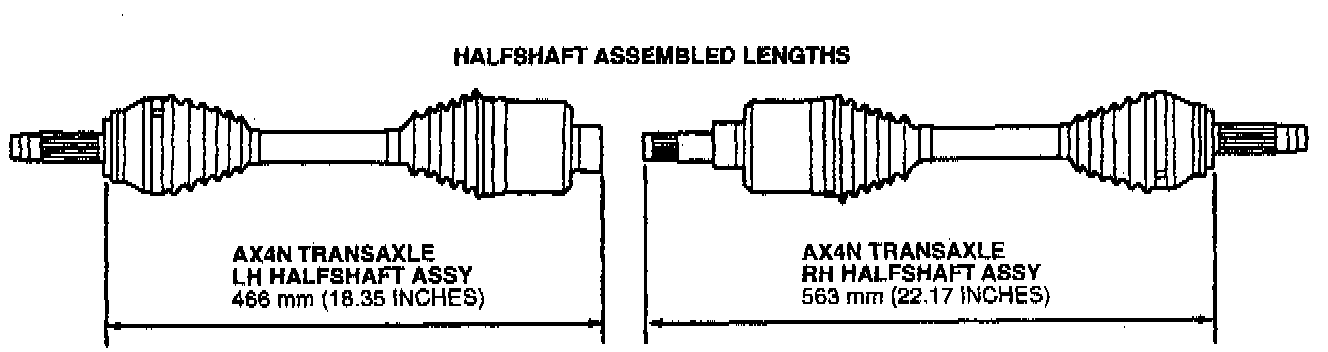

Halfshaft Assembled Length Specifications:






Assembled Length
Left Hand 466 mm (18.35 inch)
Right Hand 563 mm (22.17 inch)
