Assembly

ASSEMBLY

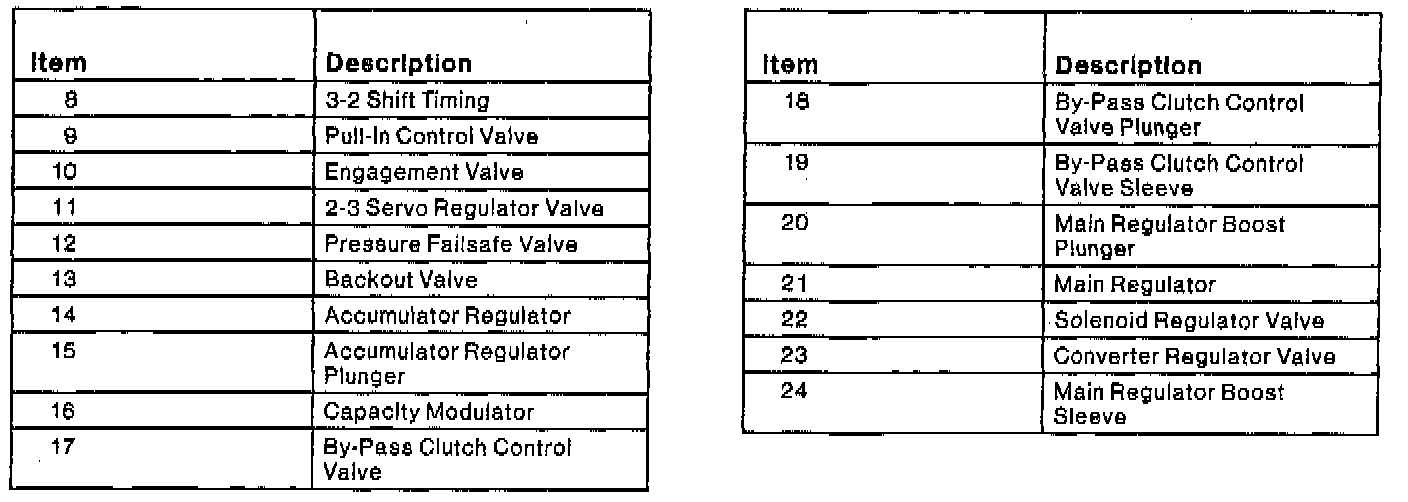

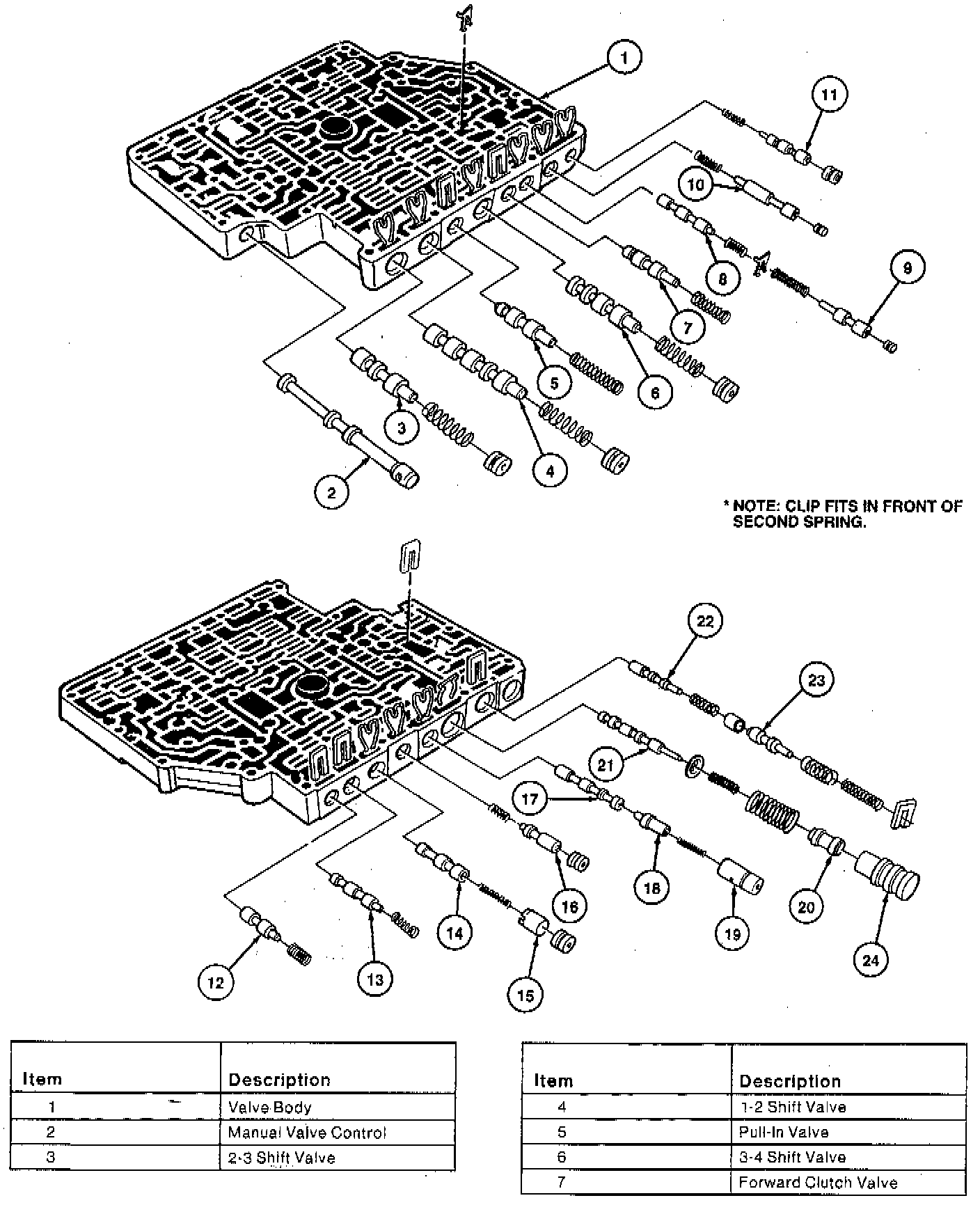

Main Control Valve Body Assembly, (Part 1 Of 2):

Main Control Valve Body Assembly, (Part 2 Of 2):

1. Assemble valves and springs into main control valve body.

Valve Body Check Balls, Relief Valves, And Filter:

2. Install check balls, relief valves and filters.
3. Replace valve body separator plate with bonded gasket on main control valve body.





4. Install Valve Body Guide Pin T86P-70100-A. install two Torx bolts in main control valve body and tighten to 9-12 Nm (80-106 inch lbs.). Remove alignment pins.
