Disassembly

DISASSEMBLY






1. Remove two bolts retaining pump to main control valve body.





2. Remove pump from main control valve body.

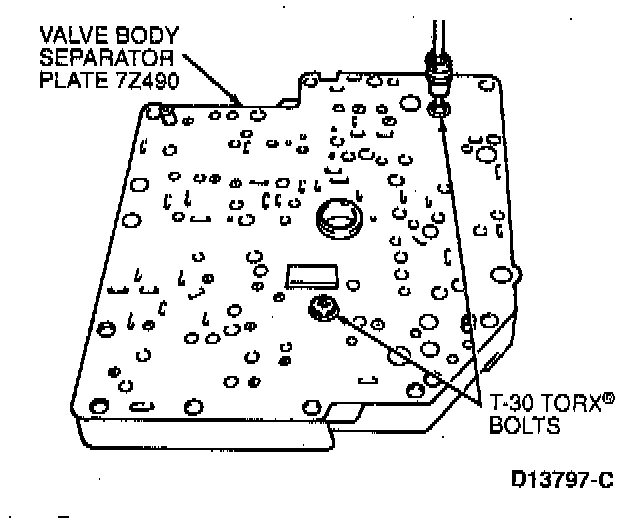

3. Place main control valve body on bench with valve body separator plate up, and remove two T-30 Torx bolts retaining valve body separator plate to main control valve body.

CAUTION: Do not damage gasket.

NOTE: Main control valve body separator plate and main control valve body separator plate gasket are bonded together. This separator plate and its gaskets are serviced as an assembly.

4. Remove valve body separator plate with bonded gasket.





5. Remove five check balls.

NOTE: Be sure to note location of check balls.





6. Remove and identify two manual low relief valves and spring. Remove modulator check valve and springs.

NOTE: Manual low relief valve springs are not interchangeable.





7. Remove and discard two filter screens.

Main Control Valve Body Assembly, (Part 1 Of 2):

Main Control Valve Body Assembly, (Part 2 Of 2):

8. The individual valves and springs are removed by removing retaining clips and bore plugs. Refer to the Main Control Valve Body Assembly image for valve and spring locations. Clean valves, springs and main control valve body under Cleaning and Inspection.

CAUTION:
^ Most valves are aluminum and cannot be removed using a magnet. Remove valves by tapping valve body on palm of hand to slide valves out of bores. It may be necessary to remove valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging valves or valve bores. If necessary, disassemble parts of main control valve body in small groups. Take special care when handling main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange parts as they are removed to avoid mixing similar pieces.
^ Do not stone or polish any valves. If valves do not move freely, replace assembly.
