Assembly

ASSEMBLY
1. Assemble valves and springs into main control valve body.

CAUTION: Do not stone or polish any valves. If valves do not move freely, replace assembly.

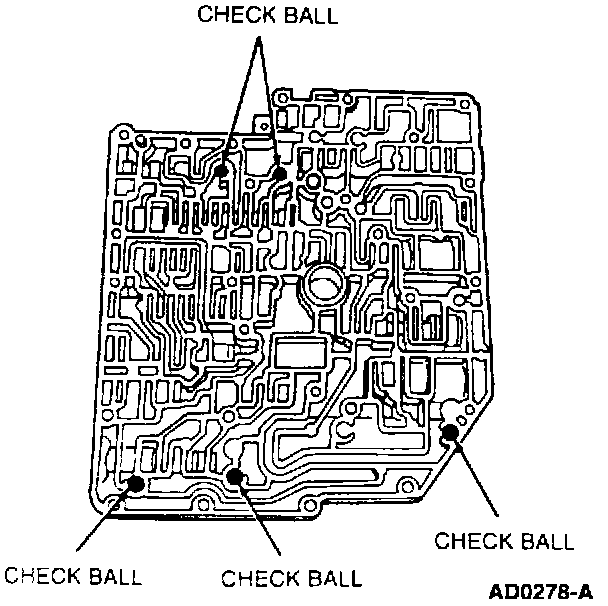

2. Install five check balls.






3. Install two manual low relief valve springs and one modulator check valve and spring.






4. Install two new filter screens into main control valve body assembly.
5. Install valve body separator plate with bonded gasket.

CAUTION: Verify relief and check valves for proper alignment to separator plate before tightening bolts. If relief and check valves are improperly installed, the transaxle will not operate properly.

NOTE: Gaskets are bonded to the separator plate.






6. Install two T-30 Torx bolts and tighten to 9-12 Nm (80-106 in lbs).
