Disassembly

Planet Assembly - Disassembled View:

DISASSEMBLY

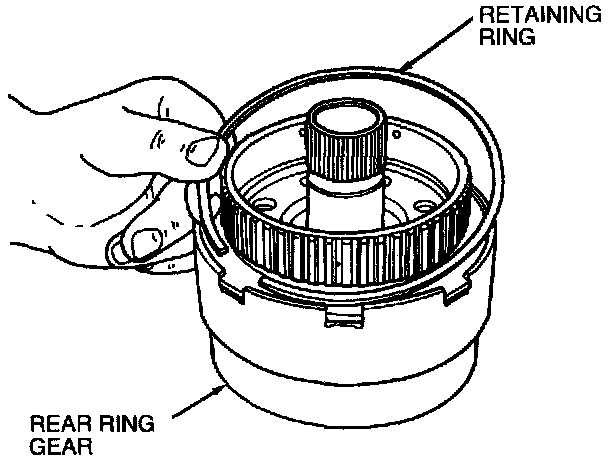

1. Remove retaining ring.

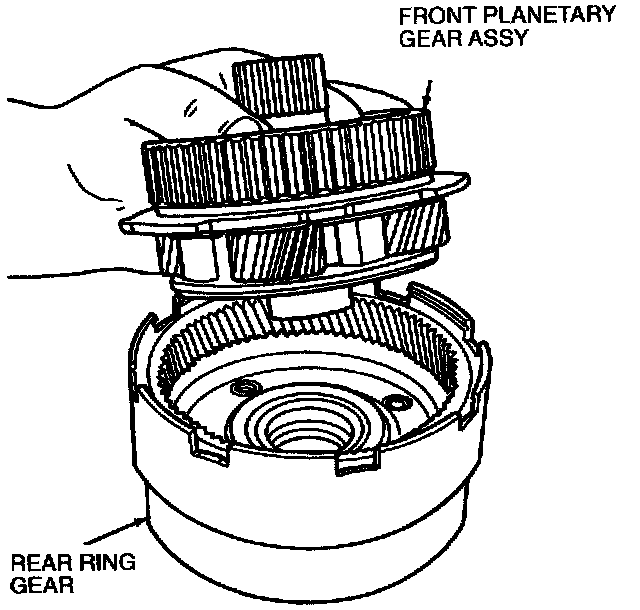

2. Remove front planetary gear assembly. Clean and inspect for looseness and discoloration of pinion gears or wear on bearings. Service as required.





3. Remove No. 13 needle bearing.

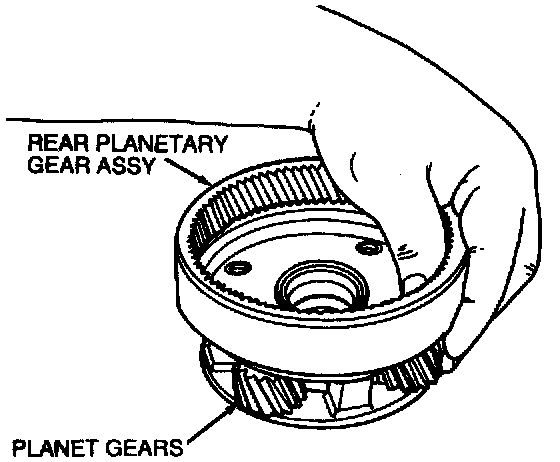

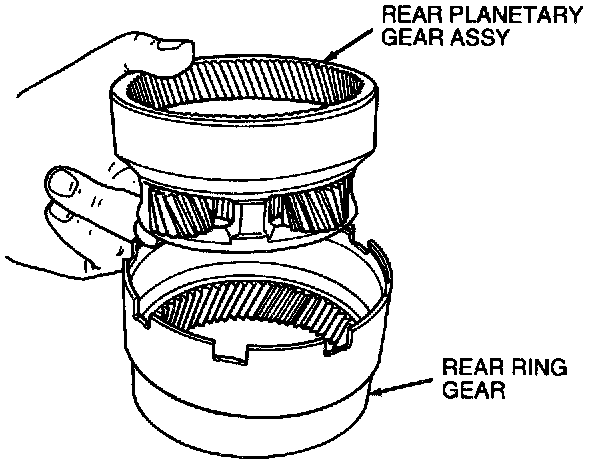

4. Remove rear planetary gear assembly from shell and rear ring gear assembly.





5. Clean rear planetary gear assembly and inspect for looseness and/or discoloration of planet gears or wear on bushings or bearings. Service as required.
