Assembly

ASSEMBLY

1. Install rear planetary gear assembly into rear ring gear.

2. Install No. 13 needle bearing to rear ring gear with black side of bearing facing up.

3. Install front planetary gear assembly into rear ring gear.

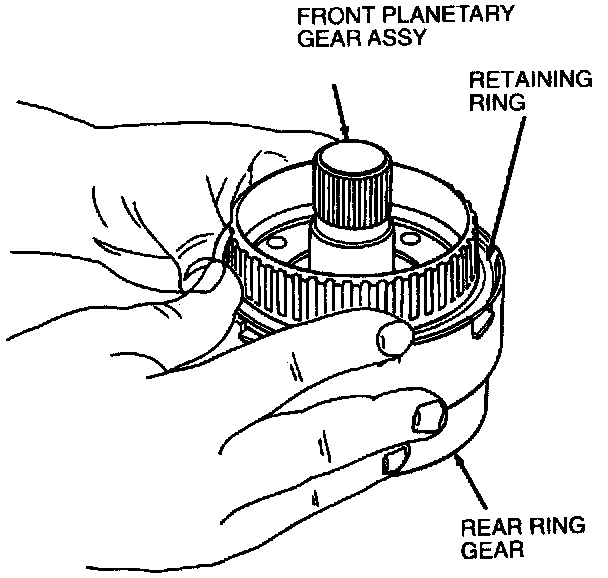

4. Install retaining ring to rear ring gear.

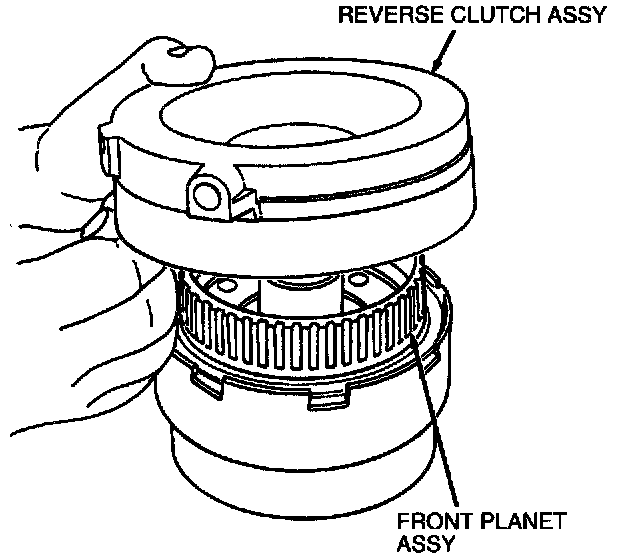

5. Install the reverse clutch assembly over the front planetary assembly.

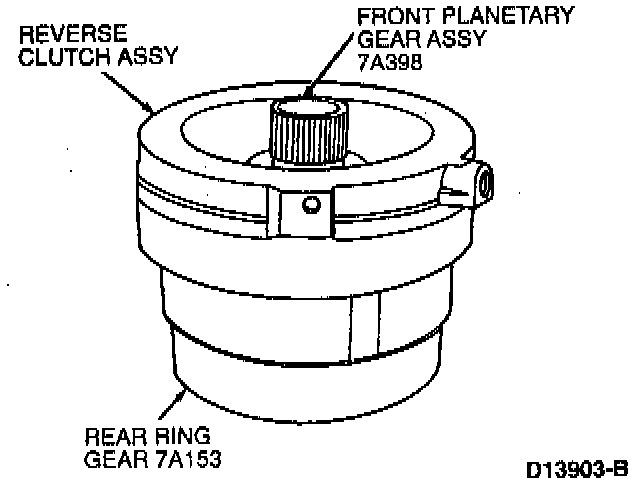

6. Make sure the reverse clutch assembly is fully seated.

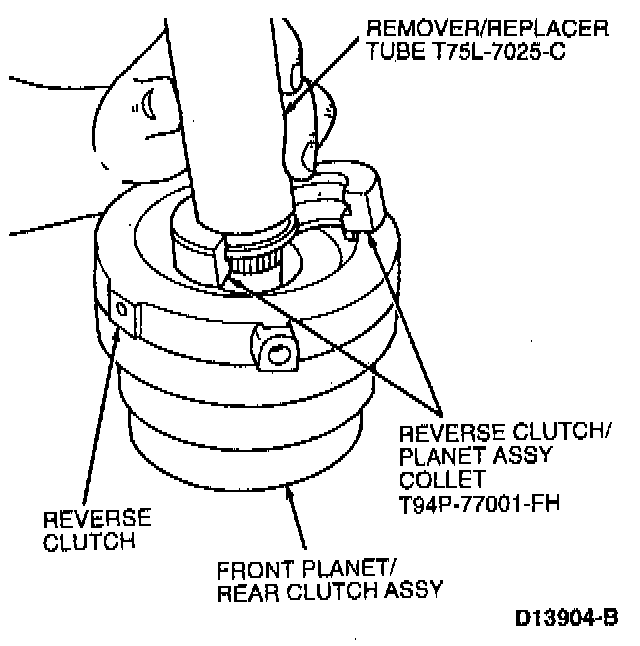

7. Install Remover/Replacer Tube T75L-7025-C and Reverse Clutch/Planet Assembly Collet T94P-77001-FH over front planet and into rear clutch assembly.

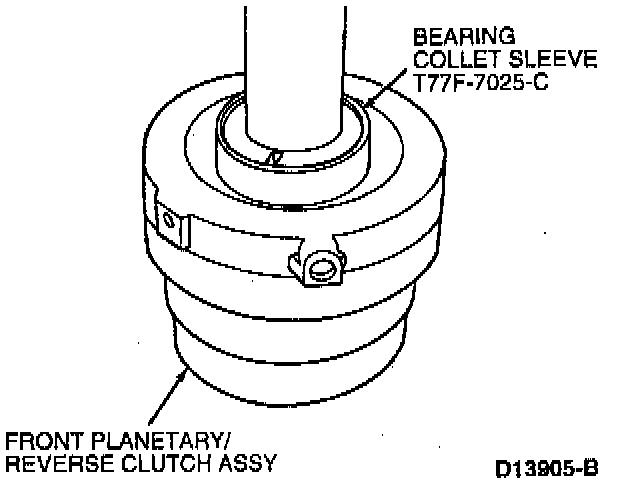

8. Install Bearing Collet Sleeve T77F-7025-C. This assembly is now ready for re-assembly in case later.
