Disassembly

Pump Assembly, (Part 1 Of 2):

Pump Assembly, (Part 2 Of 2):

DISASSEMBLY






1. Remove two T-30 Torx bolts retaining valve body separator plate to pump housing





2. Remove pump housing to valve body separator plate and discard gaskets.

Pump Assembly Check Ball Location:

3. Remove check ball.

NOTE: Be sure to note location of check ball.

Pump Assembly Check Ball Location:

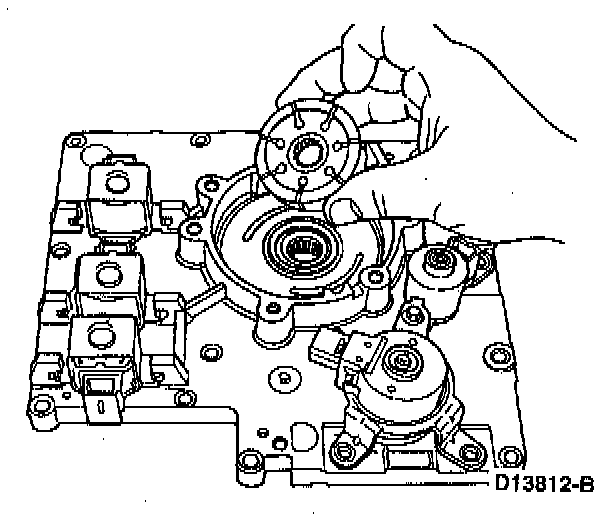

4. Remove two bolts retaining pump cover to pump housing and remove cover.





5. Remove bore ring spring by prying spring out of housing, using the cast shoulder as a leverage point.

WARNING: Use extreme caution when removing spring to prevent personal injury.

CAUTION: Place a piece of cardboard or suitable material under screwdriver to prevent damage to housing gasket surface. Do not scratch or damage any machined surface.






6. Remove outer vane support retaining pin.





7. Remove metal bore ring side seal and bore ring and side seal support (O-ring) from pump ring. Discard O-ring.





8. Remove and discard pump bore ring radial seal and radial seal support.





9. Remove top pump vane support ring.





10. Remove outer pump bore ring.





11. Remove seven vanes from rotor.





12. Remove rotor.





13. Remove bottom pump vane support ring.





14. Remove one bolt, and Electronic Pressure Control (EPC) solenoid retaining ring and solenoid. Remove and discard O-rings.





15. Remove Torque Converter Clutch (TCC) solenoid. Remove and discard O-rings.





16. Remove three shift solenoids by pressing tab with small screwdriver. Twist solenoids and lift. Remove and discard O-rings.

NOTE: Shift solenoids are interchangeable. Take note of connector orientation.
