Driven Sprocket/Turbine Shaft

DISASSEMBLY

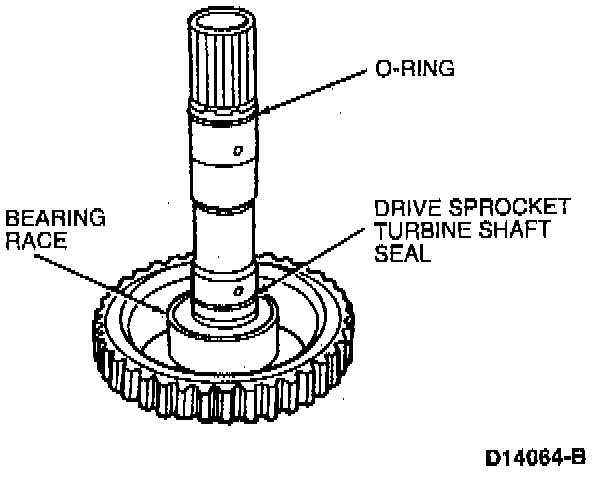

1. Remove and discard drive sprocket/turbine shaft seal and O-ring.
2. Inspect bearing race for wear.

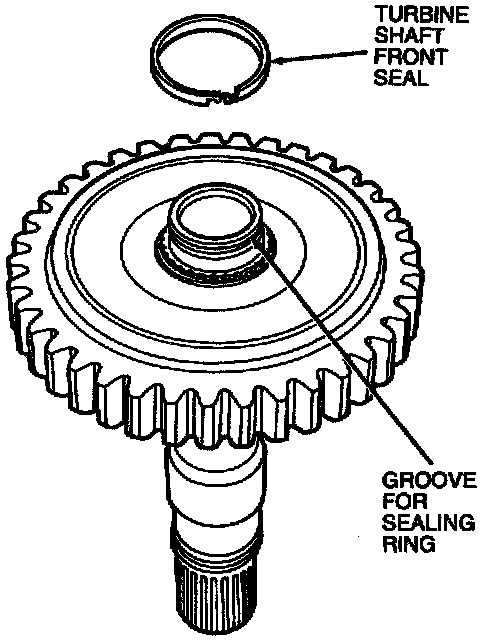

3. Remove and discard turbine shaft front seal.

ASSEMBLY






1. Install new drive sprocket/turbine shaft seal and O-ring.

Seal Ring Installation:

CAUTION: Seals and O-rings must be installed correctly.

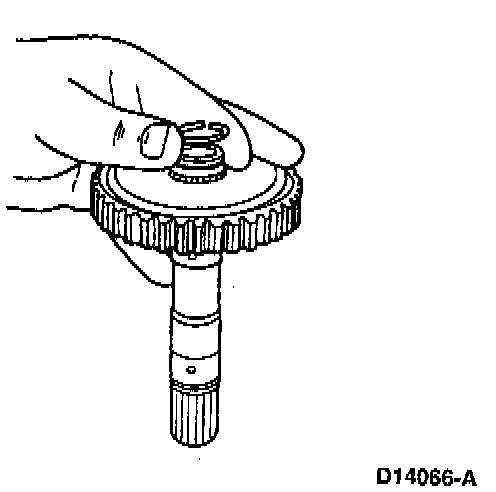

2. Install new turbine shaft front seal.

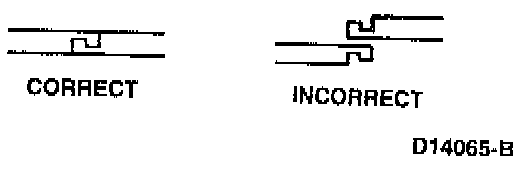

CAUTION: Seal rings must be installed correctly.
