AX4S

DISASSEMBLY

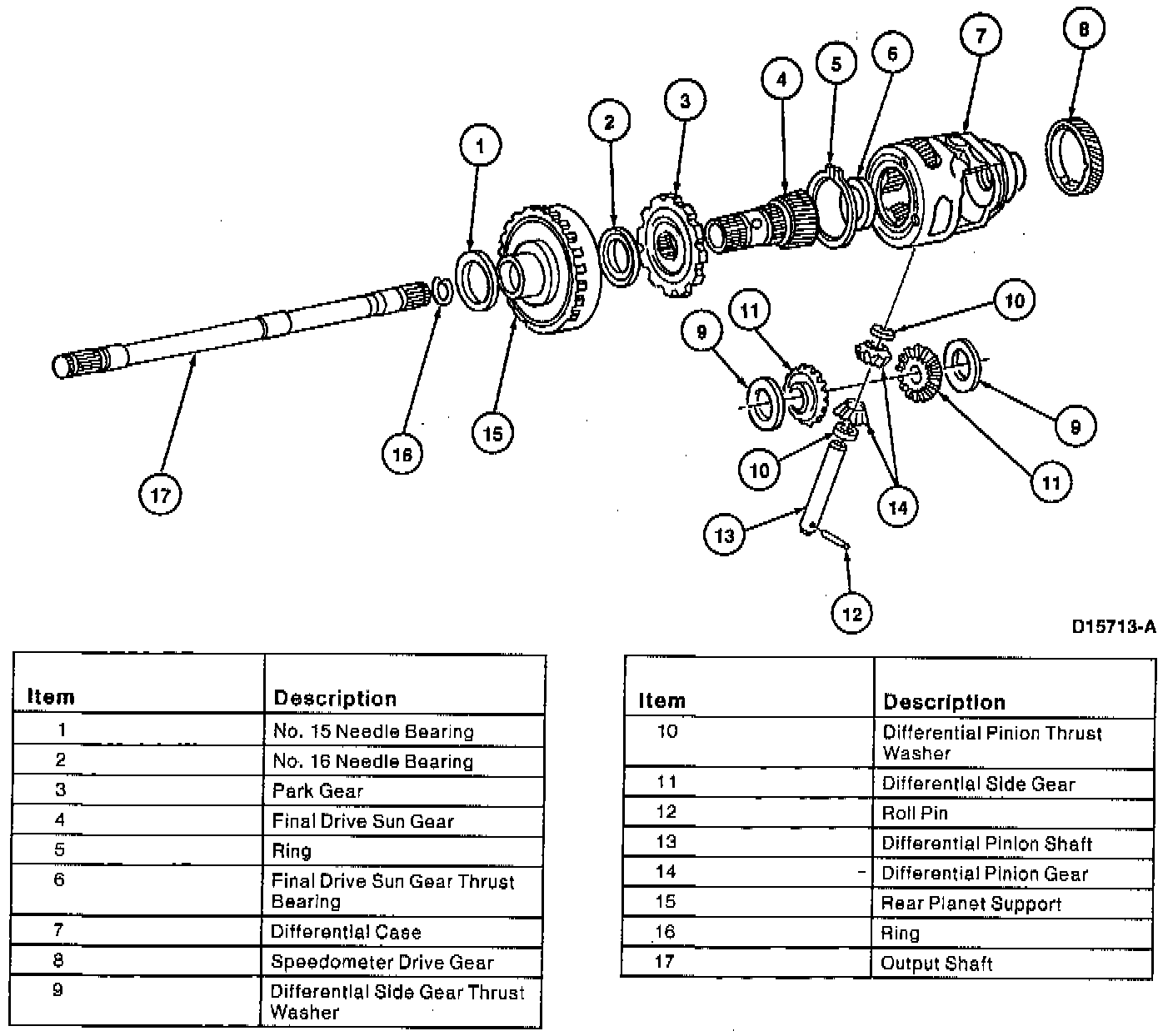

1. Remove rear planet support, No. 15 needle bearing, park gear, No. 16 needle bearing and final drive sun gear by lifting off.

2. Check to be sure hole in bushing in rear planet is aligned with lubrication passage. If not, replace support, as bushing is not serviced.

3. Remove seal and discard.
4. Install rear lubrication tube seal using Rear Lube Tube Seal Replacer T91P-76085-A.

5. Check snap ring to verify that it is fully seated in its groove.

6. If necessary remove speedometer drive gear by gently prying off with a suitable tool.

ASSEMBLY

1. If removed, position speedometer drive gear and gently tap into place using soft-faced hammer. Be sure gear is fully seated.

2. Slide final drive sun gear, No. 16 needle bearing, park gear, No. 15 needle bearing and rear planet support into place.
