Disassembly

Reverse Clutch - Disassembled View:

DISASSEMBLY

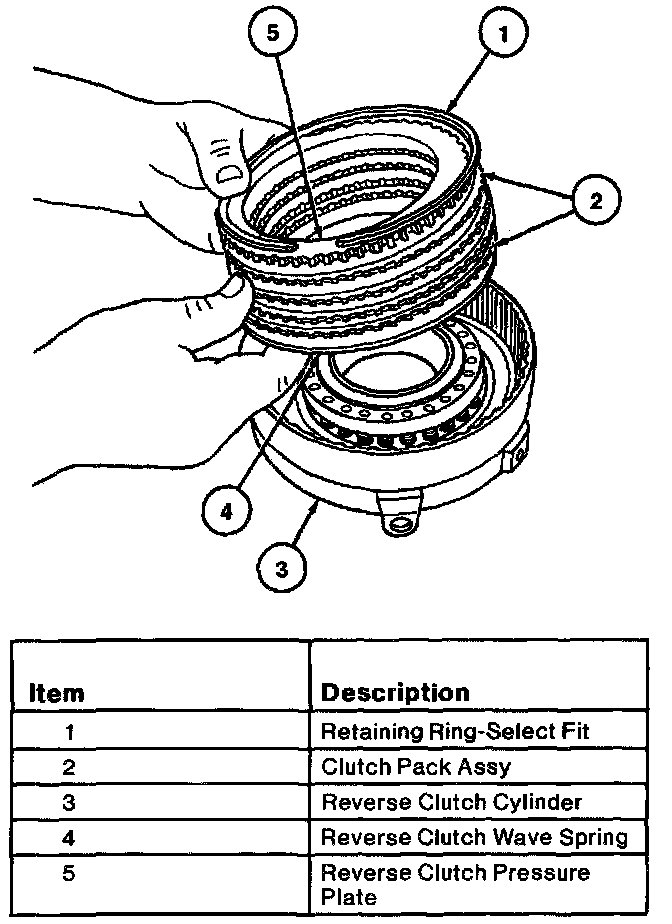

1. Remove reverse clutch pressure plate retaining ring, clutch pressure plate, clutch pack and reverse clutch wave spring.

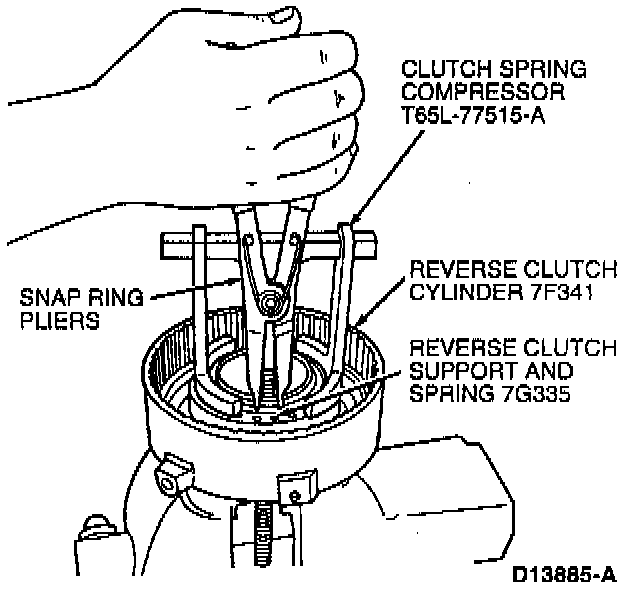

2. Using Clutch Spring Compressor T65L-77515-A, compress reverse clutch support and spring. Use snap ring pliers to remove the retaining ring.

CAUTION: Do not fully compress return spring.

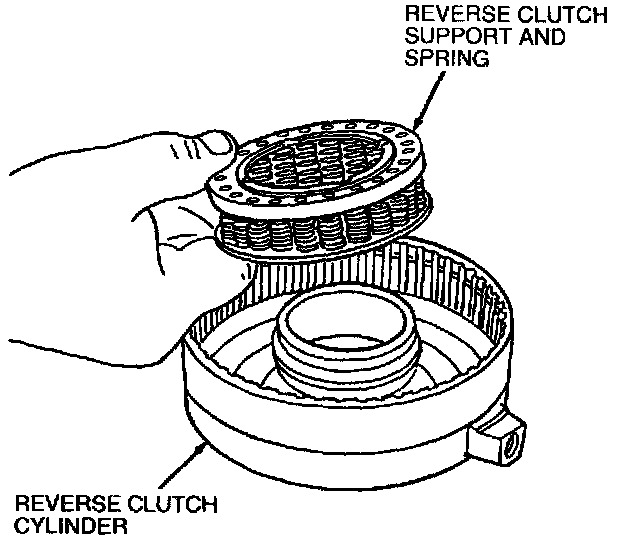

3. Remove tool. Remove clutch spring compressor and retaining ring. Remove reverse clutch support and spring from reverse clutch hub.

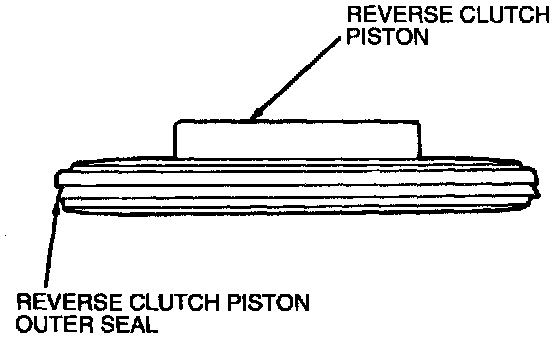

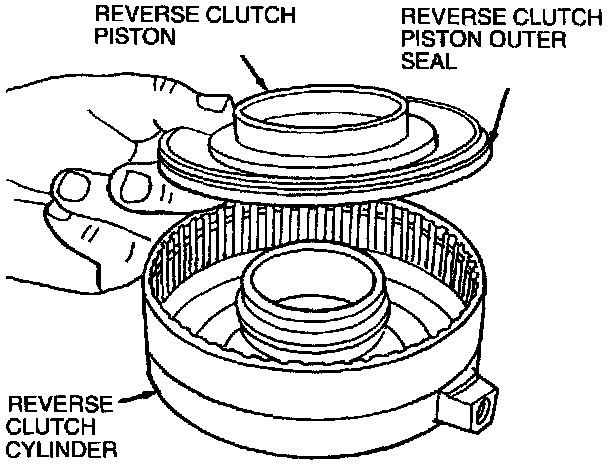

4. Lift out clutch piston. Remove and discard reverse clutch piston outer seal. Clean piston.

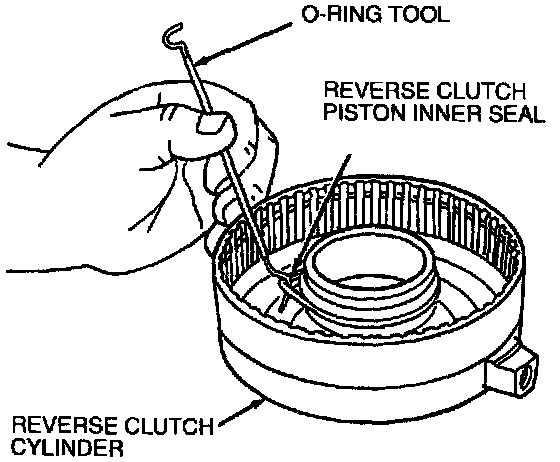

5. Remove and discard reverse clutch piston inner seal. Clean reverse clutch cylinder.

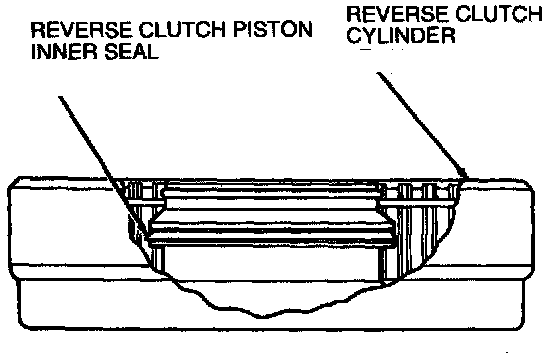

NOTE: Lip on seal faces toward bottom cylinder.
