Assembly - With AX4N

Low-Intermediate Clutch Cylinder - Disassembled View (AX4N):

DISASSEMBLY

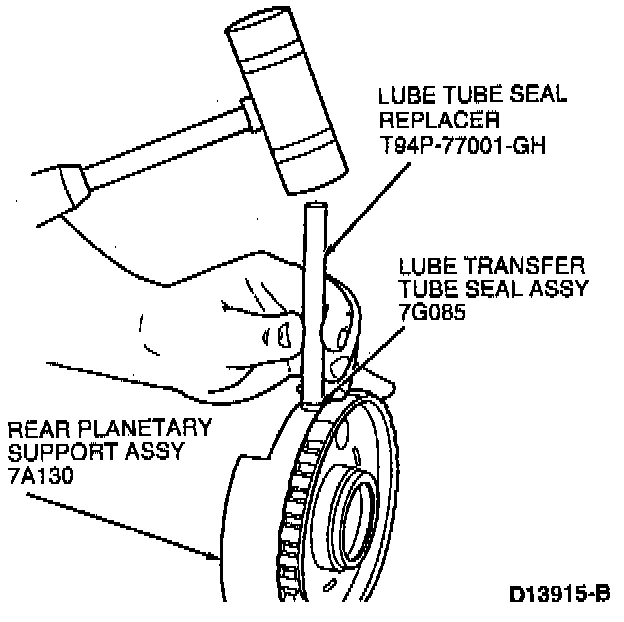

1. install two new rear lube transfer tube seals using Lube Tube Seal Replacer T94P-77001-GH.

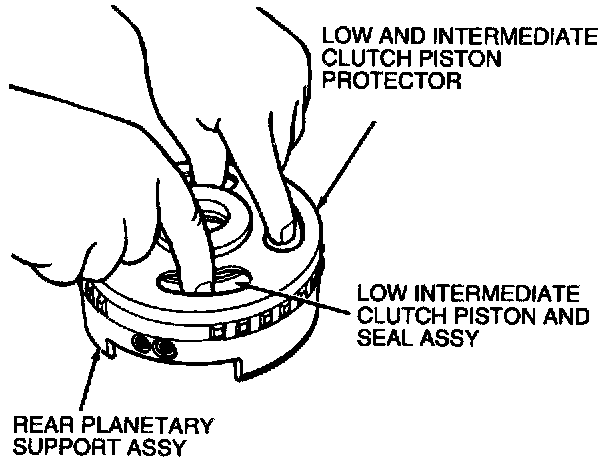

2. Install low-intermediate clutch piston and seal assembly to rear planetary support assembly using Low and Intermediate Clutch Piston Protector T94P-77001-DH.

NOTE: Lightly coat all seals and surfaces with petroleum jelly before piston installation.





3. Install low-intermediate clutch support and spring into intermediate clutch assembly, located in the rear planetary support assembly.





4. Compress low-intermediate clutch support and spring assembly using Clutch Spring Compressor T65L-77515-A. Install retaining ring.

CAUTION: Do not fully compress spring retainer.





5. Install No. 15 plastic spring retainer washer to low/intermediate clutch support and spring.

CAUTION: Make sure locking tabs are snapped over retainer.





6. Install No. 15 sun gear thrust bearing to rear planetary support assembly using petroleum to hold in place.

NOTE: Lip on bearing goes over hub.





7. Turn rear planetary support assembly over. Install select fit No. 16 final drive gear thrust race to rear planetary support assembly using petroleum jelly to hold in place.
