Disassembly

WITH AX4N






DISASSEMBLY






1. Remove clutch pressure plate retaining ring clutch pressure plate, clutch pack assembly and wave spring.

NOTE: Number of clutch plates may vary with application.

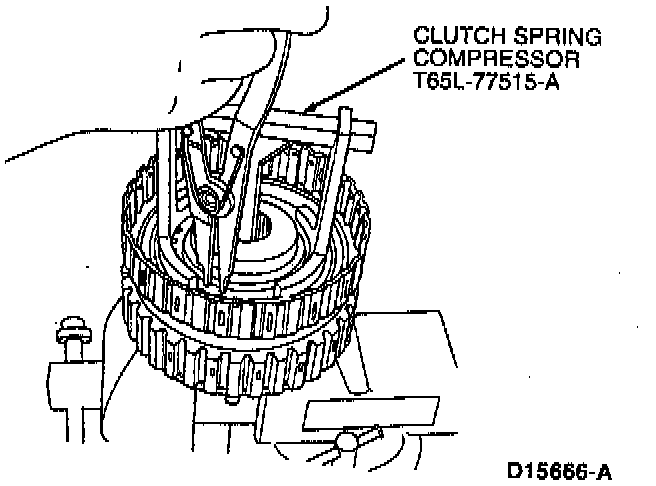

2. Compress intermediate clutch return spring assembly using Clutch Spring Compressor T65L-77515-A. Remove retaining ring.

CAUTION: Do not fully compress spring retainer.





3. Remove intermediate clutch balance piston assembly from intermediate clutch cylinder.

NOTE: Seal is part of piston and is serviced only as an assembly.





4. Remove intermediate clutch return spring assembly.

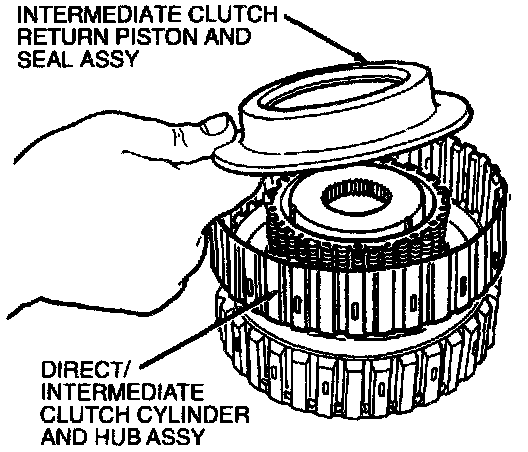

5. Remove intermediate clutch piston and seal assembly from intermediate clutch cylinder.

NOTE: Seal is part of piston and is serviced only as an assembly.





6. Clean and inspect intermediate clutch cylinder. Replace intermediate clutch piston inner seal.
