Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> AX4S >> Trouble Code Descriptions

Trouble Code Descriptions

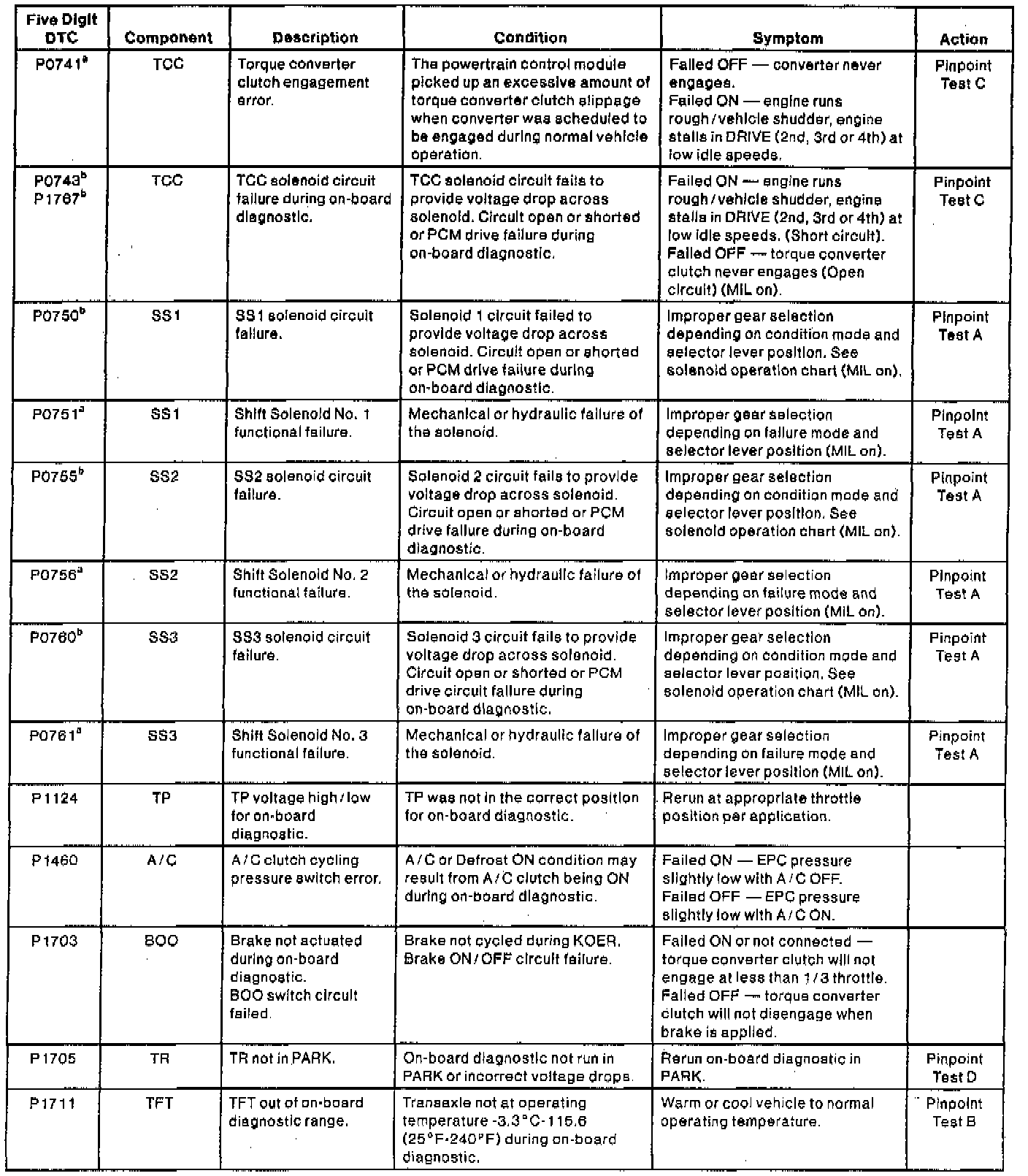

On-Board Diagnostic Trouble Code Description Chart (Part 1 Of 4):

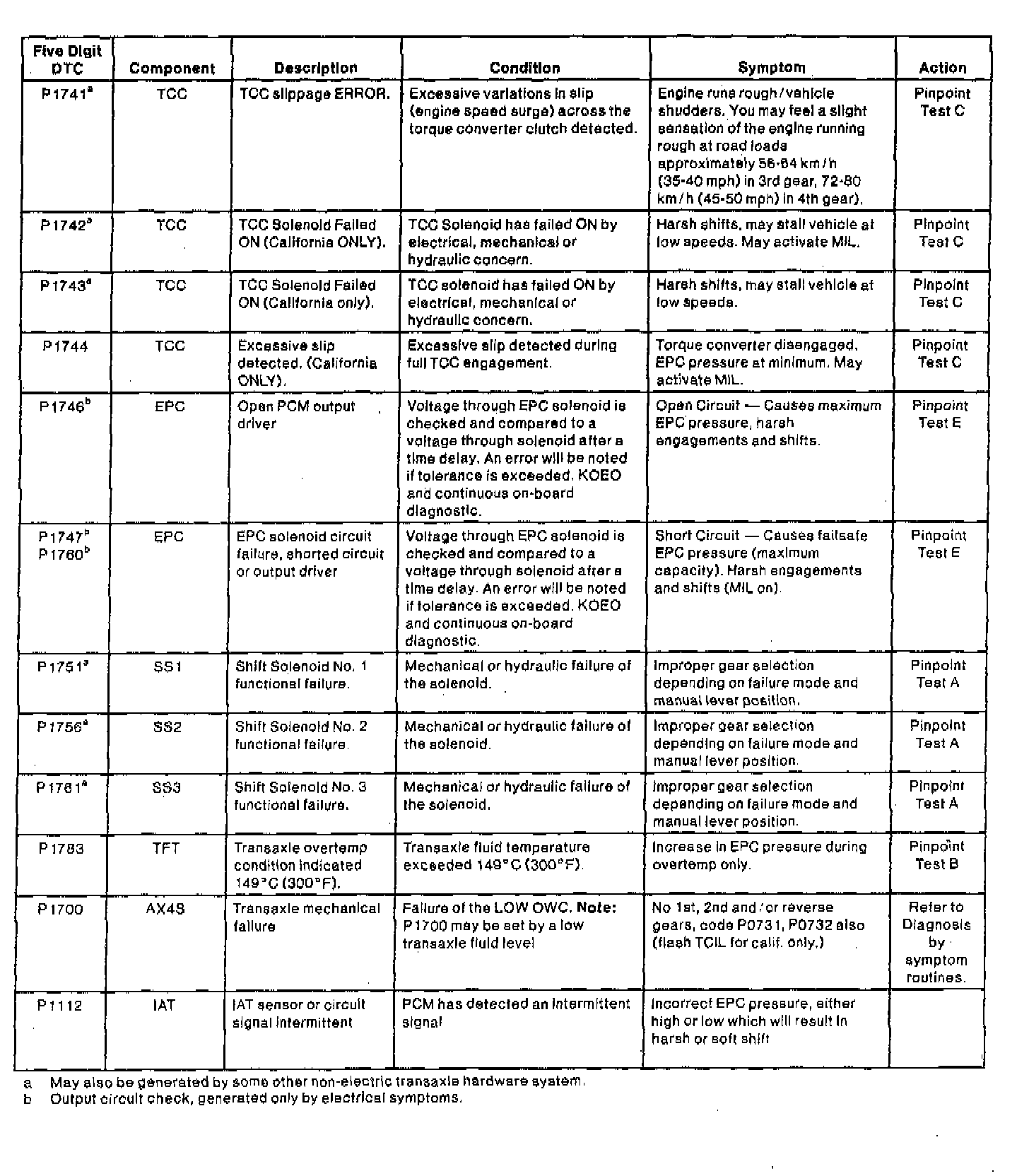

On-Board Diagnostic Trouble Code Description Chart (Part 2 Of 4):

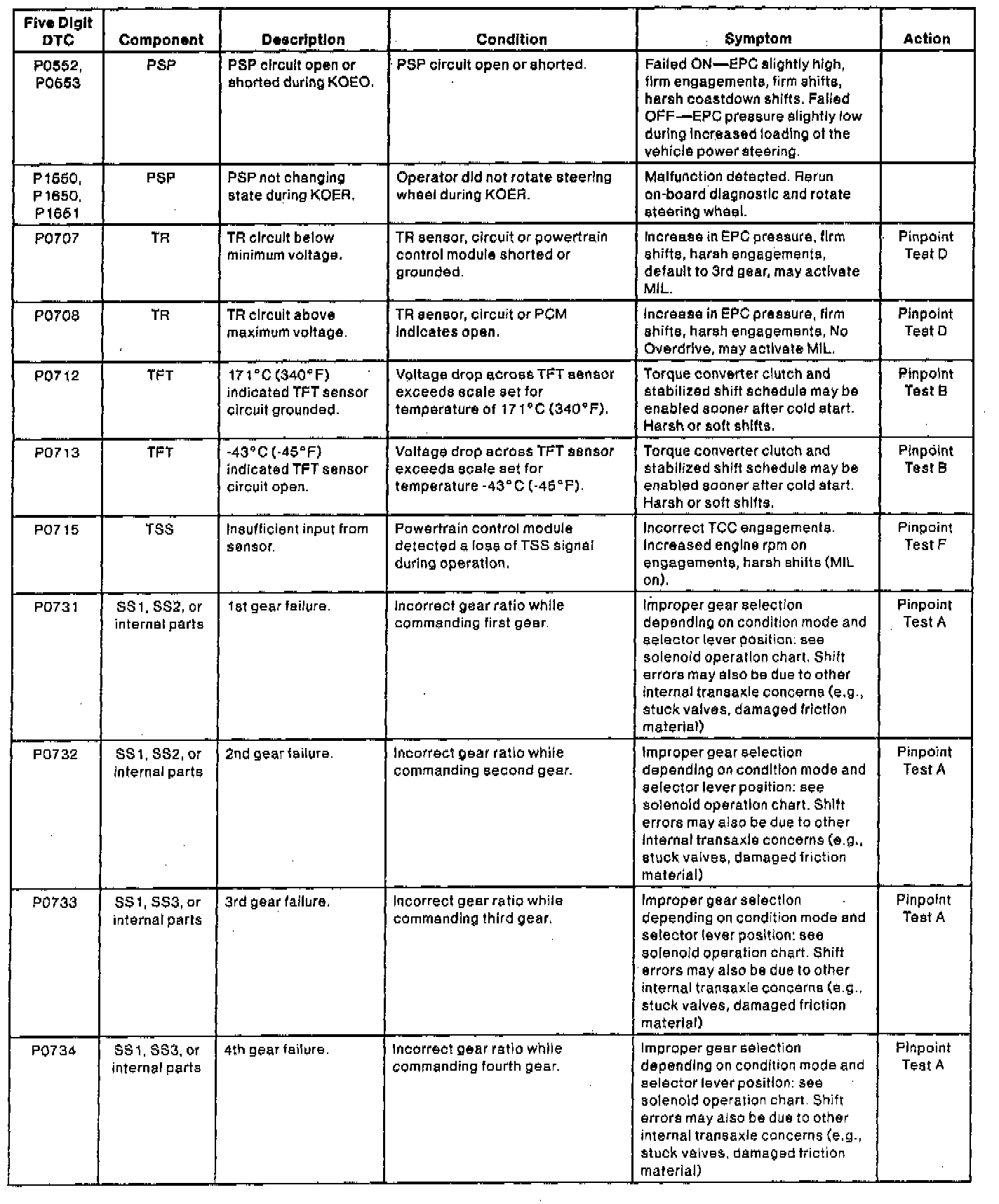

On-Board Diagnostic Trouble Code Description Chart (Part 3 Of 4):

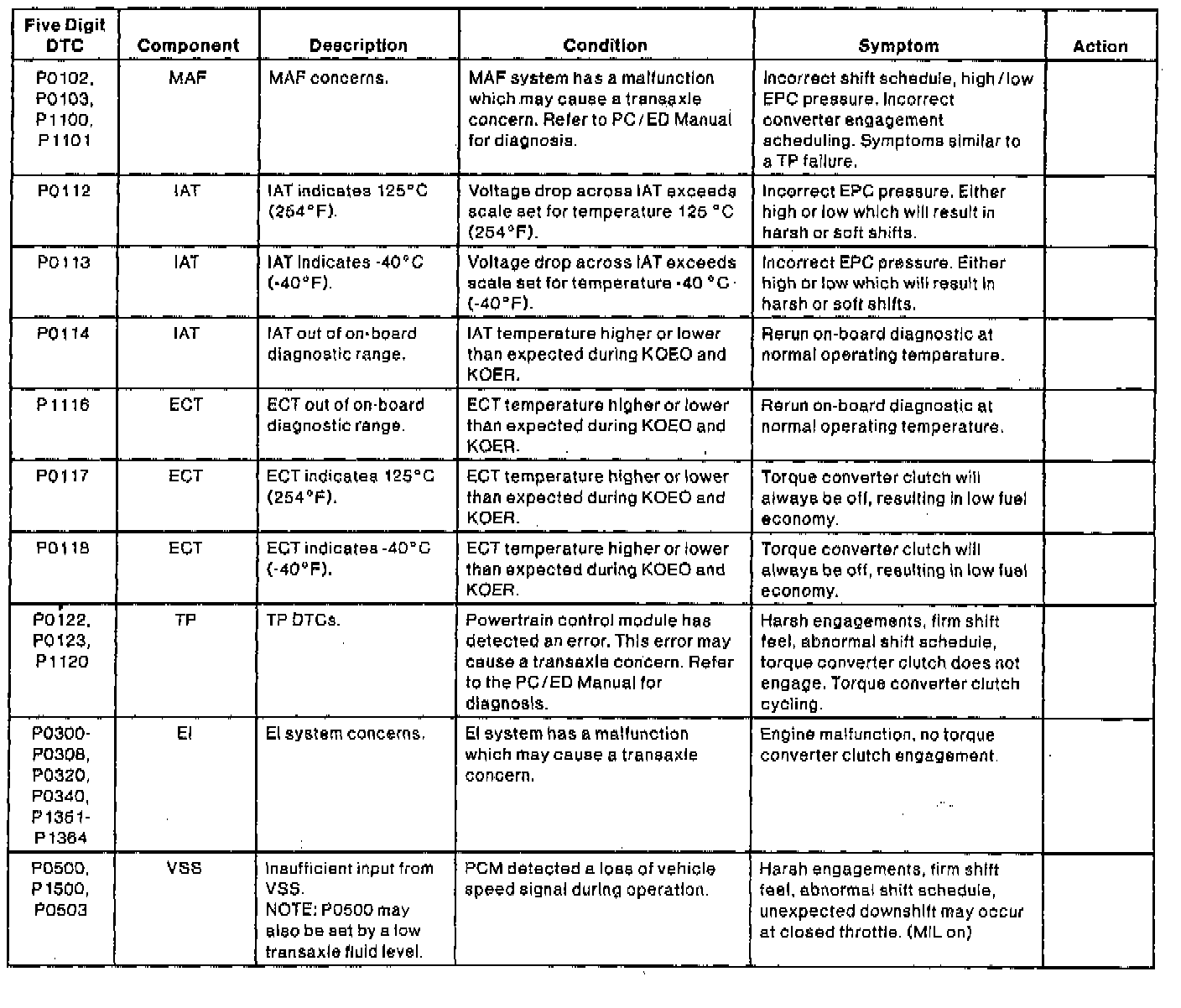

On-Board Diagnostic Trouble Code Description Chart (Part 4 Of 4):
