Pressure, Vacuum and Temperature Specifications

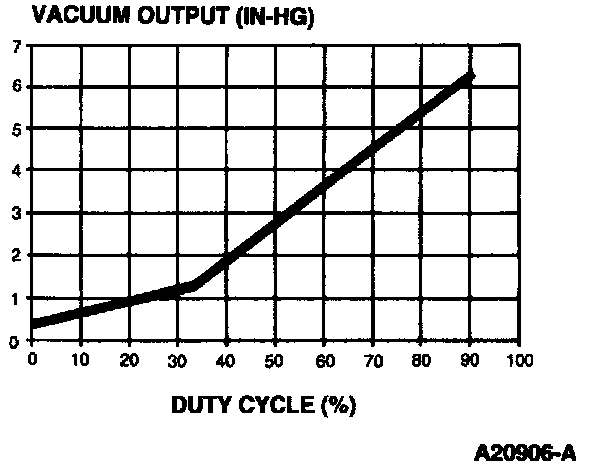

Vacuum Output/Duty Cycle Chart:

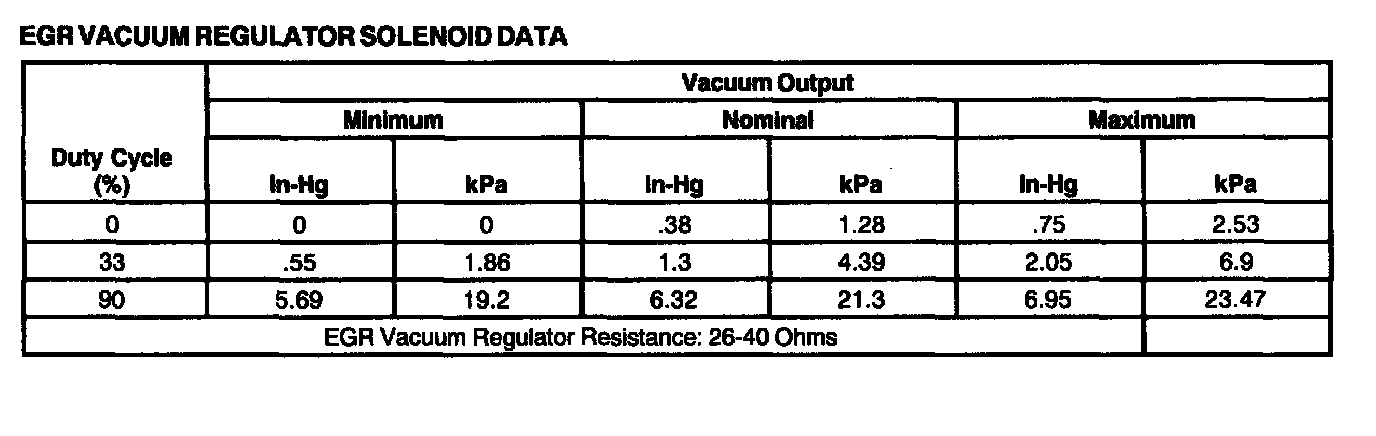

EGR Vacuum Regulator Solenoid Data Chart:
