Turn Signal Flasher: Service and Repair






REMOVAL

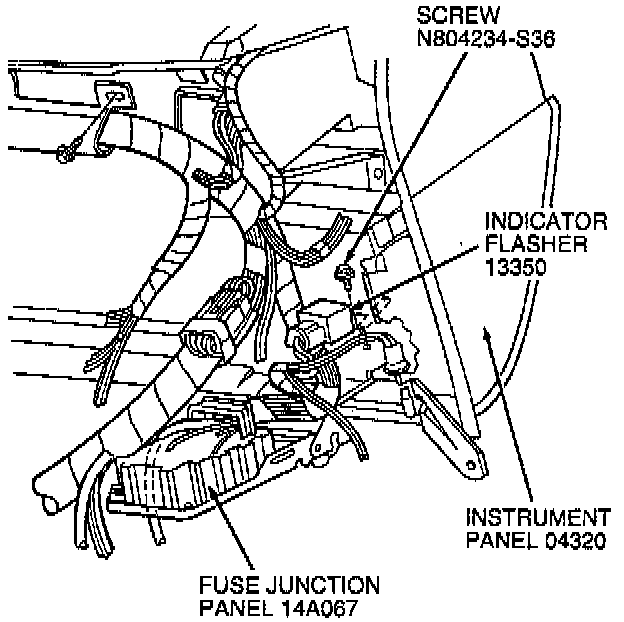

1. Tilt and slide the indicator flasher off the bracket.
2. Disconnect electrical connector and remove indicator flasher from vehicle.
3. Remove the bracket from the new indicator flasher.

INSTALLATION
Follow removal procedure in reverse order.
