Wagon

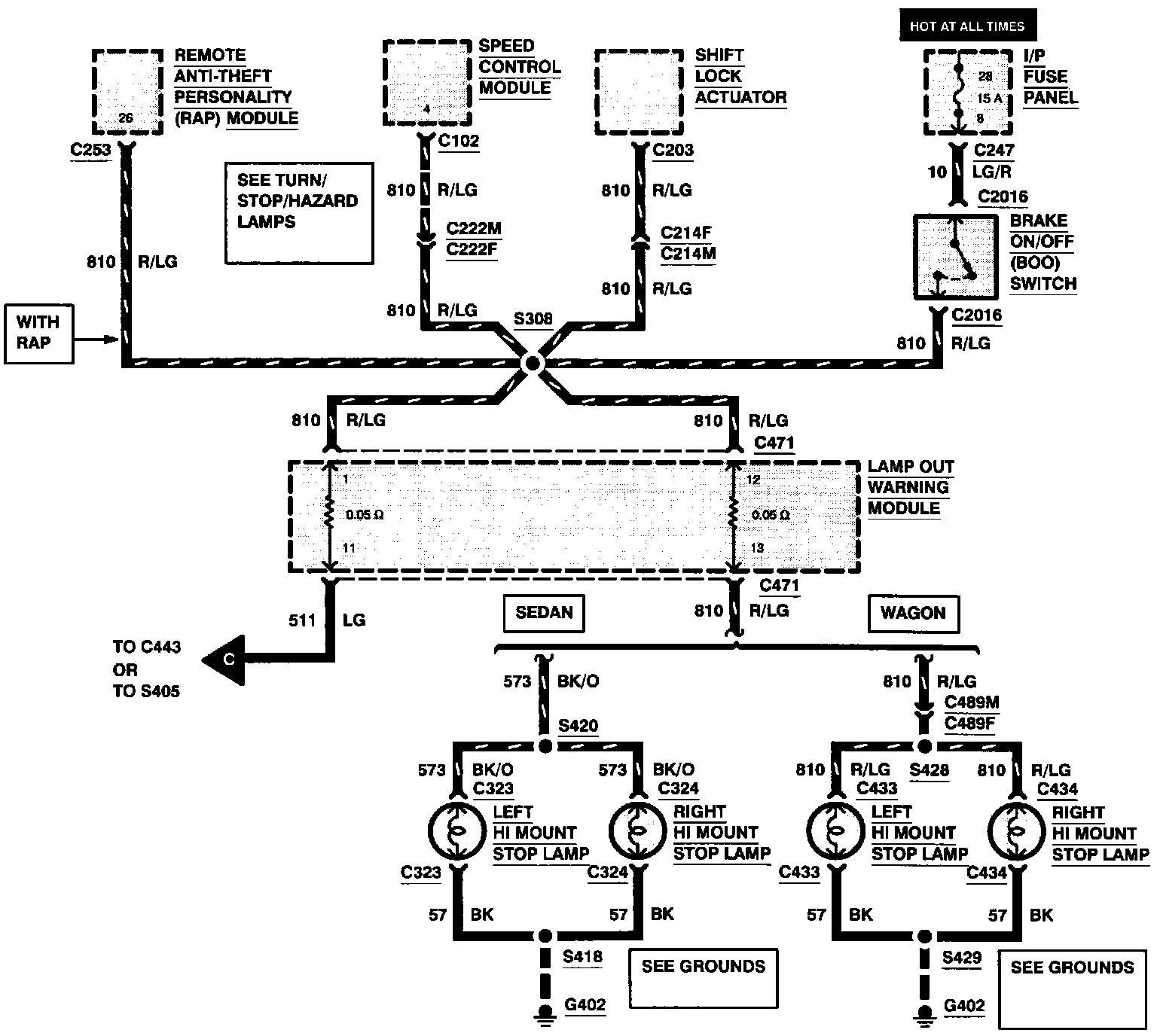

Lamp Out Warning (Part 1 Of 3):

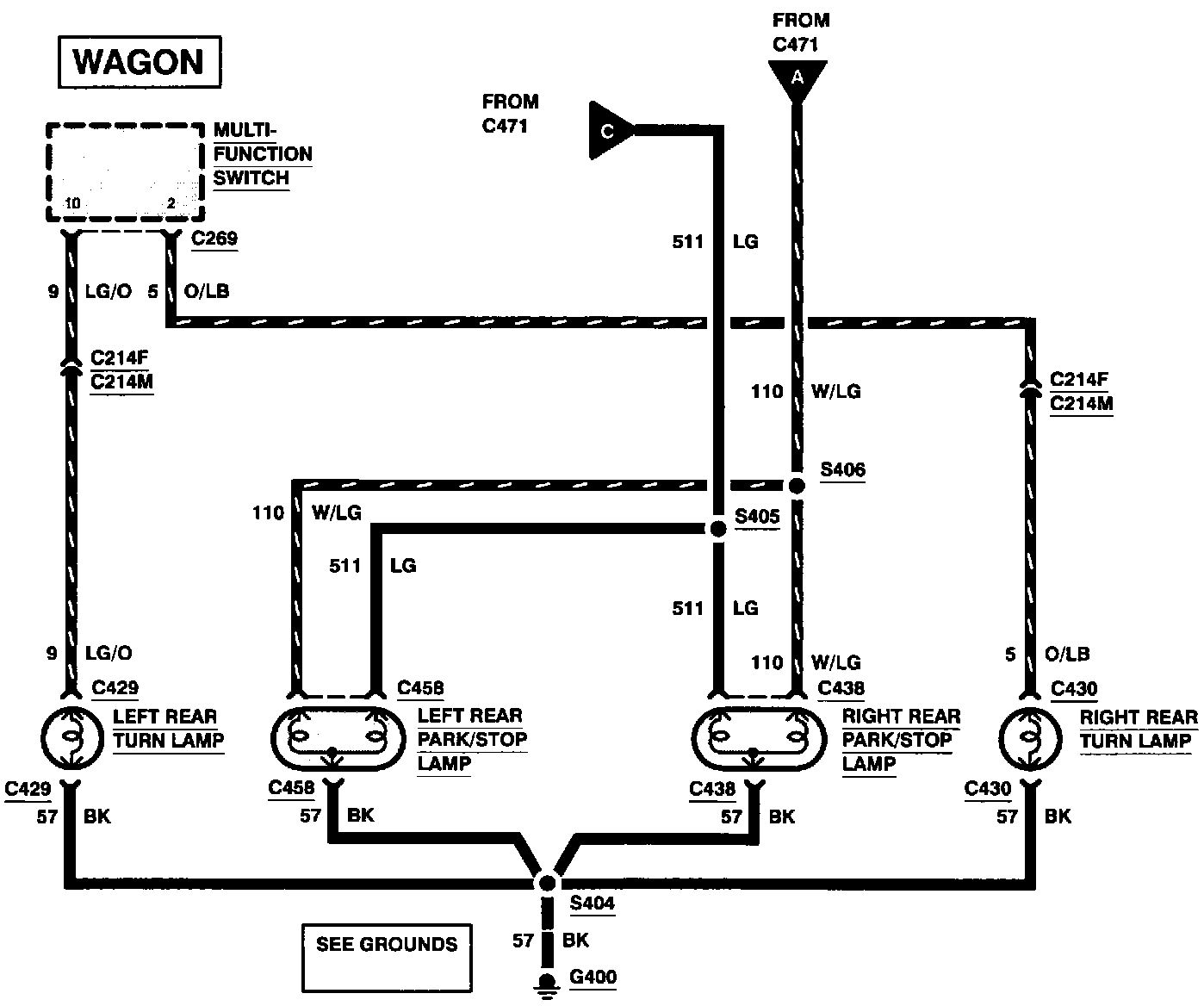

Lamp Out Warning (Part 2 Of 3):

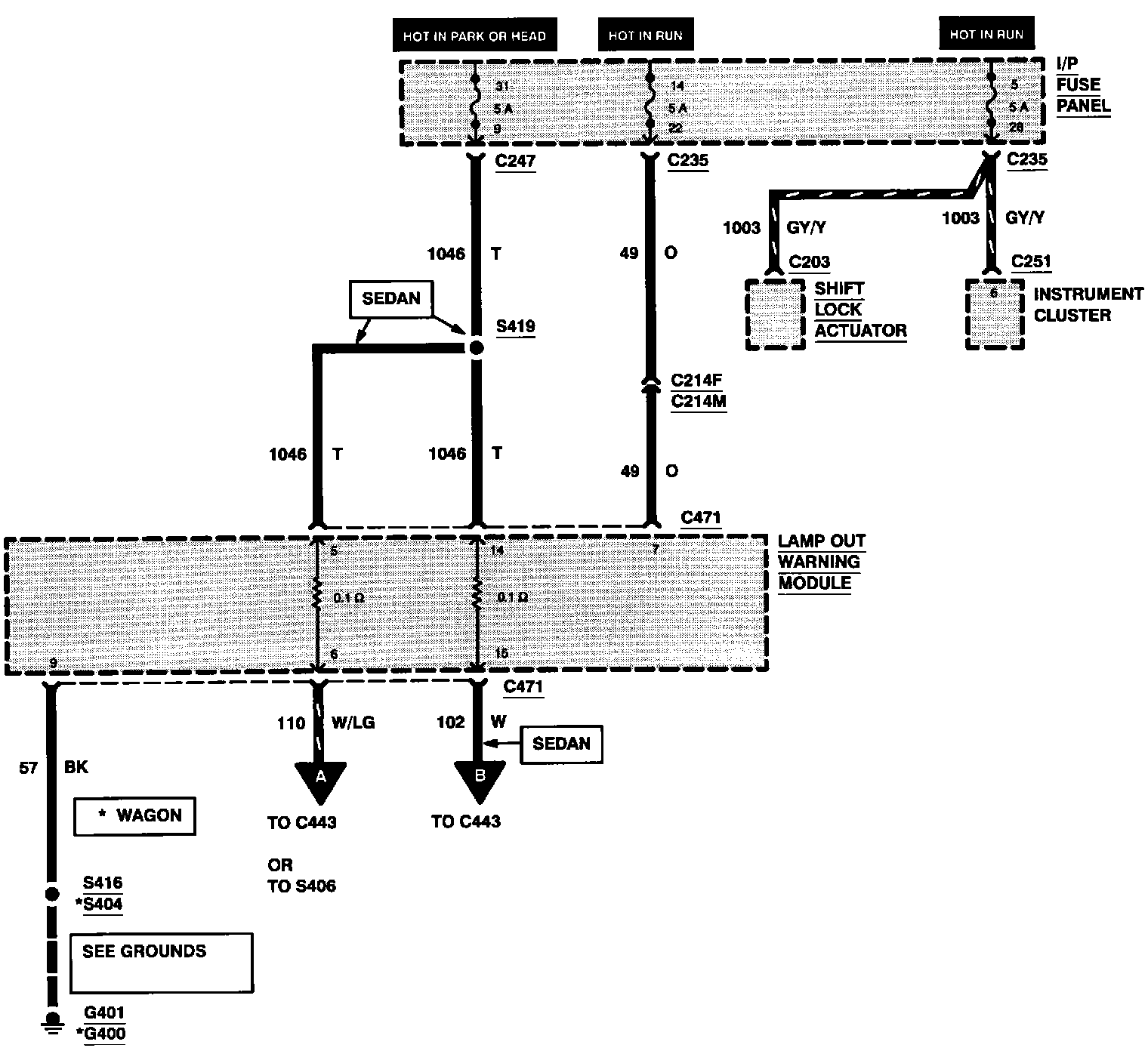

Lamp Out Warning (Part 3 Of 3):
