Wagon

REMOVAL

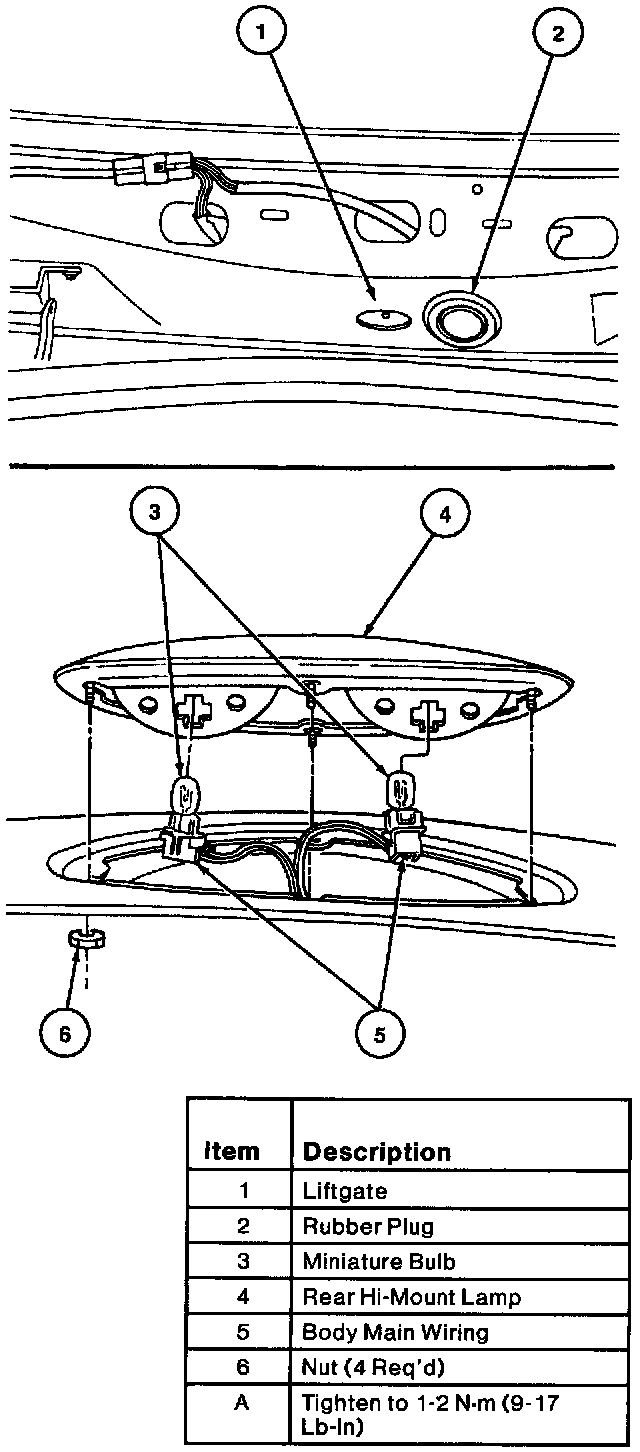

1. Open liftgate. Remove liftgate upper finish trim panel.
2. Remove rubber plug from liftgate.
3. Remove four nuts from rear hi-mount lamp mounting studs.
4. Close liftgate and pull rear hi-mount lamp away from liftgate.
5. Turn body main wiring 1/2 turn counterclockwise and remove from rear hi-mount lamp.
6. Gently pull miniature bulb out of body main wiring.

INSTALLATION
1. Follow removal procedure in reverse order.
2 Tighten nuts to 1-2 Nm (9-17 Lb-In).
