Coupe and Sedan






REMOVAL
1. Remove rear luggage compartment door trim panel.

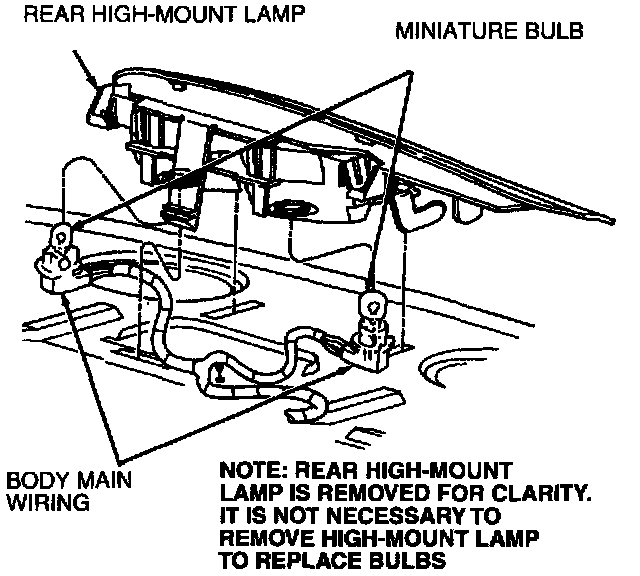

2. Locate rear hi-mount bulb, turn 1/2 turn counterclockwise and remove from rear hi-mount lamp.
3. Gently pull miniature bulb out of body main wiring.

INSTALLATION
1. Follow removal procedure in reverse order.
