General System Diagnosis

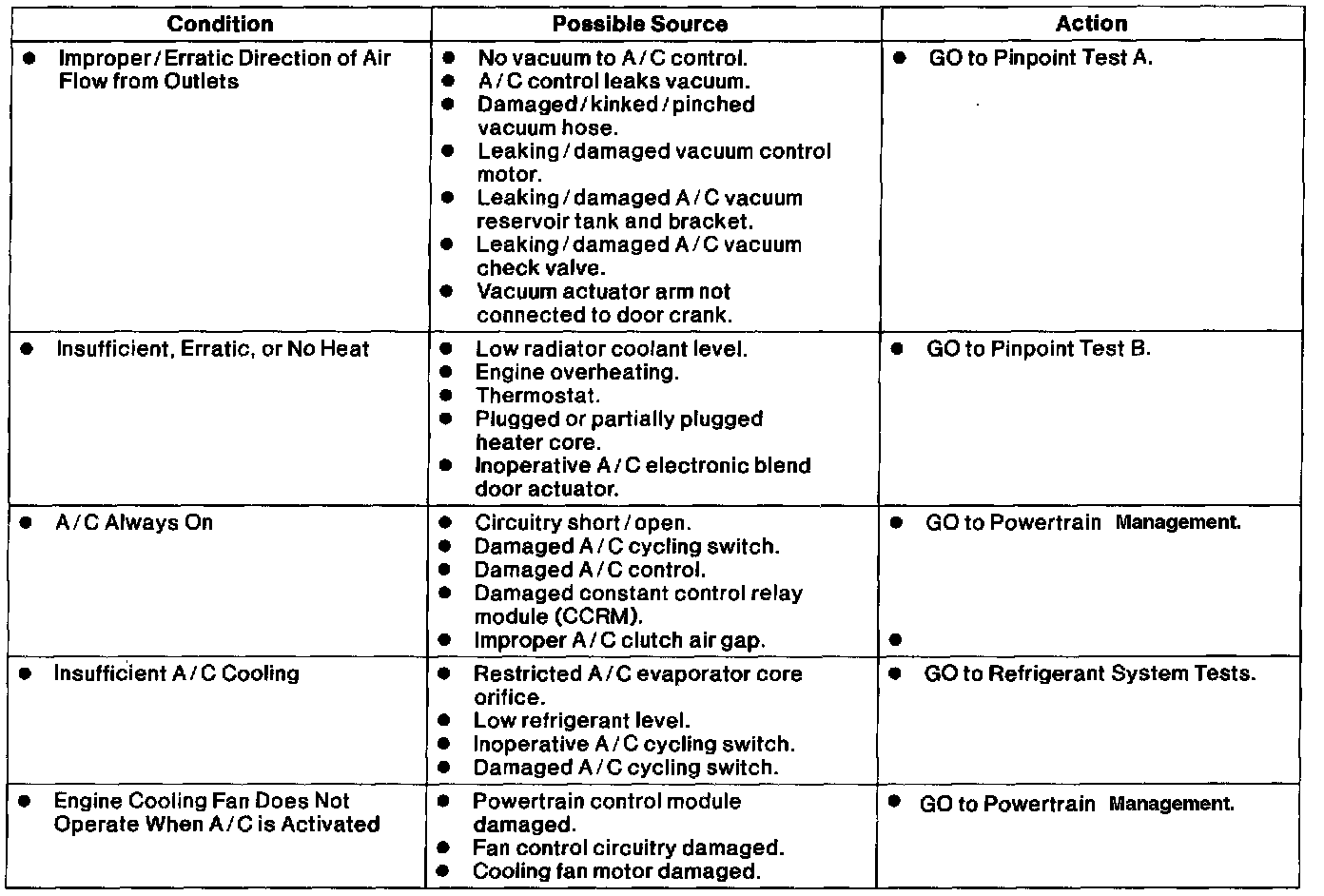

This symptom chart contains concerns common to both the manual and electronic automatic temperature control systems.

For Manual A/C System specific symptoms refer Manual Climate Control

For Electronic Automatic Temperature Control (EATC) specific symptoms refer Electronic Climate Control

Use Rotunda 73 Digital Multimeter 105-R0051 or equivalent to perform pinpoint tests.
