Blower Motor Switch: Service and Repair

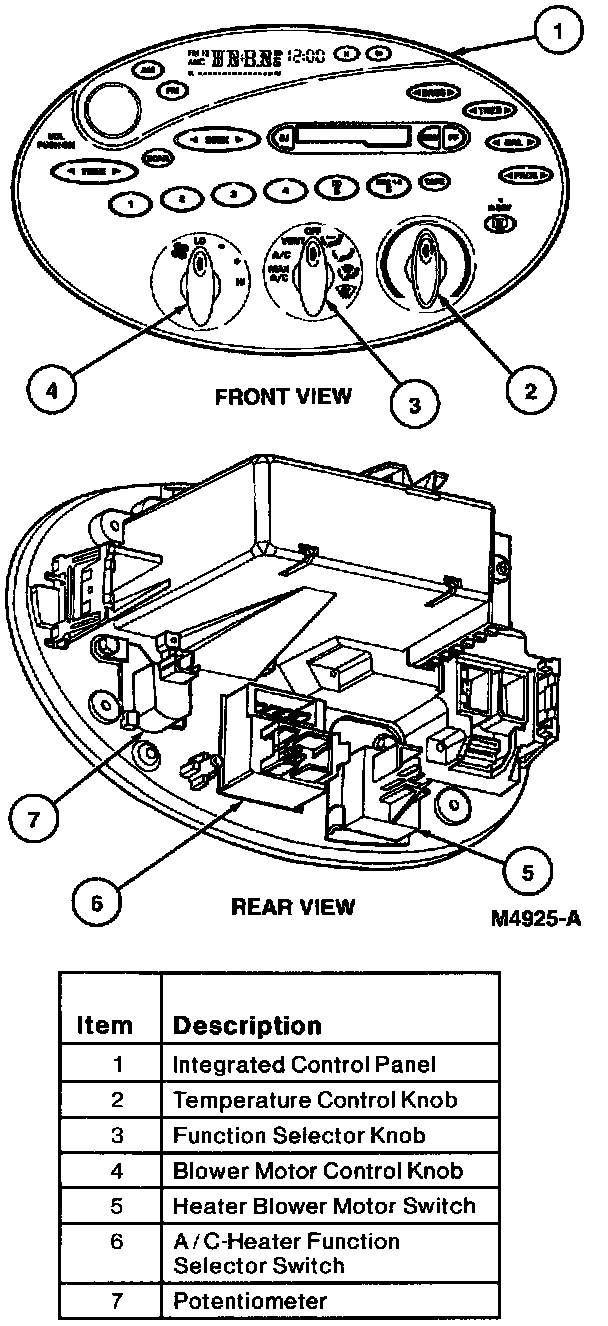

REMOVAL
1. Remove climate control assembly.
2. Remove knob.
a. Rotate knob to straight up and down position, grasp knob and pull rearward.

NOTE: Do not pry the knob off its shaft. Damage to the surface of the integrated control panel may result.

b. If the D-shaped spring clip which sits inside the back end of knob remains on shaft when knob is pulled off, remove it with needle nose pliers and install on knob.
3. Remove retaining screw.
4. Remove heater blower motor switch.

INSTALLATION
1. Follow removal procedure in reverse order.
a. To install knob, align its keyed surface with mating surface on shaft, rotate to straight up and down position and press knob forward unit fully seated in control shaft.
