With Automatic Temperature Control

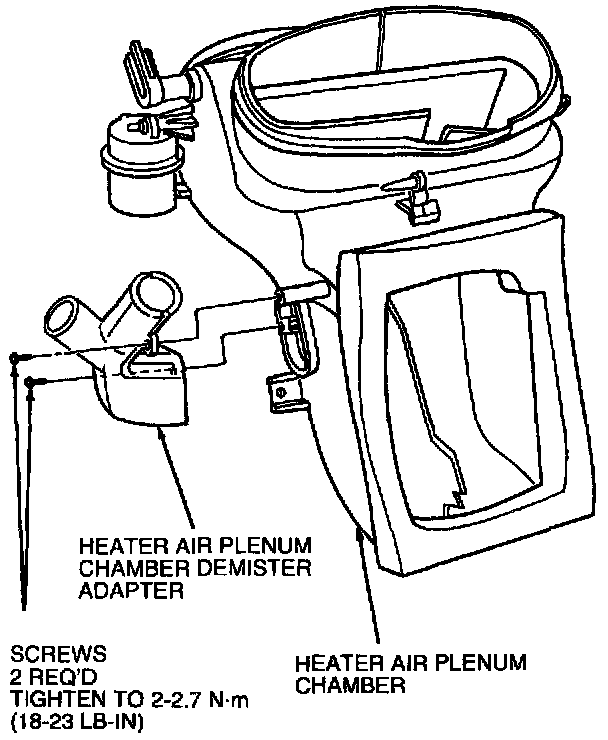

HEATER AIR PLENUM CHAMBER DEMISTER ADAPTER






REMOVAL
1. Remove instrument panel, please refer to Body and Frame/Interior Trim/Dash Board/Service and Repair/ Service and Repair
2. Disconnect A/C side window demister and hoses from A/C plenum demister adapter.
3. Remove two screws retaining A/C plenum demister adapter to the heater air plenum chamber assembly.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining screw to 2.0-2.7 N.m (18-23 Lb-In).
