Integrated Control Panel

REMOVAL
1. Disconnect battery ground cable.
2. CAUTION: Do not use excessive force when installing radio removing tool, as this will damage retaining clips and make radio chassis removal difficult.

Install Radio Removing Tool T87P-19061-A into integrated control panel face plate. Push tools in approximately 38 mm (1.5 inches) to release retaining clips.





3. Apply a light spreading force on tools and pull integrated control panel out of instrument panel.

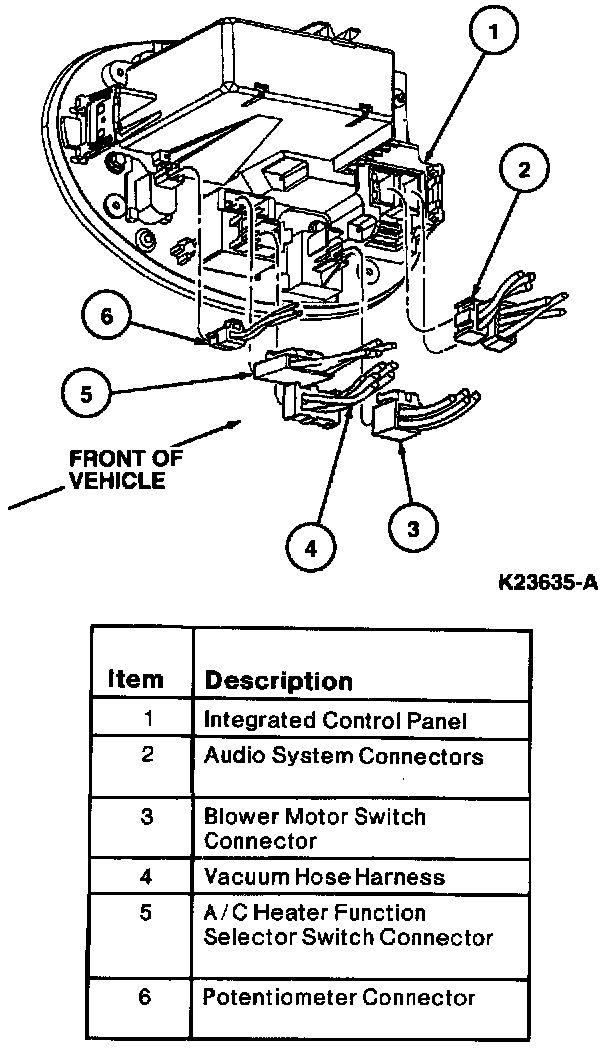

4. Disconnect wiring connectors and vacuum hose harness.

INSTALLATION
1. Connect wiring connectors and vacuum hose harness to integrated control panel.
2. Slide integrated control panel into instrument panel, making sure that rear support is engaged on upper support rail.
3. Push integrated control panel inward until retaining clips are fully engaged.
4. Connect battery ground cable.
