Blower Motor Resistor: Service and Repair

REMOVAL

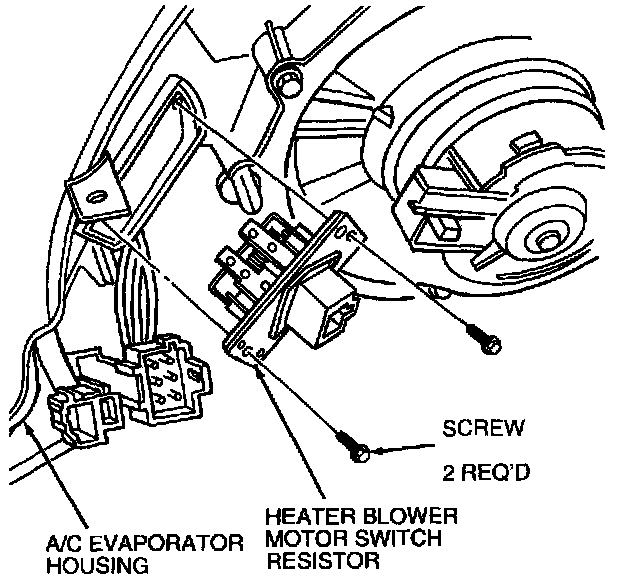

1. Disengage instrument panel insulator from instrument panel reinforcement and remove from instrument panel.
2. Disconnect wire harness connector from heater blower motor switch resistor assembly.





3. Remove two retaining screws and remove heater blower motor switch resistor from A/C evaporator housing.

INSTALLATION
1. Follow removal procedure in reverse order.
