Automatic Transmission/Transaxle
>>
Fluid Line/Hose, A/T
Fluid Line/Hose, A/T

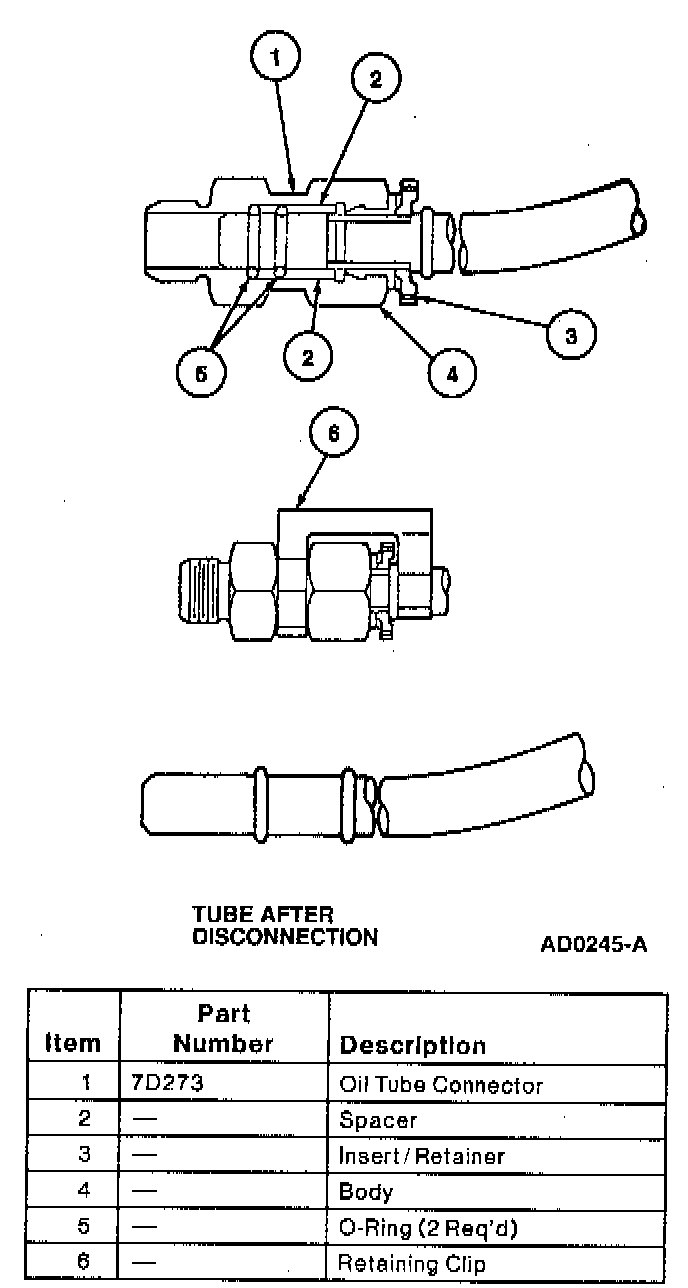

Fluid Cooler Tubes Using Push Connect Fittings - At Transaxle:
