Sedan

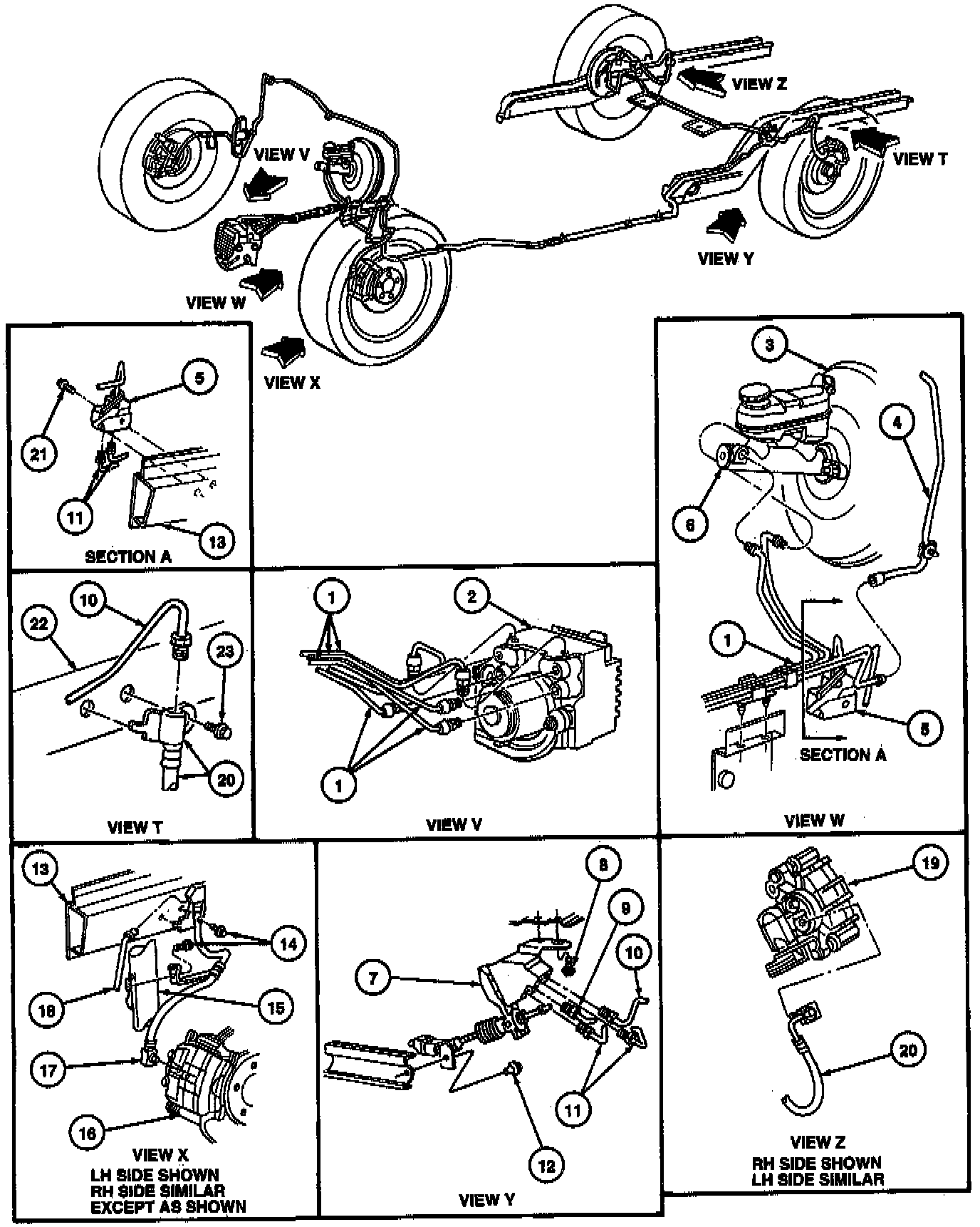

Brake Hydraulic Components, Sedan (Part 1 Of 2):

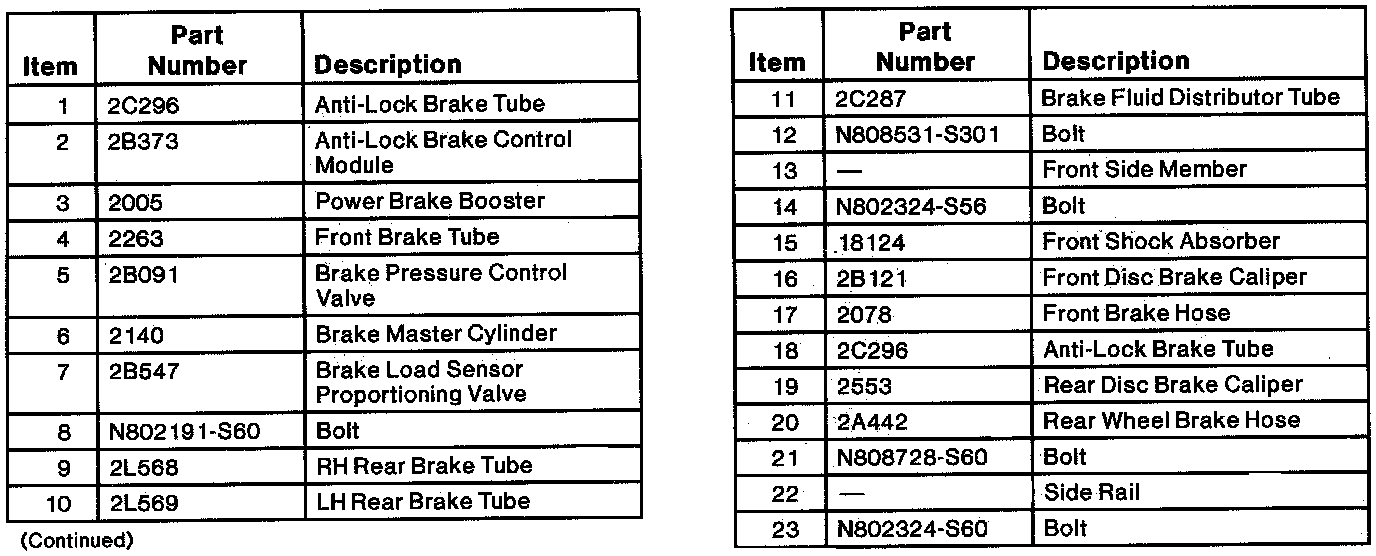

Brake Hydraulic Components. Sedan. Part 2 Of 2:
