Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> System Diagram >> Rear >> Station Wagon

Station Wagon

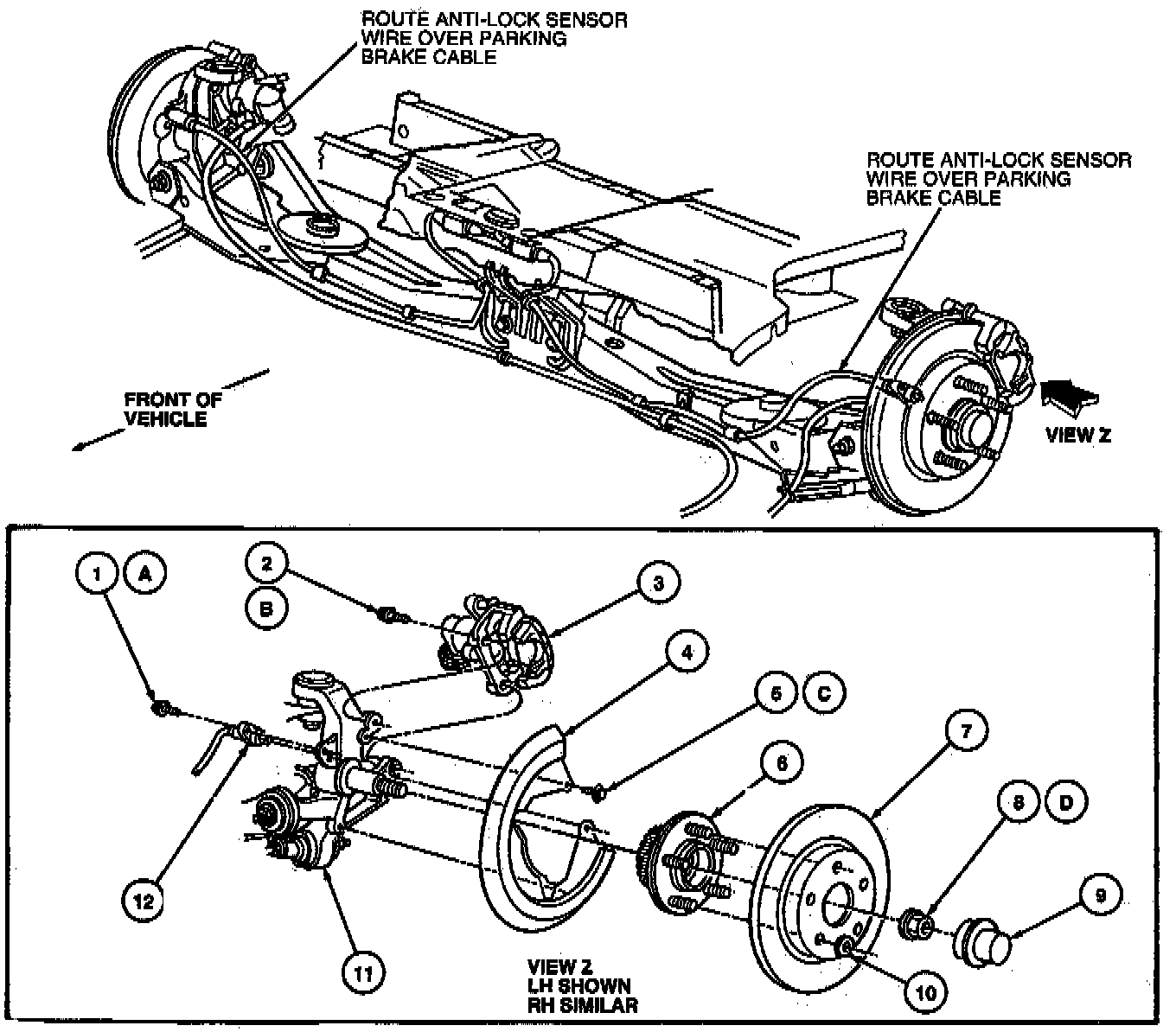

Rear Disc Brakes, Wagon (Part 1 Of 2):

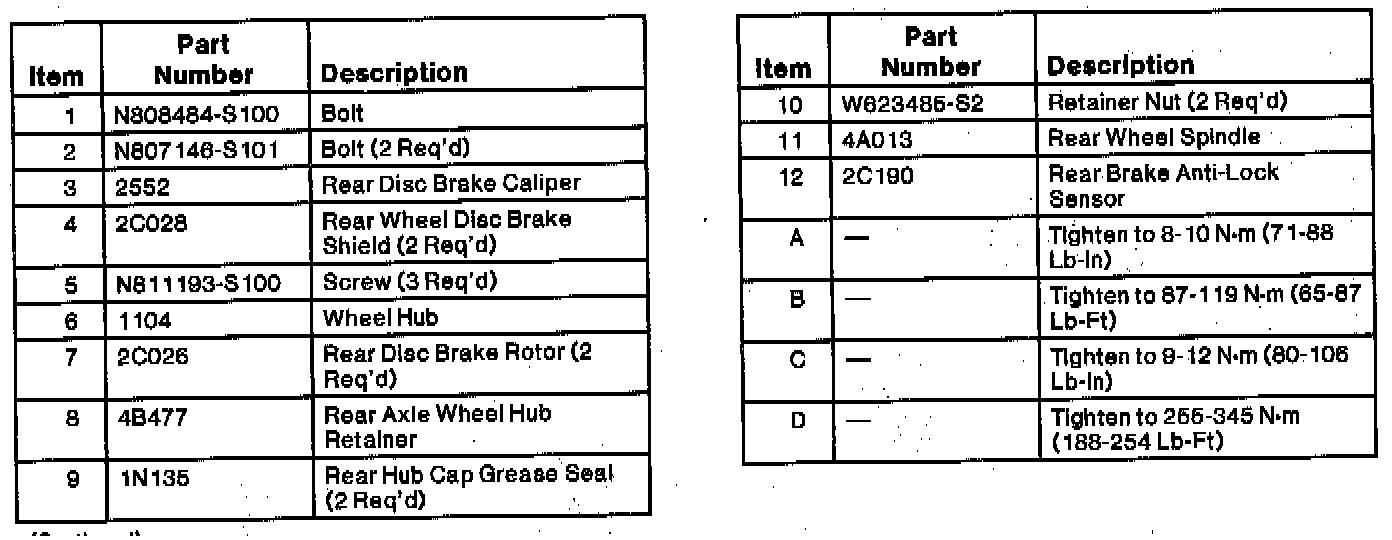

Rear Disc Brakes, Wagon (Part 2 Of 2):
