Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Brake Caliper >> Rear

Rear

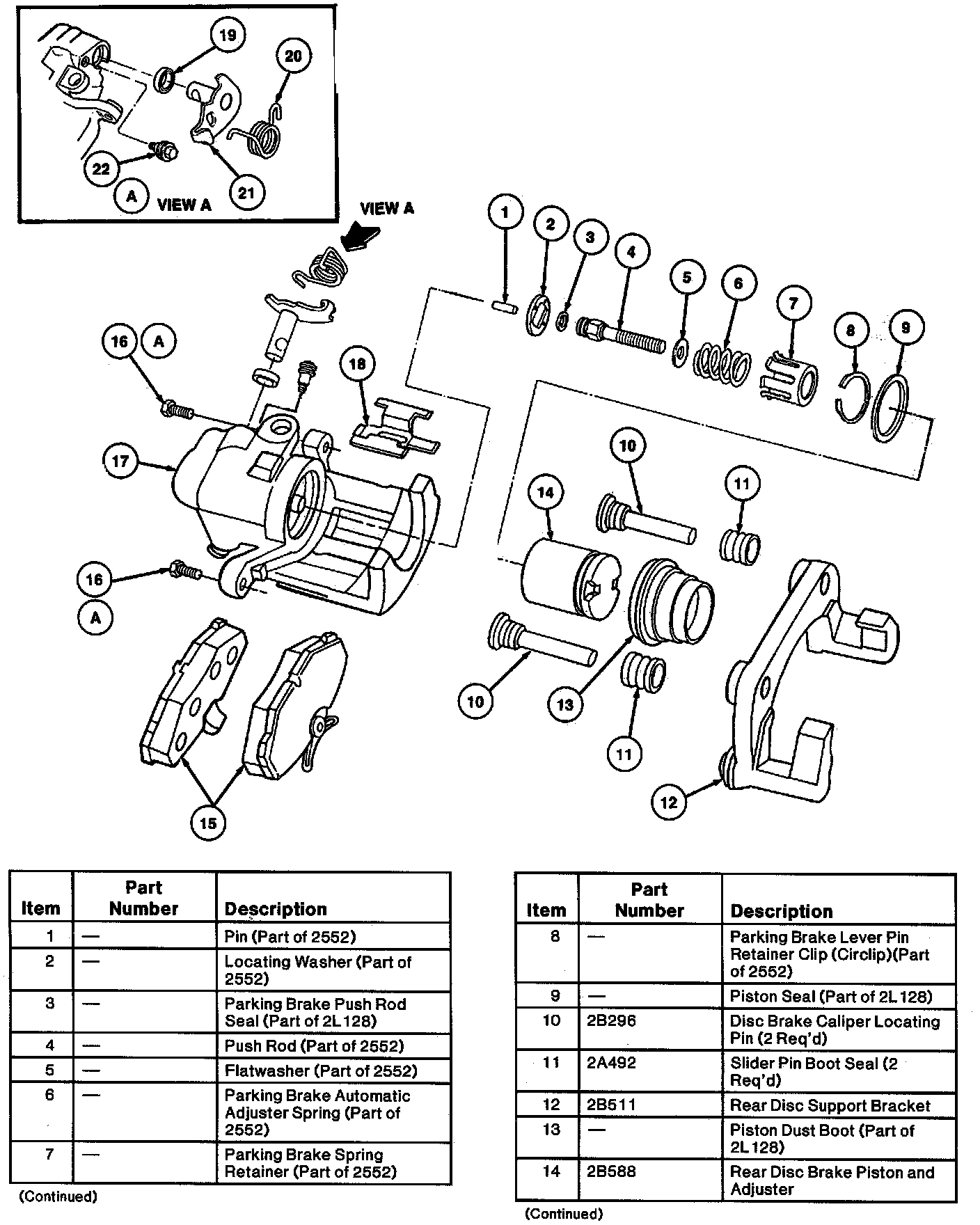

Rear Brake Caliper (Part 1 Of 2):

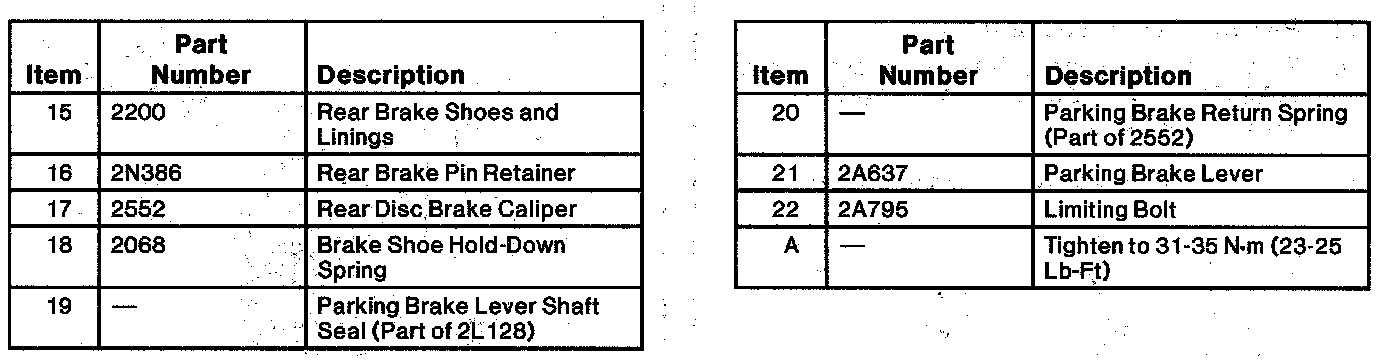

Rear Brake Caliper (Part 2 Of 2):
